When performing high-precision inspections—whether checking a watch movement for microscopic debris or analyzing a hallmark on an antique ring—visual consistency across the entire lens is paramount. A common frustration with standard magnifiers is the “fish-eye” effect, where the center is sharp, but the edges appear warped or blurry.
This optical defect is primarily caused by spherical aberration and geometric distortion. To solve this, specialized Aplanatic Lenses have become the professional standard for high-stakes precision work.

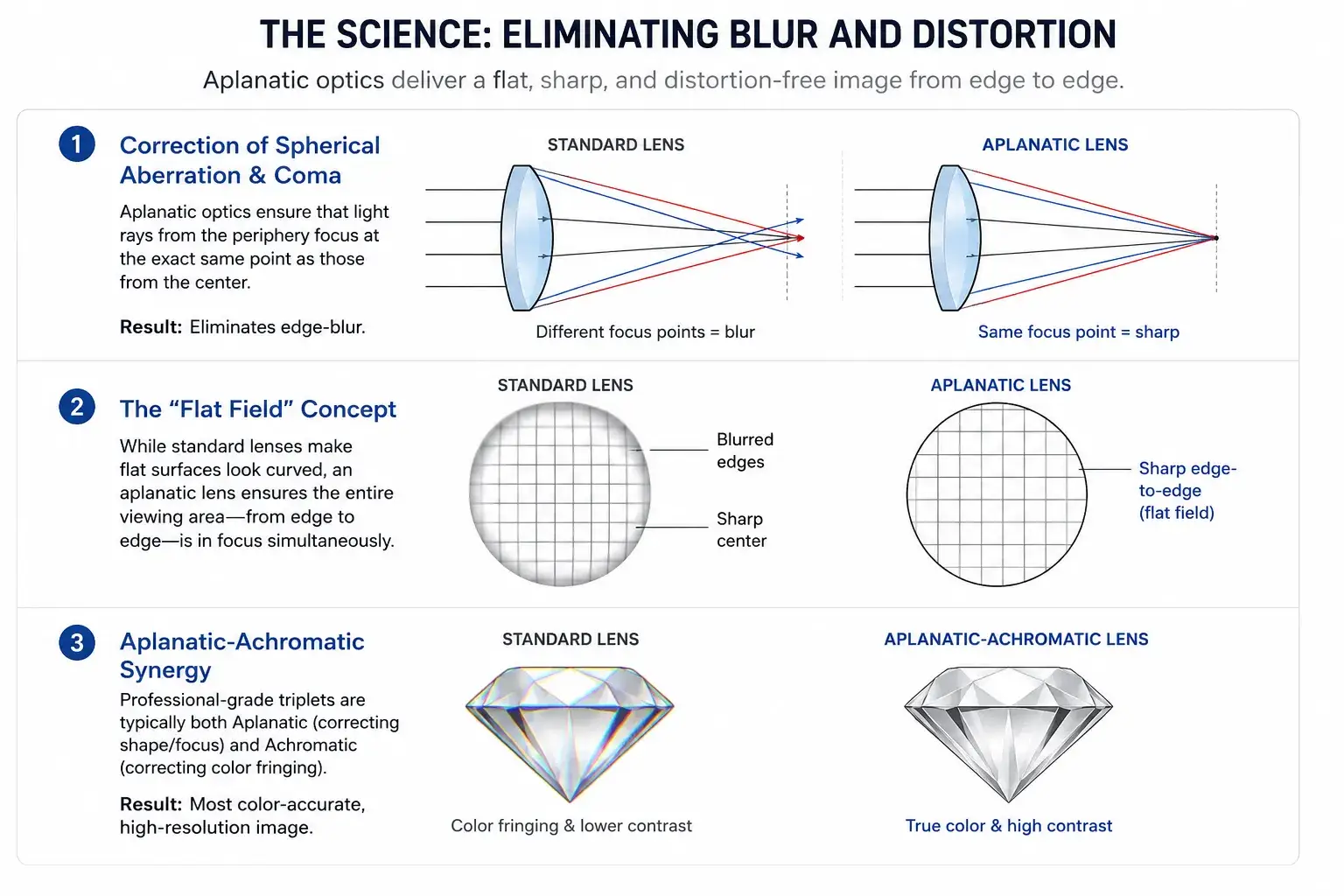

The Science: Eliminating Blur and Distortion
Standard spherical lenses are naturally limited by their geometry. Because the curvature is uniform, light rays passing through the edges of the lens refract at different angles than those passing through the center.
An Aplanatic Lens system is engineered to correct these specific errors:
- Correction of Spherical Aberration & Coma: Aplanatic optics ensure that light rays from the periphery focus at the exact same point as those from the center. This eliminates the “edge-blur” common in cheaper magnifiers.
- The “Flat Field” Concept: The primary benefit is a perfectly flat field of view. While standard lenses make flat surfaces look curved, an aplanatic lens ensures the entire viewing area—from edge to edge—is in focus simultaneously.
- Aplanatic-Achromatic Synergy: Professional-grade triplets are typically both Aplanatic (correcting shape/focus) and Achromatic (correcting color fringing). This combination provides the most color-accurate, high-resolution image possible.

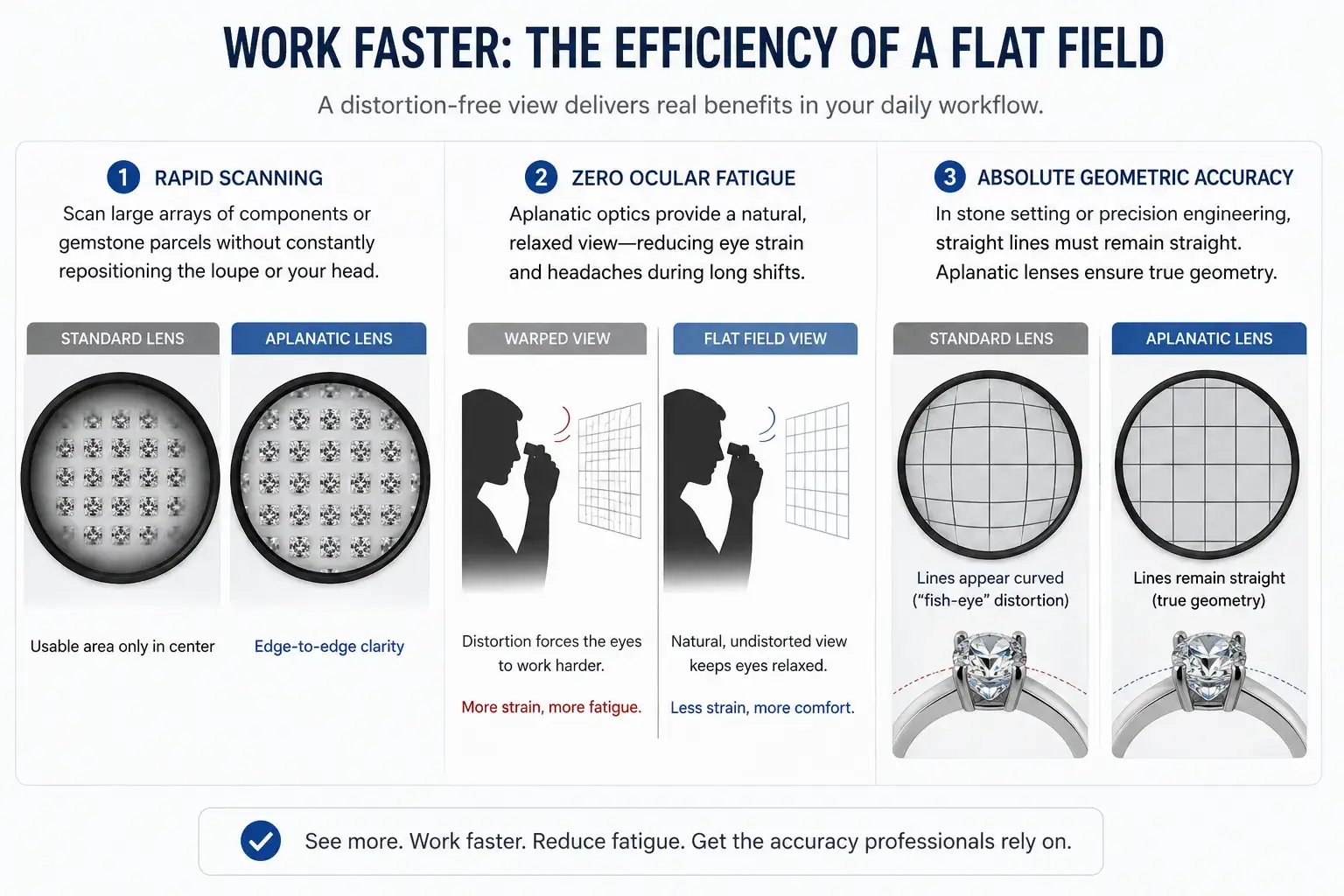

Work Faster: The Efficiency of a Flat Field
For a craftsman or laboratory technician, a distortion-free field of view provides immediate benefits to the daily workflow:
- Rapid Scanning: Users can scan large arrays of components or gemstone parcels without the need to constantly reposition the loupe or their head.
- Zero Ocular Fatigue: A warped lens forces the eye muscles to work harder as they attempt to process distorted images. Aplanatic optics allow for a natural, relaxed viewing experience, significantly reducing headaches and eye strain during long shifts.
- Absolute Geometric Accuracy: In stone setting or precision engineering, straight lines must remain straight. Aplanatic lenses ensure that the geometry of the piece is never misrepresented by the lens’s curvature.
Technical Comparison: Aplanatic vs. Standard Optics
| Feature | Aplanatic Loupe (Professional) | Standard Loupe (Economy) |
| Edge Clarity | Edge-to-Edge Sharpness | Center-only focus; Blurry edges |
| Image Geometry | Near Zero Distortion (Flat) | Significant “Fish-eye” effect |
| Usable Field | 100% of Lens Diameter | ≈ 50% Usable center |
| Inspection Speed | High (No constant re-centering) | Low (Requires constant repositioning) |
Top Recommendations for Flat-Field Clarity
As an authorized supplier and specialist in precision instrumentation, we offer high-performance optics from the world’s most trusted brands. Below are our top-tier recommendations for guaranteed aplanatic-achromatic performance:
1. Zeiss D40 & D36 Loupe
Engineered by the world’s leading optics manufacturer in Germany, Zeiss pocket loupes embody the tradition of precision optical engineering, offering high-contrast images with zero color distortion.
- Zeiss D40 Professional (10X): Features a 13mm Aplanatic-Achromatic triplet lens equipped with Zeiss’s proprietary T* Anti-Reflective Coating to minimize glare. It is the ideal choice for GIA-standard diamond grading and professional gemstone identification.
- Zeiss D36 Universal (3X/6X/9X): A versatile dual-lens system featuring a wider 22mm lens diameter, designed for routine appraisal, coin/stamp collecting, and multi-purpose field observation.

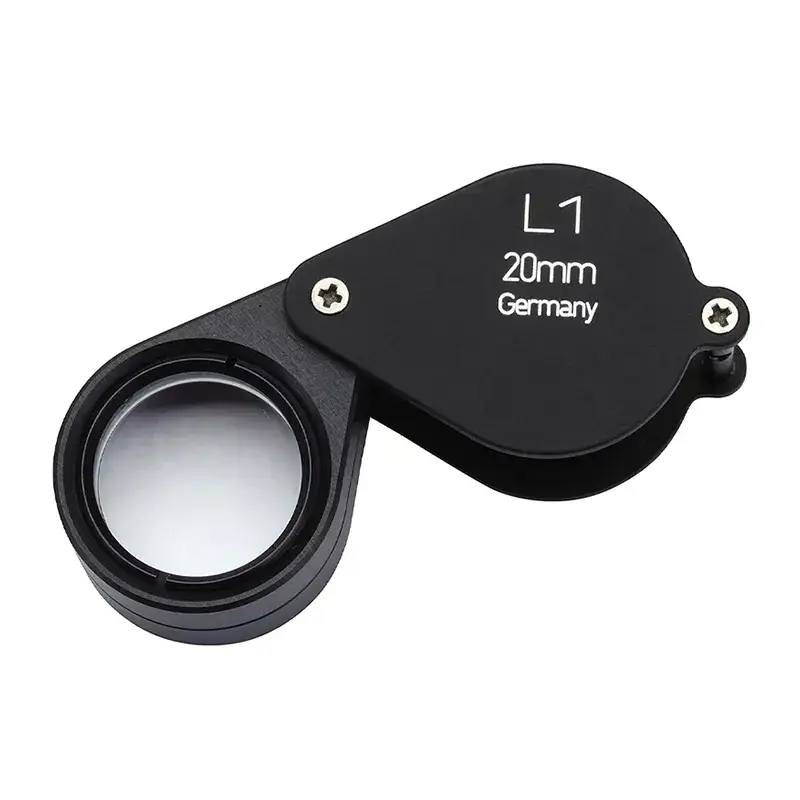

2. Triplet Loupe Schneider L1
The Harald Schneider® L1 is engineered specifically to meet the exacting standards of professional diamond graders and gemologists, providing a distortion-free, razor-sharp image.
- Core Technology: Features a fully-corrected, achromatic and aplanatic triplet lens custom-made in-house from the highest-quality German optical glass, layered with an anti-reflective coating.
- Performance: The large 20mm lens area provides the widest field of vision and depth of focus available, housed in a durable metal chassis (2.46 oz) built for daily professional use.
- Best For: Accurate diamond grading, authentic identification, and high-stakes purchasing decisions.
3. Nikon 10X Triplet Loupe
A rare combination of peerless clarity and unrivaled optical quality from Japan’s leader in optics, designed to eliminate both spherical distortion and color aberrations.
- Core Technology: The 13mm orthoscopic compound lens delivers an exceptional high definition of more than 63 lines per millimeter.
- Performance: Images remain perfectly sharp at the edges. The lightweight black plastic frame is designed to eliminate light reflections that can alter stone color, and features a cleverly angled lanyard eyelet so the loupe won’t turn sideways when worn.
- Best For: Efficient, clear examination of small details on jewelry, coins, and stamps in demanding environments.
Frequently Asked Questions
Q: What is the main difference between Aplanatic and Achromatic?
A: Achromatic lenses correct color (preventing rainbow edges), while Aplanatic lenses correct shape and focus (preventing blur and distortion). Professional loupes are usually both.
Q: Why do watchmakers specifically need aplanatic lenses?
A: Watch movements are wide and multi-layered. A flat field allows a watchmaker to see the entire movement in focus without moving the loupe constantly.
Q: How can I test if my loupe is truly aplanatic?
A: Look at a piece of graph paper through the lens. If the grid lines remain perfectly straight and sharp all the way to the rim, the lens is aplanatic.
