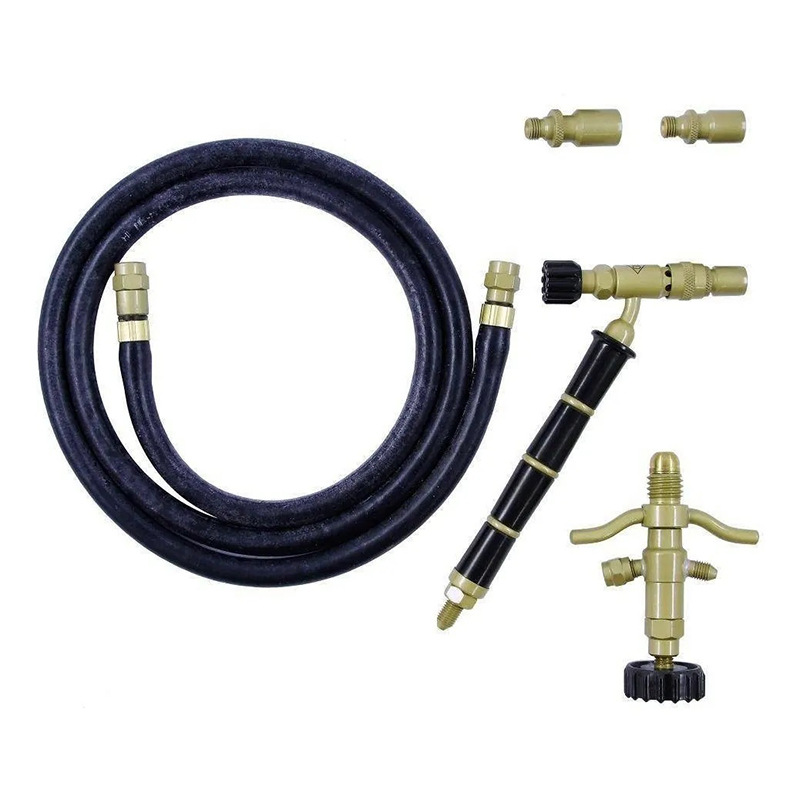

Full kit view, including the torch handle, hose, regulator, and three interchangeable nozzles laid out on a white surface
A top-down view of the welding kit components, showing the torch handle, regulator, and hose arranged on a white background

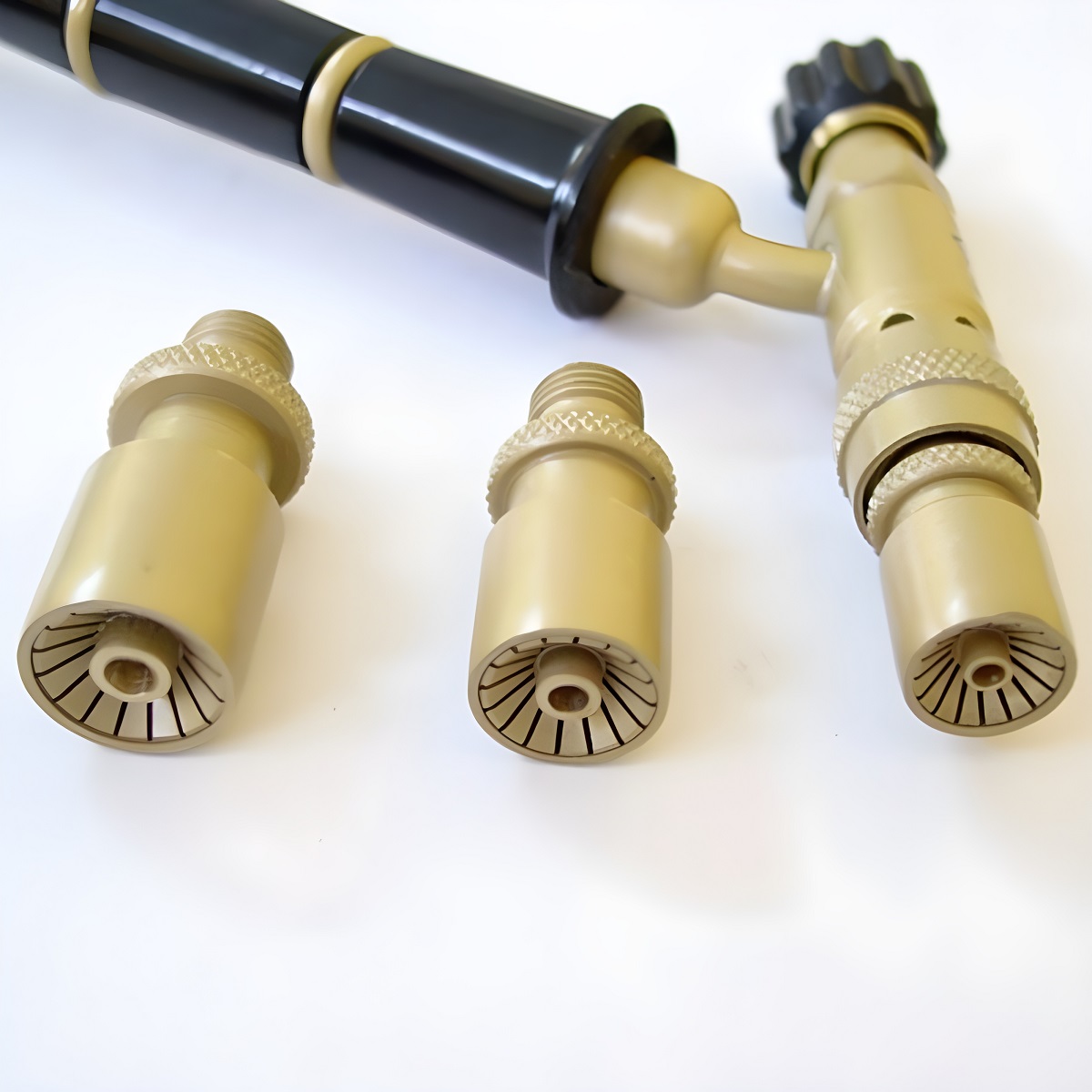

A lower angle view of the assembled torch handle with one nozzle attached, alongside the other two detached nozzles

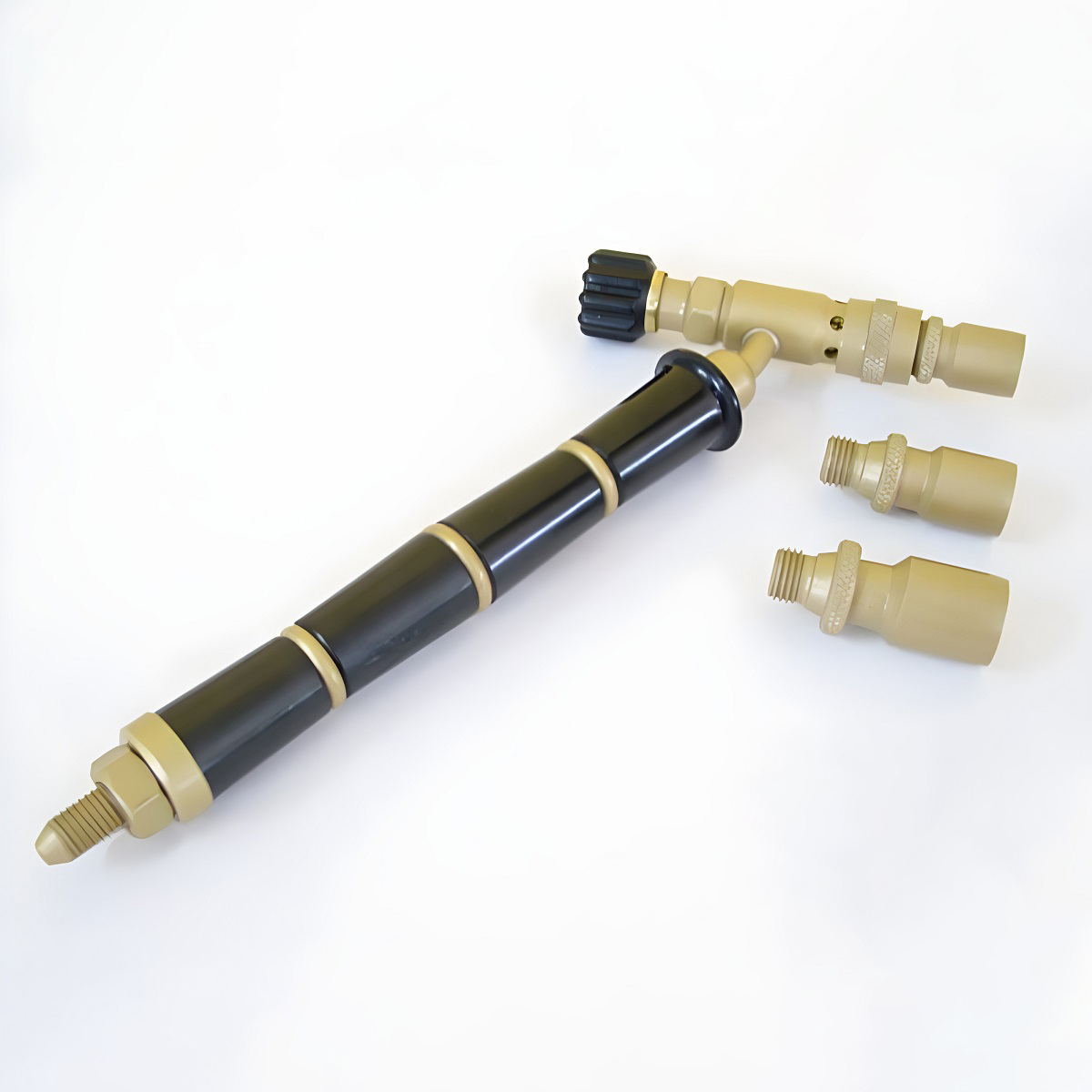

The assembled torch handle and two of the detached nozzles shown from a side perspective, highlighting their different lengths

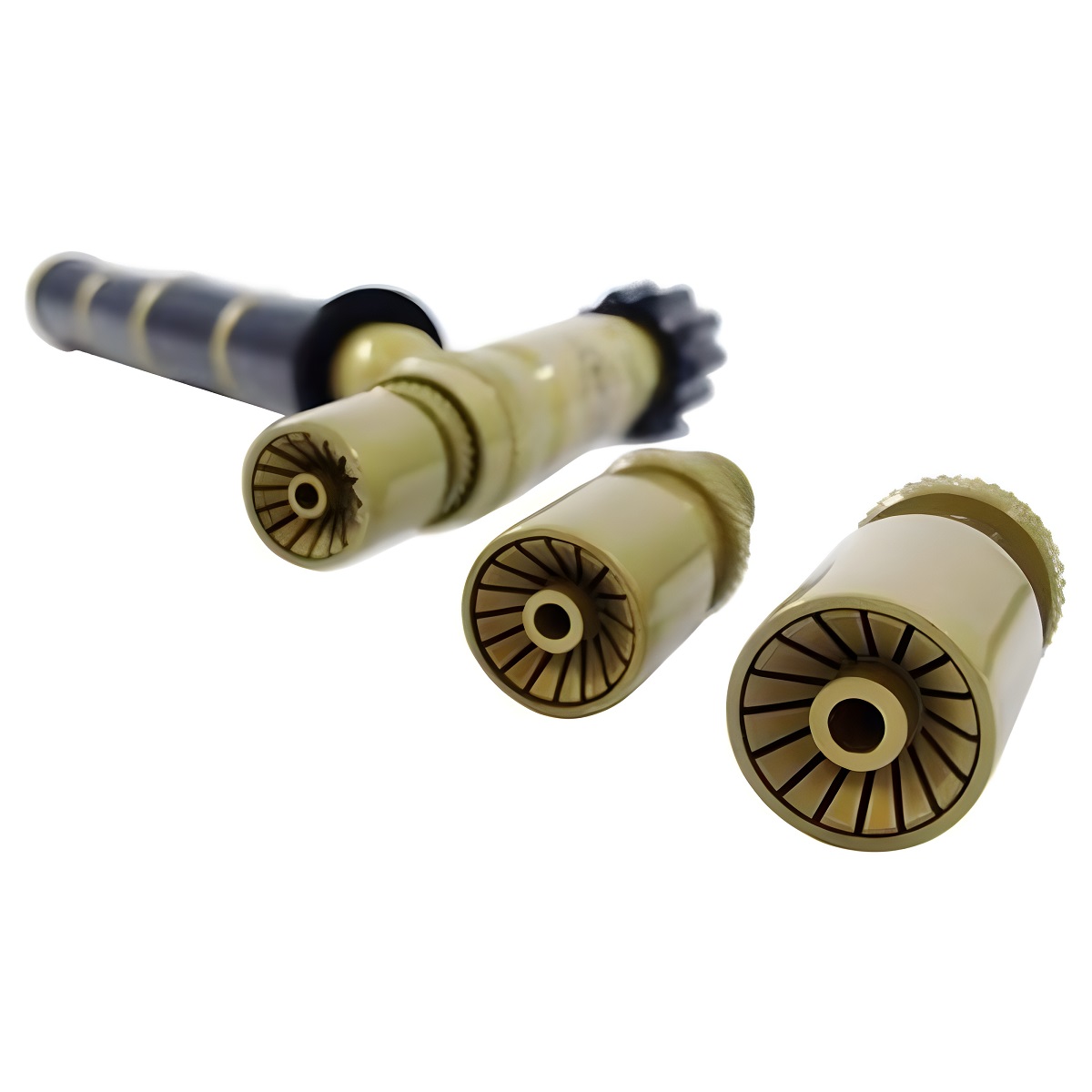

Close-up of the three different-sized torch nozzles, showing the fine details of their tips and internal design

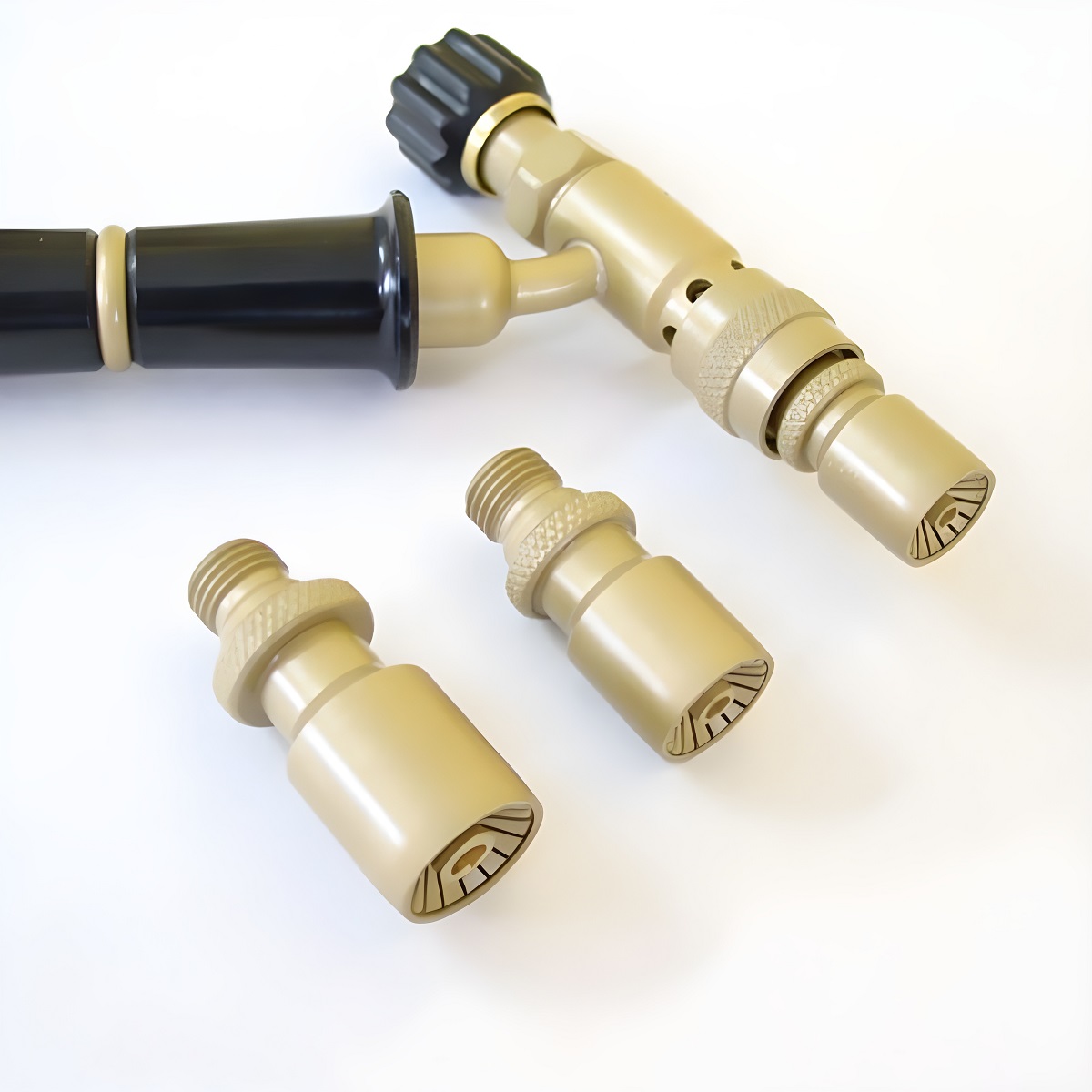

Close-up of the torch handle and the three nozzles from another perspective, highlighting their threaded connections and knurled grips

ORCA® M75 M75CPL Jewelry Welding Torch Kit with 3 Nozzles

Brand Name: ORCA

Place of Origin: Brazil

Material: Copper

Weight: 750g

Application: Jewelry Welding



$312.82

Get Wholesale Price
Category
Product name
ORCA® MAÇARICO ORCA M75 M75CPL KIT
Includes
M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
Regulator
Fits on BBQ style refillable propane tanks and has 2 outputs allowing 2 devices to be run at the same time.
Item code
HWAC00281
Model
M75 CPL
Brand
ORCA
Place of origin
Brazil
Material
Brass + Bakelite
Nozzle diameter
2 mm /2.6 mm /3.8 mm
Maximum temperature
1200 – 1300 ºC

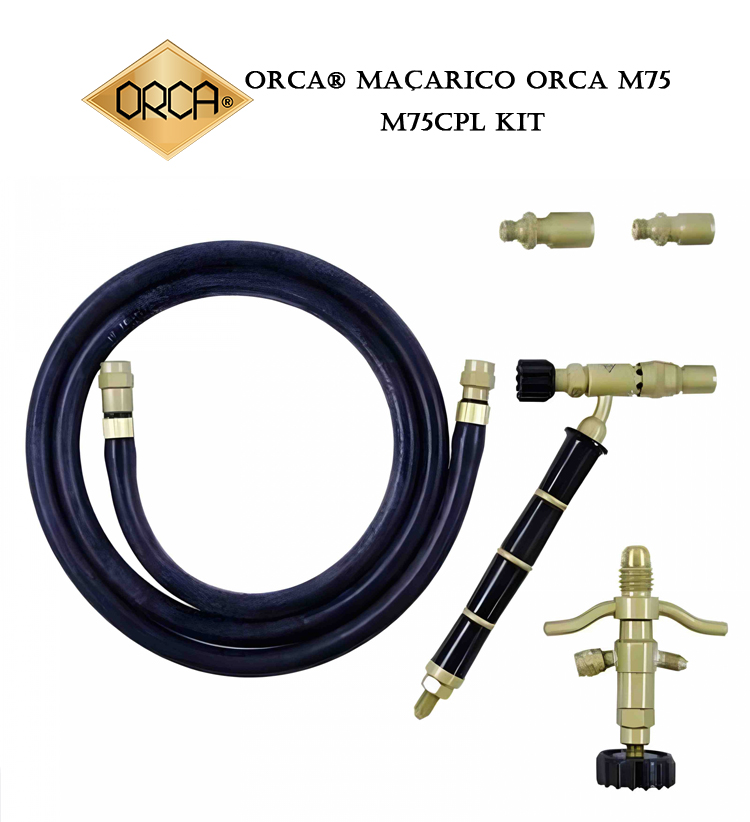

A complete kit view of the ORCA® M75CPL, including the torch, hose, regulator, and three nozzles on a white background

Description

The ORCA MOD-75 torch is compact, easy to handle and completely safe to use. Since it does not require compressed air, it is ideal for work that requires continuous transport of the equipment, ease of handling and easy storage. Its basic configuration consists of a body, three nozzles (small, medium and large), hose and a valve for coupling to gas tanks. The MOD-75 torch works with direct pressure, not requiring any pressure regulator, which makes it simple and without any additional installation costs.

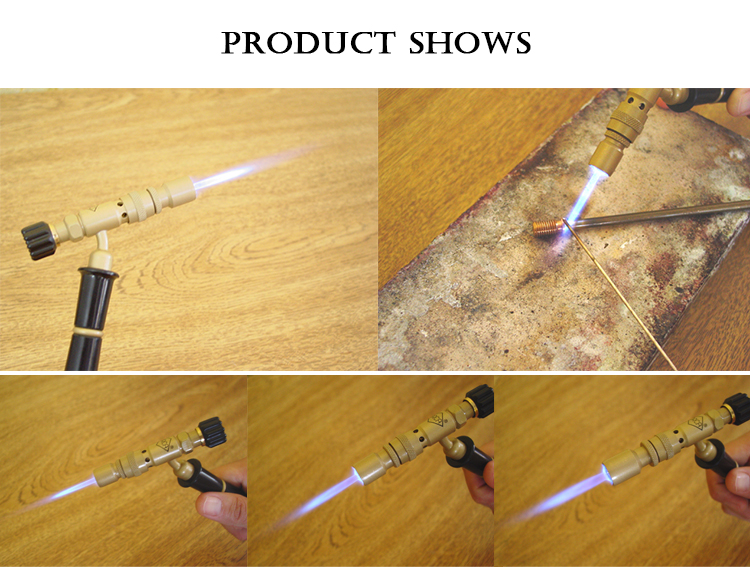

A five-panel image showing the torch in use, with a blue flame, and someone's hand holding and operating the tool

High Efficiency

This torch is especially recommended for medium and low temperature welding work, small precious metal castings or non-precious metal castings for use in fine metallurgy, glassworks, general repairs, etc.

It makes significant use of the calorific potential of LPG (liquefied petroleum gas), thus making heating of the work material quick.

The MOD-75 torch works with direct pressure, requiring no pressure regulator, which makes it simple and without any additional installation costs.

The main feature of this torch, which makes it very suitable for precise work, is the exclusive needle-injector assembly. This system allows the gas flow to be regulated without losing its exit speed, thus making it possible to obtain a very small but intense flame or a powerful but also intense flame.

In conventional systems, the gas flow through the injector depends on the size of its orifice, and when a small flow is regulated through it, the gas speed is low, thus not providing an intense flame at the nozzle.

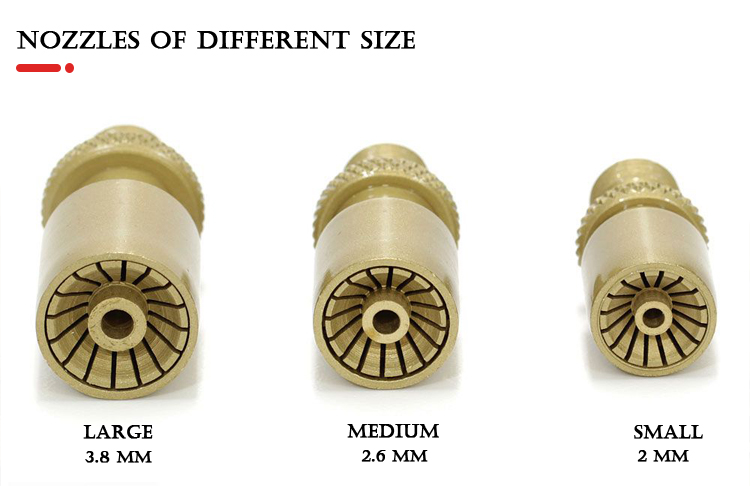

A clear, front-facing view of the three nozzles of different sizes: large (3.8mm), medium (2.6mm), and small (2mm)

Sizes and properties of tips for a jewelry burner:
tip
flame diameter (mm)
flame length (mm)
max flame temperature °C
small
2.0
15 – 50
1200
medium
2.6
20 – 60
1250
big
3.8
25 – 70
130

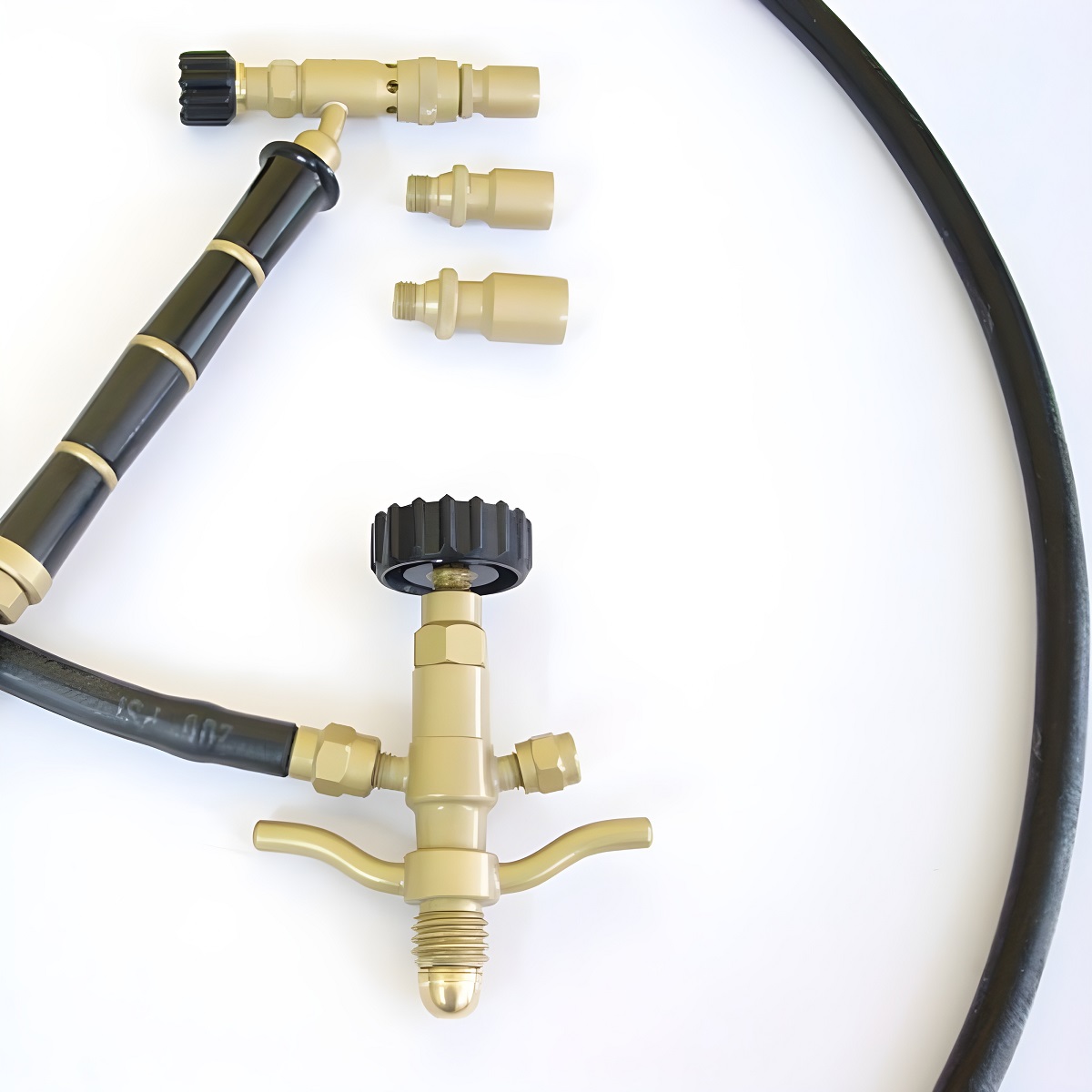

A top-down view of the welding kit components, showing the torch handle, regulator, and hose arranged on a white background

Excellent Quality

The gas injection system is highly precise, providing perfect regulation without flame oscillations. The complete equipment includes a special hose for LPG, sized for total safety and convenience. At its ends we have connection terminals, one of the ends is rotatable (even when tightened), providing total freedom of movement with the torch. It also comes with a valve for coupling to gas tanks, which is manufactured using the same manufacturing criteria as the torches and is available in several coupling systems. We took special care with the matte finish to avoid unwanted reflections and varnished to maintain its appearance.

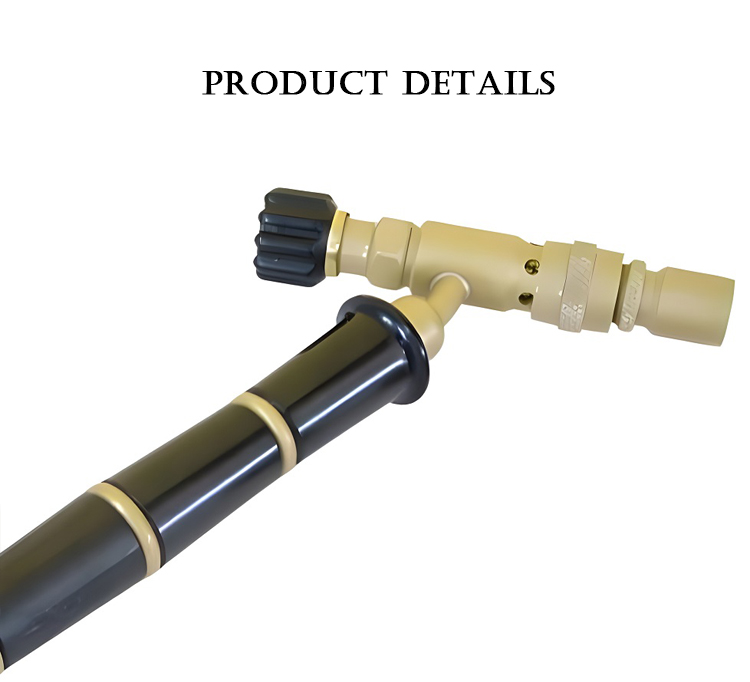

A close-up view of the torch handle's joint and black adjustment knob, highlighting the connection between the two parts

Its body and moving parts are made of brass, which ensures excellent impact resistance. Its nozzles or burners, patented by us, provide a concentric flame with excellent thermal value. The handle is made of bakelite, offering great thermal insulation.

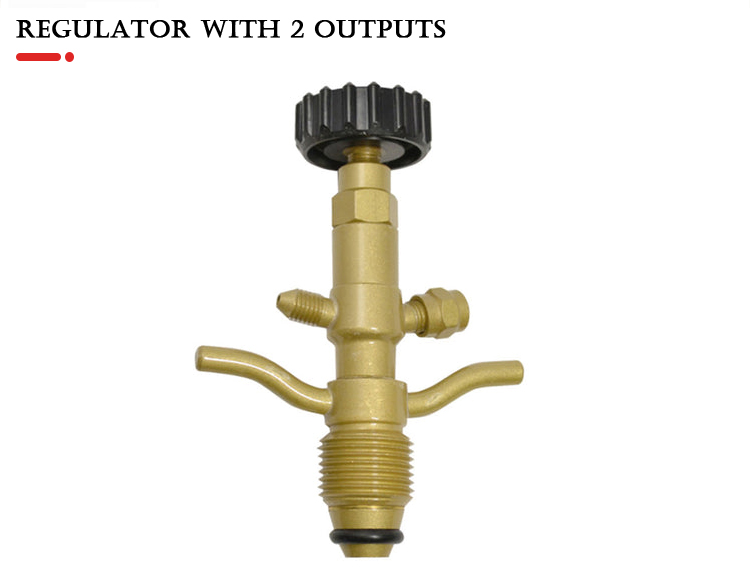

Close-up of the brass regulator with two outputs, featuring a black knob for adjustment, shown against a white background

EZ Torch Refillable Propane Tank Regulator with 2 Outputs

This new regulator for the EZ Torch Orca Torch fits on BBQ style refillable propane tanks and has 2 outputs allowing 2 devices to be run at the same time.

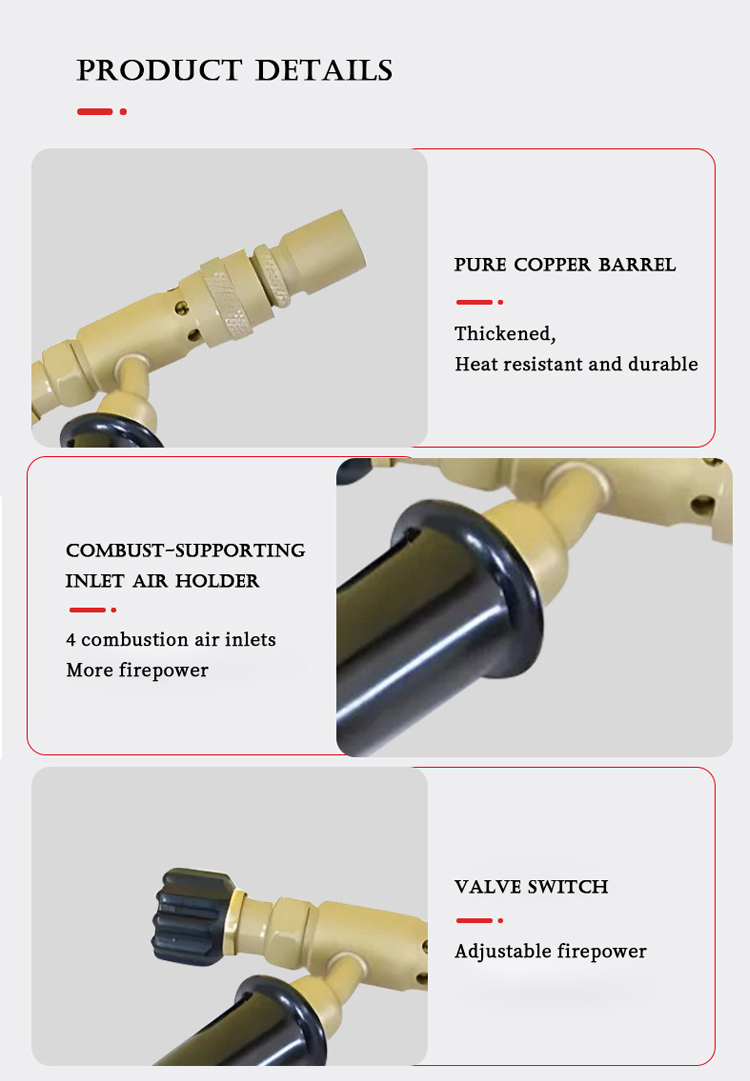

A detailed breakdown of the product, highlighting the pure copper barrel, air inlets for combustion, and the valve switch

The product packaging for the ORCA M75CPL mini welding torch showcasing the torch and its three different sized nozzles
