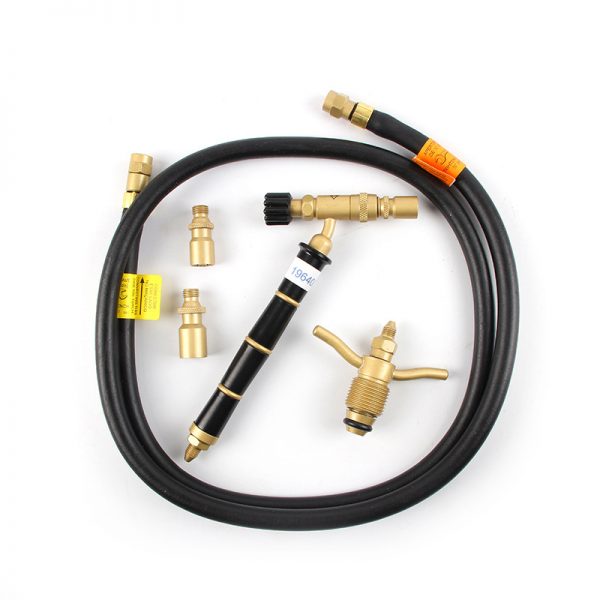

The ORCA M75 CPA welding torch kit with the torch, two nozzles, a regulator, and a hose, arranged in a circle on a white background

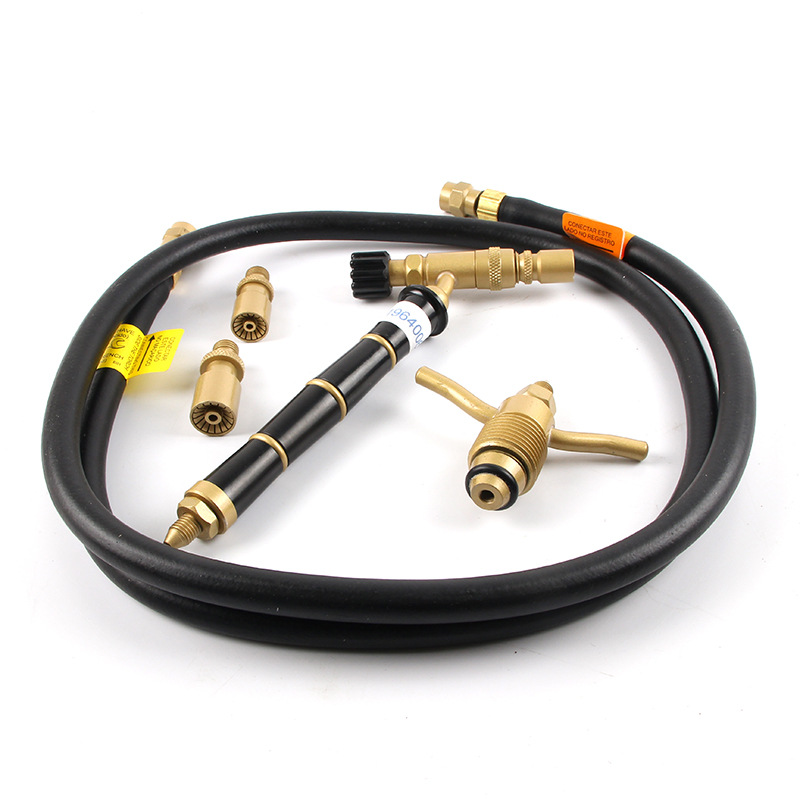

The ORCA M75 CPA welding torch kit, including the torch with a black hose and accessories, on a white background
The ORCA M75 CPA welding torch kit, including the black-handled torch, two nozzles, and a regulator, on a white background

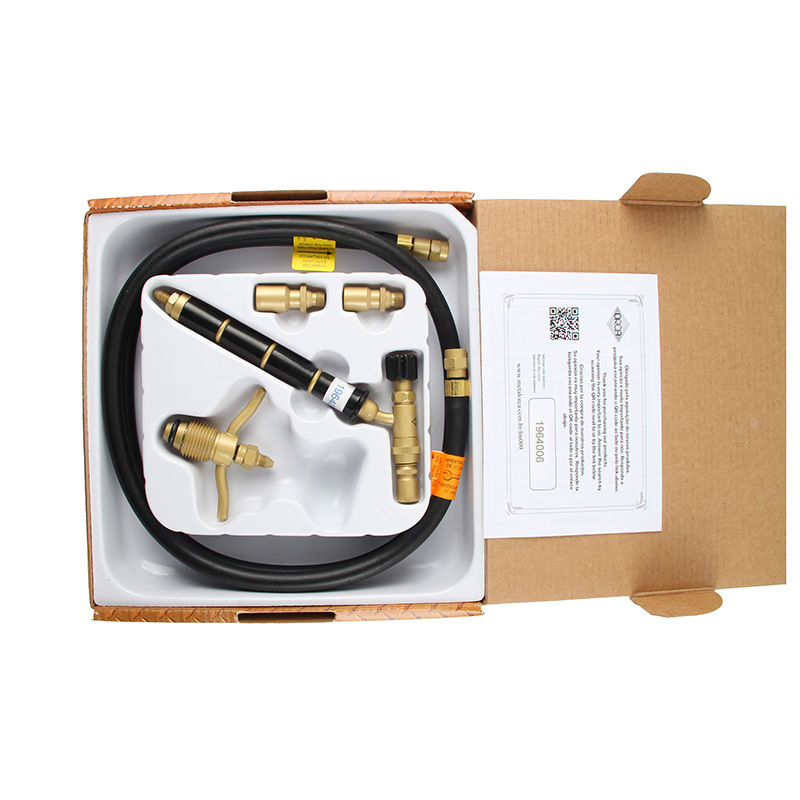

The open box of the ORCA M75 CPA welding torch kit, showing the torch, hose, accessories, and product manual inside
The product box for the ORCA M75 CPA welding torch kit, with product information in Portuguese and images of welding applications
A close-up of the ORCA M75 CPA welding torch, showing the torch head, black adjustment knob, and two extra nozzles

ORCA® M75 M75CPA Torch LPG Gas Welding Torch Kit

Brand Name: ORCA

Place of Origin: Brazil

Material: Copper

Weight: 750g

Application: Jewelry Casting

Use: For Necklace Making, For Bracelet Making, For Earring Making, For Ring Making, For Garment Making

$275.28

Get Wholesale Price
Category
Product name
ORCA® MAÇARICO ORCA M75 M75CPA KIT
Includes
M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
Regulator
Fits on BBQ style refillable propane tanks
Item code
HWAC00282
Model
M75 CPA
Brand
ORCA
Place of origin
Brazil
Material
Brass + Bakelite
Nozzle diameter
2 mm /2.6 mm /3.8 mm
Maximum temperature
1200 – 1300 ºC

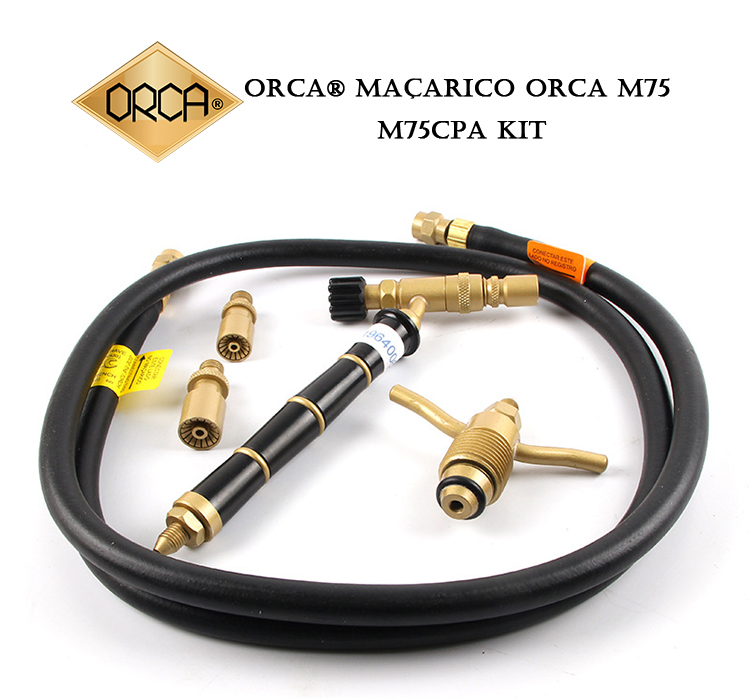

A complete kit of the ORCA M75CPA torch, featuring the torch handle, hose, regulator, and three different nozzle tips

Description

The ORCA MOD-75 torch is compact, easy to handle and completely safe to use. Since it does not require compressed air, it is ideal for work that requires continuous transport of the equipment, ease of handling and easy storage. Its basic configuration consists of a body, three nozzles (small, medium and large), hose and a valve for coupling to gas tanks. The MOD-75 torch works with direct pressure, not requiring any pressure regulator, which makes it simple and without any additional installation costs.

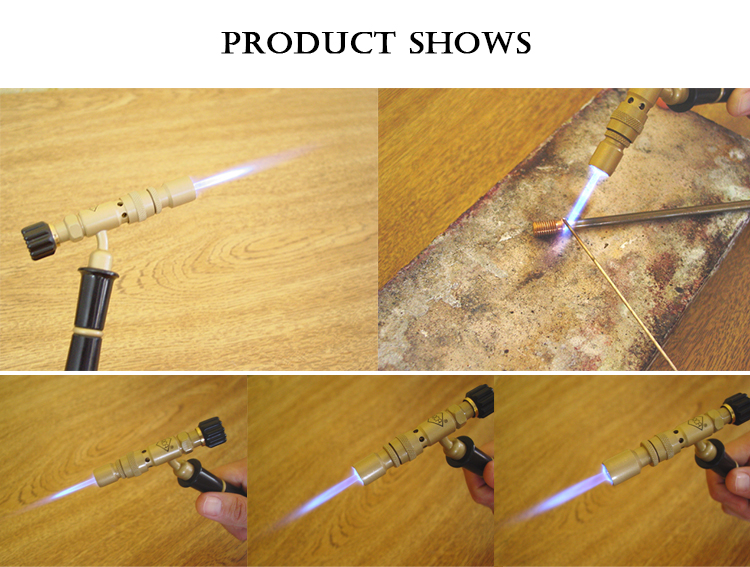

A montage showing the ORCA M75 CPA torch in use, demonstrating its adjustable blue flame for various applications like soldering

High Efficiency

This torch is especially recommended for medium and low temperature welding work, small precious metal castings or non-precious metal castings for use in fine metallurgy, glassworks, general repairs, etc.

It makes significant use of the calorific potential of LPG (liquefied petroleum gas), thus making heating of the work material quick.

The MOD-75 torch works with direct pressure, requiring no pressure regulator, which makes it simple and without any additional installation costs.

The main feature of this torch, which makes it very suitable for precise work, is the exclusive needle-injector assembly. This system allows the gas flow to be regulated without losing its exit speed, thus making it possible to obtain a very small but intense flame or a powerful but also intense flame.

In conventional systems, the gas flow through the injector depends on the size of its orifice, and when a small flow is regulated through it, the gas speed is low, thus not providing an intense flame at the nozzle.

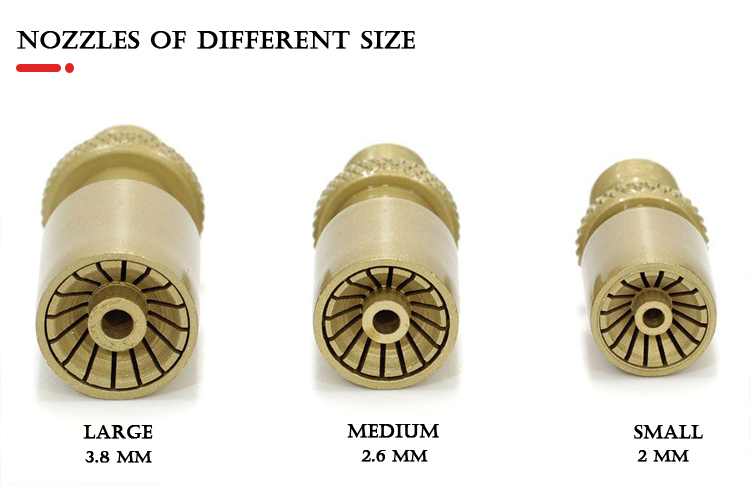

A close-up shot of the three different-sized pure copper nozzles included with the ORCA M75 torch: small (2mm), medium (2.6mm), and large (3.8mm)



Sizes and properties of tips for a jewelry burner:
tip
flame diameter (mm)
flame length (mm)
max flame temperature °C
small
2.0
15 – 50
1200
medium
2.6
20 – 60
1250
big
3.8
25 – 70
130

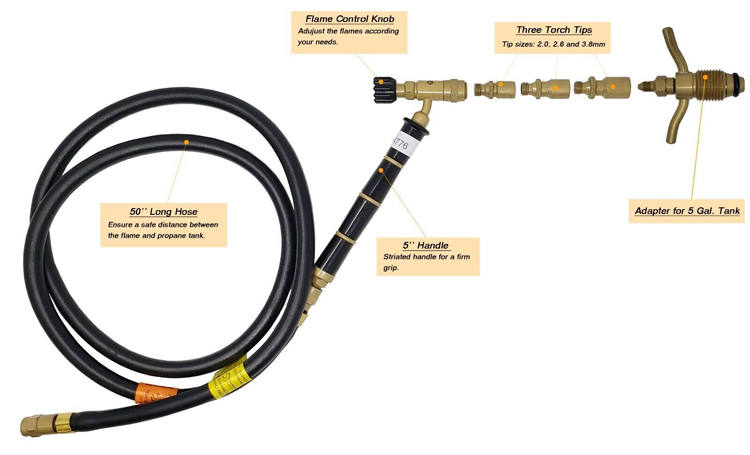

A detailed, annotated view of the ORCA M75 CPA torch kit, highlighting the 50-inch hose, handle, flame control knob, tips, and tank adapter



Excellent Quality

The gas injection system is highly precise, providing perfect regulation without flame oscillations. The complete equipment includes a special hose for LPG, sized for total safety and convenience. At its ends we have connection terminals, one of the ends is rotatable (even when tightened), providing total freedom of movement with the torch. It also comes with a valve for coupling to gas tanks, which is manufactured using the same manufacturing criteria as the torches and is available in several coupling systems. We took special care with the matte finish to avoid unwanted reflections and varnished to maintain its appearance.

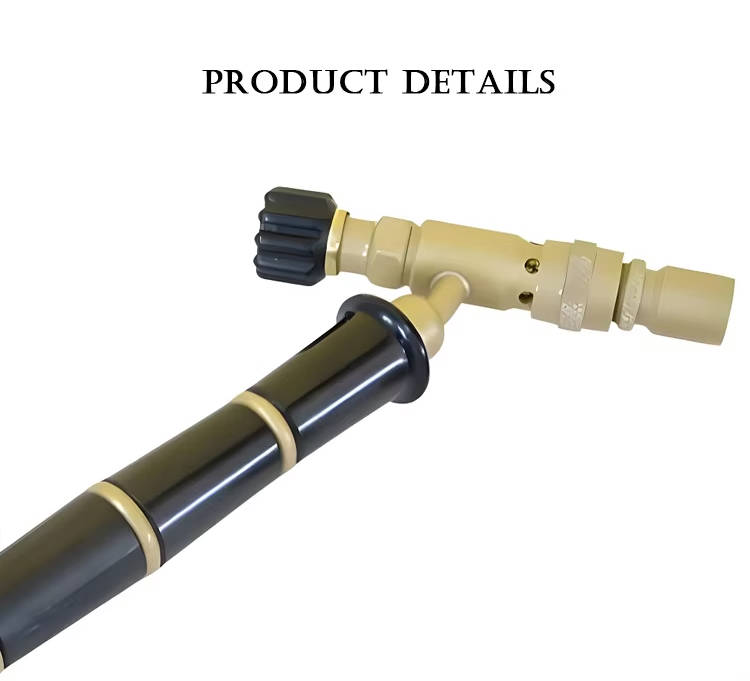

A-close-up-of-the-ORCA-M75-CPA-torch-showing-the-black-handle-the-metal-joint-and-the-flame-control-knob

Its body and moving parts are made of brass, which ensures excellent impact resistance. Its nozzles or burners, patented by us, provide a concentric flame with excellent thermal value. The handle is made of bakelite, offering great thermal insulation.

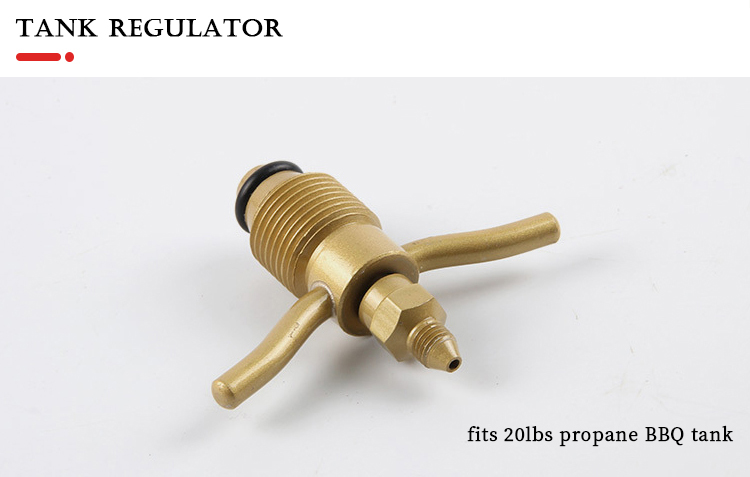

A close-up image of the tank regulator for the ORCA M75 CPA torch, showing that it is compatible with a 20lbs propane BBQ tank

The Orca Torch Tank Regulator for One 20lb Tank
Accessories for the Orca propane torch kit, the torch runs on propane

Product details for the ORCA M75 torch, showcasing the pure copper barrel, combust-supporting air holder, and the valve switch for flame control

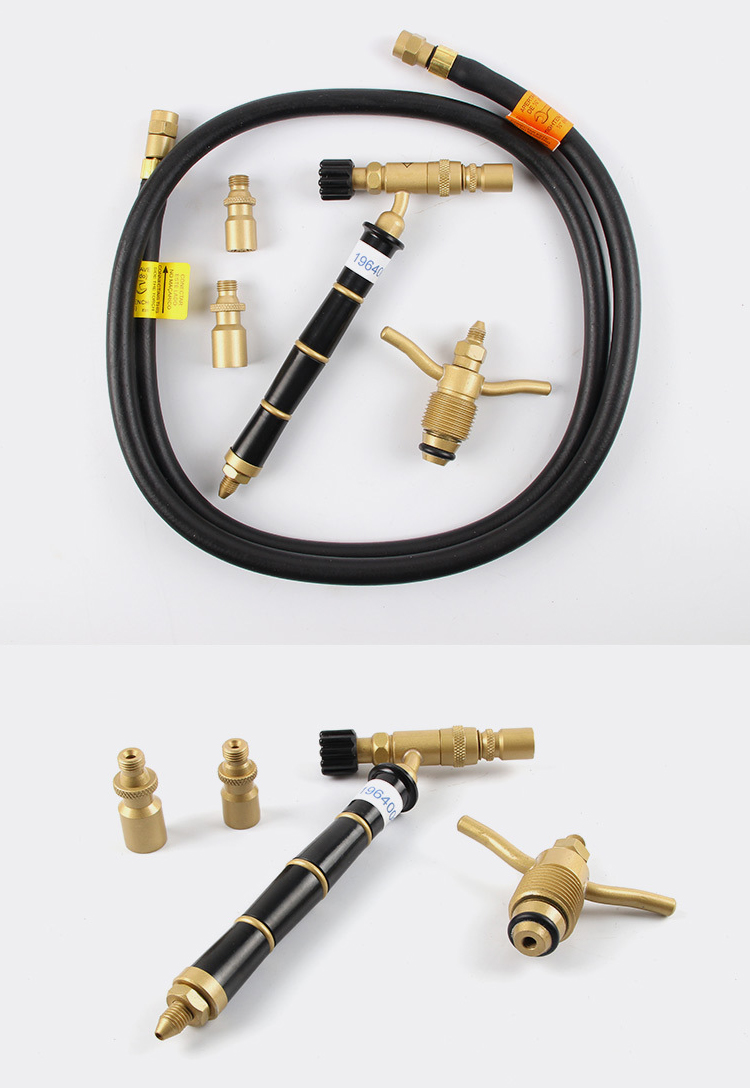

A top-down view of the ORCA M75 CPA torch kit components neatly arranged, showing the hose, handle, regulator, and multiple torch tips

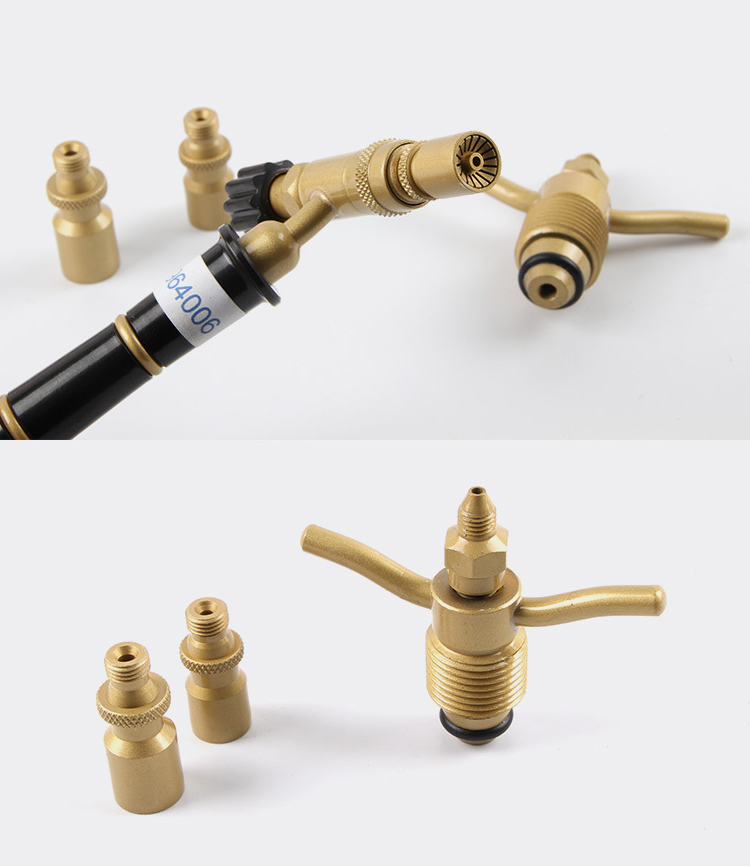

Two detailed views of the ORCA M75 CPA torch components, including the main torch assembly with a tip and the separate regulator and tips

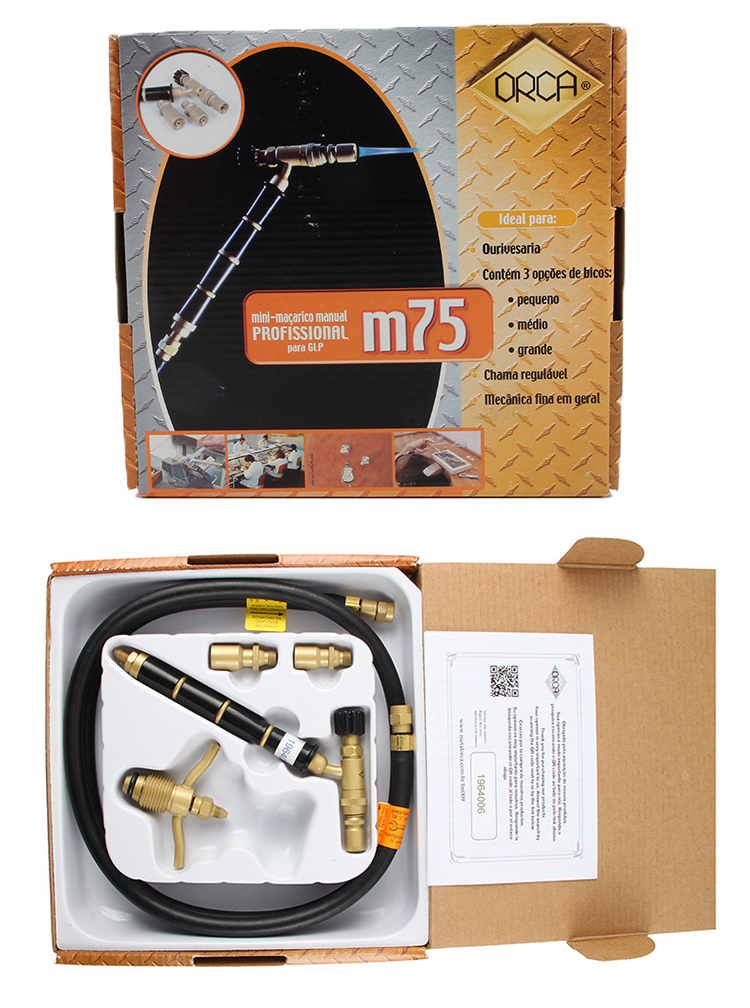

The ORCA M75 torch kit packaging, displaying the product box with a photo of the torch and its contents, including the manual
