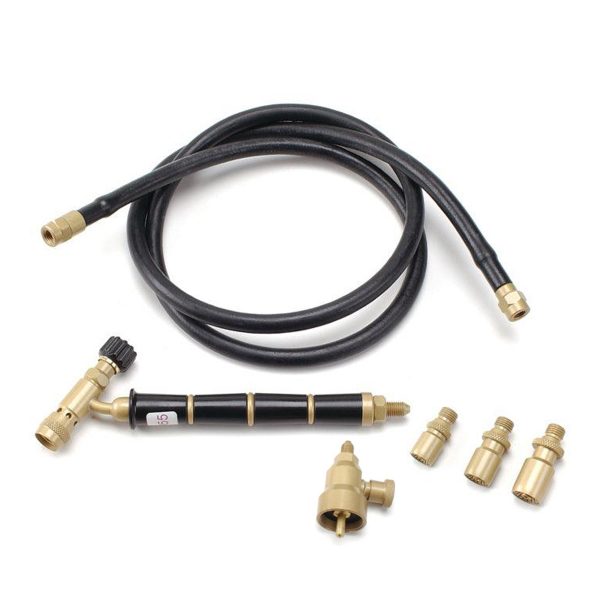

ORCA M75 CPR jewelry soldering torch kit with all components laid out on a white background, including the handle, hose, and nozzles
The ORCA M75 CPR torch kit and its components neatly arranged in a fitted box, showcasing its packaging and organization

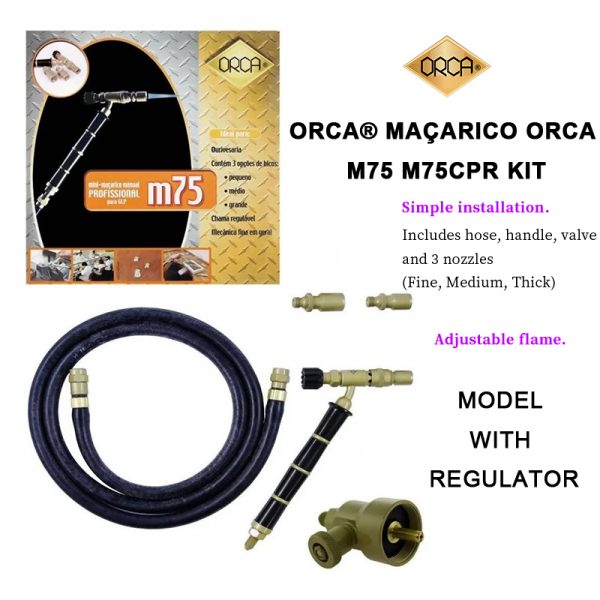

ORCA M75 CPR welding torch kit with Portuguese packaging text, highlighting features like simple installation and an adjustable flame

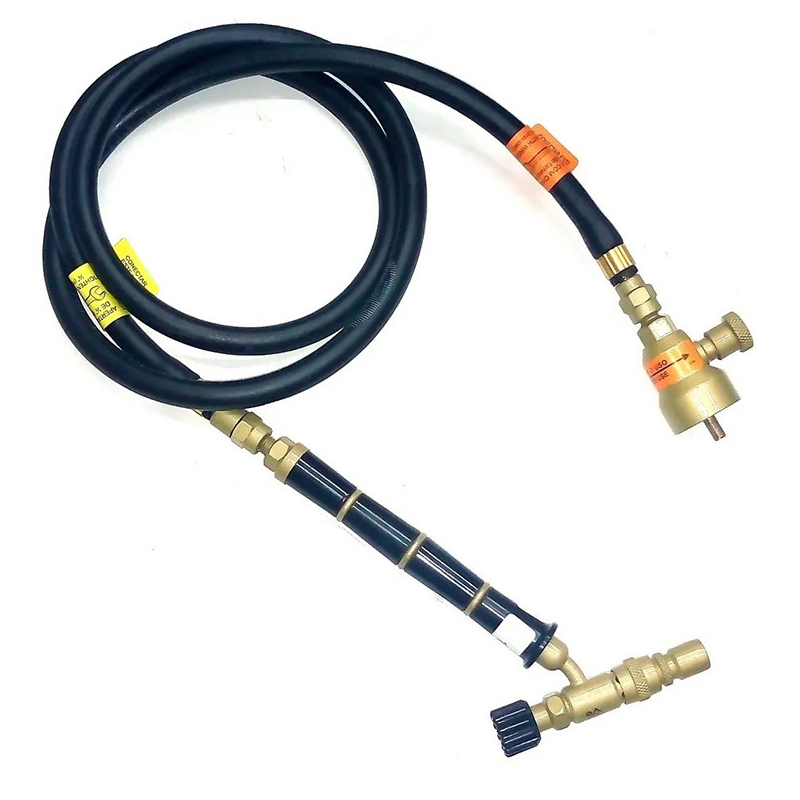

The ORCA M75 CPR soldering torch assembled with its hose and propane regulator, ready for jewelry work and precise tasks

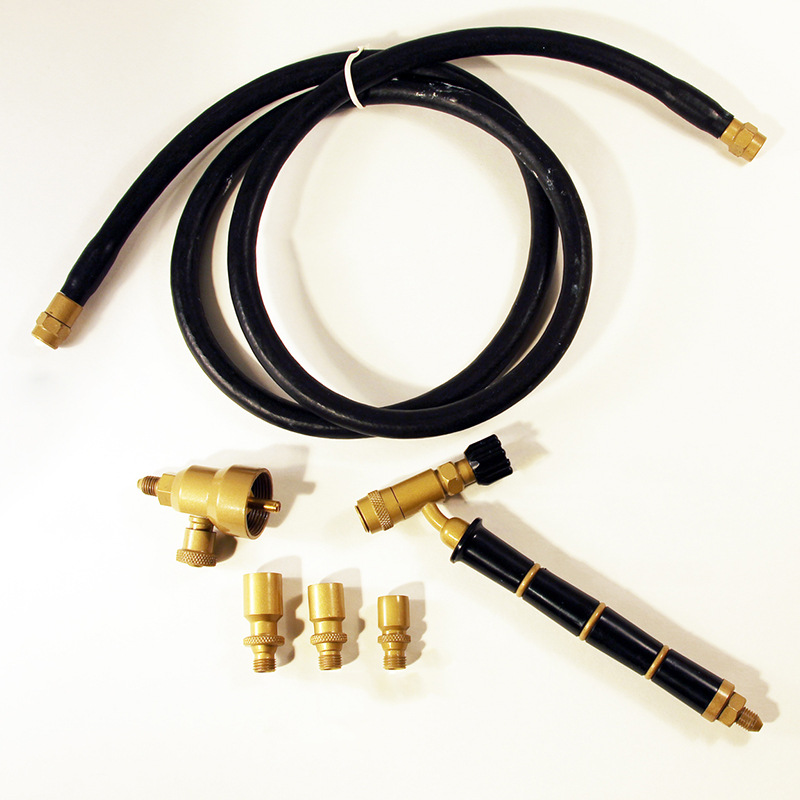

An aerial view of the ORCA M75 CPR jewelry soldering kit, featuring the handle, three nozzles, a coiled hose, and the regulator on a white background

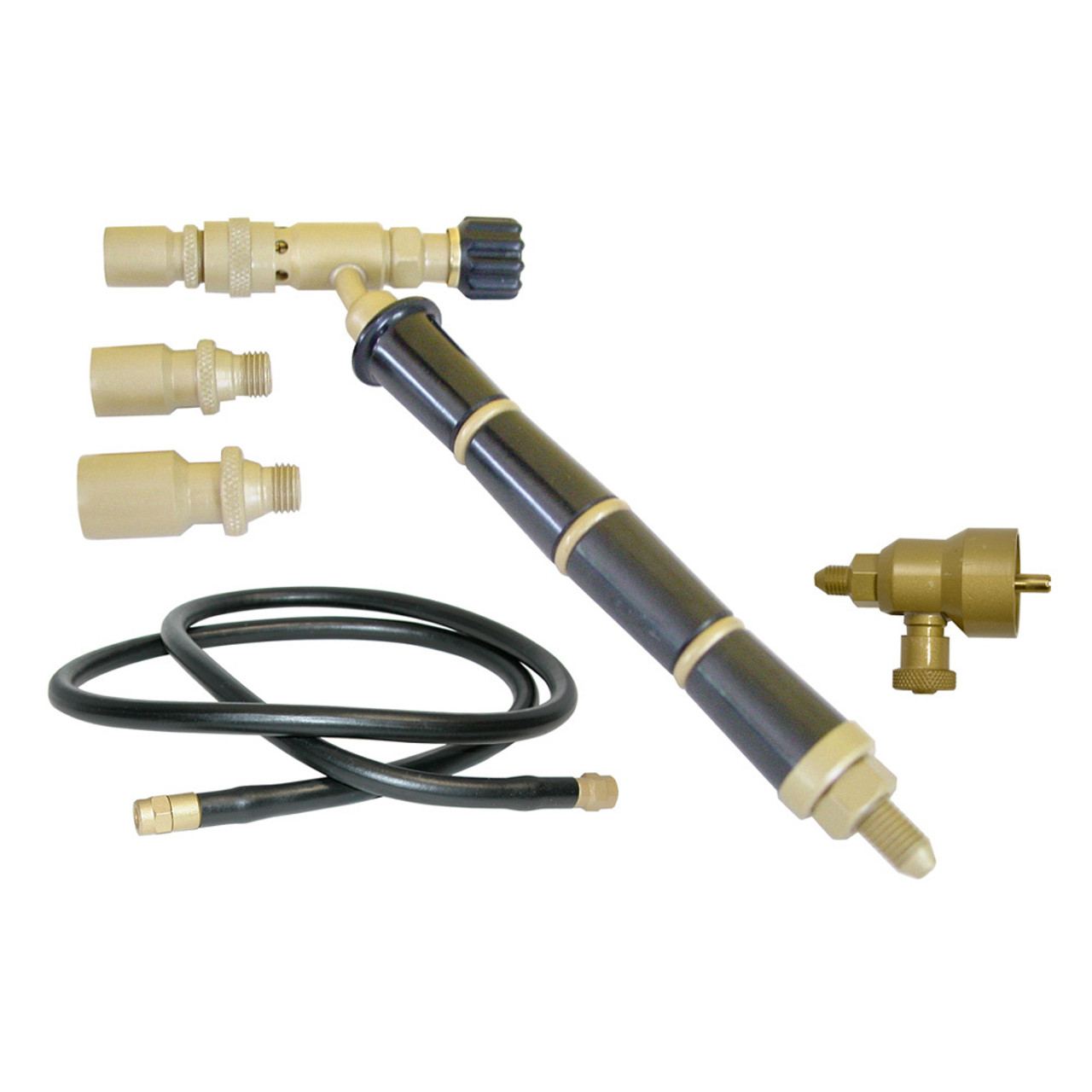

An exploded view of the ORCA M75 CPR jewelry soldering torch kit, showing the handle, hose, regulator, and the available nozzles

ORCA® M75 CPR Jewelry Soldering Torch Kit

Brand Name: ORCA

Place of Origin: Brazil

Model Number: HWAC00283

Material: Copper

Weight: 750g

Application: Jewelry Welding

Use: For Necklace Making, For Bracelet Making, For Earring Making, For Ring Making, For Garment Making, For DIY

$295.85

Get Wholesale Price
Category
Product name
ORCA® MAÇARICO ORCA M75 M75CPR KIT
Includes
M75 TORCH WITH 3 NOZZLES AND 1.25MT HOSE AND REGULATOR
Regulator
Fits on Disposable Propane Tanks
Item code
HWAC00283
Model
M75 CPR
Brand
ORCA
Place of origin
Brazil
Material
Brass + Bakelite
Nozzle diameter
2 mm /2.6 mm /3.8 mm
Maximum temperature
1200 – 1300 ºC

ORCA M75 CPR jewelry soldering torch kit, showing all parts with the brand logo and product name

Description

The ORCA MOD-75 torch is compact, easy to handle and completely safe to use. Since it does not require compressed air, it is ideal for work that requires continuous transport of the equipment, ease of handling and easy storage. Its basic configuration consists of a body, three nozzles (small, medium and large), hose and a valve for coupling to gas tanks. The MOD-75 torch works with direct pressure, not requiring any pressure regulator, which makes it simple and without any additional installation costs.

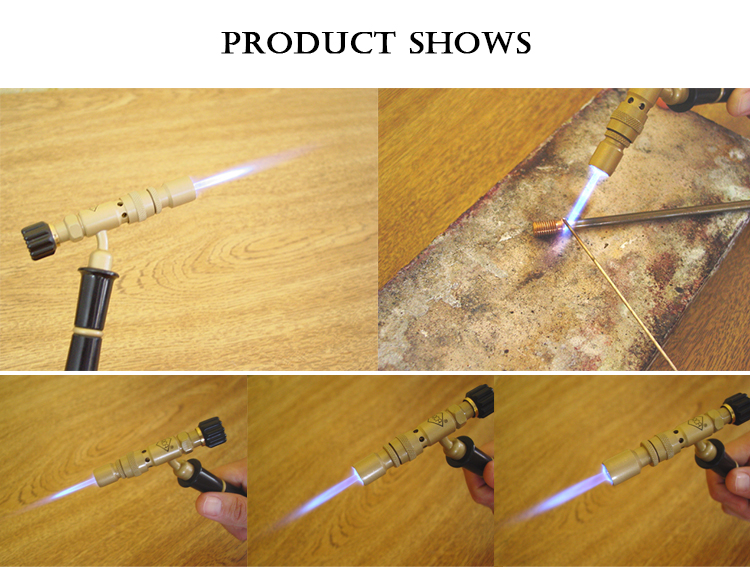

Scenes of the ORCA M75 CPR torch in use, showing the adjustable flame for jewelry soldering tasks

High Efficiency

This torch is especially recommended for medium and low temperature welding work, small precious metal castings or non-precious metal castings for use in fine metallurgy, glassworks, general repairs, etc.

It makes significant use of the calorific potential of LPG (liquefied petroleum gas), thus making heating of the work material quick.

The MOD-75 torch works with direct pressure, requiring no pressure regulator, which makes it simple and without any additional installation costs.

The main feature of this torch, which makes it very suitable for precise work, is the exclusive needle-injector assembly. This system allows the gas flow to be regulated without losing its exit speed, thus making it possible to obtain a very small but intense flame or a powerful but also intense flame.

In conventional systems, the gas flow through the injector depends on the size of its orifice, and when a small flow is regulated through it, the gas speed is low, thus not providing an intense flame at the nozzle.

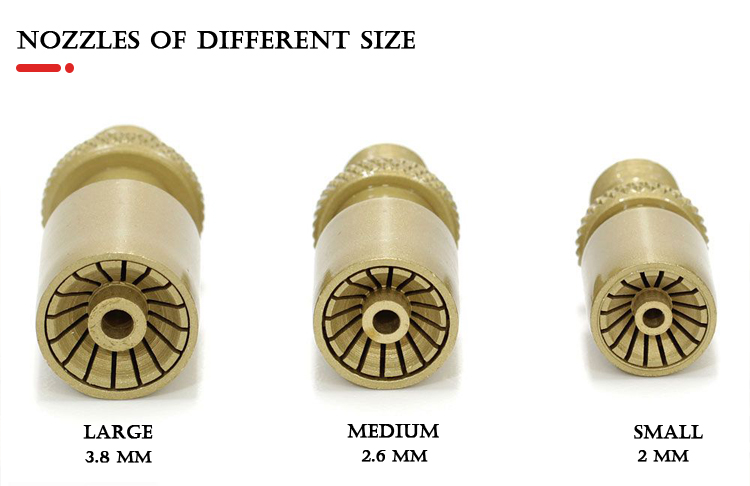

Close-up of the three different sized nozzles for the ORCA M75 CPR torch to precisely control flame size

Sizes and properties of tips for a jewelry burner:
tip
flame diameter (mm)
flame length (mm)
max flame temperature °C
small
2.0
15 – 50
1200
medium
2.6
20 – 60
1250
big
3.8
25 – 70
1300

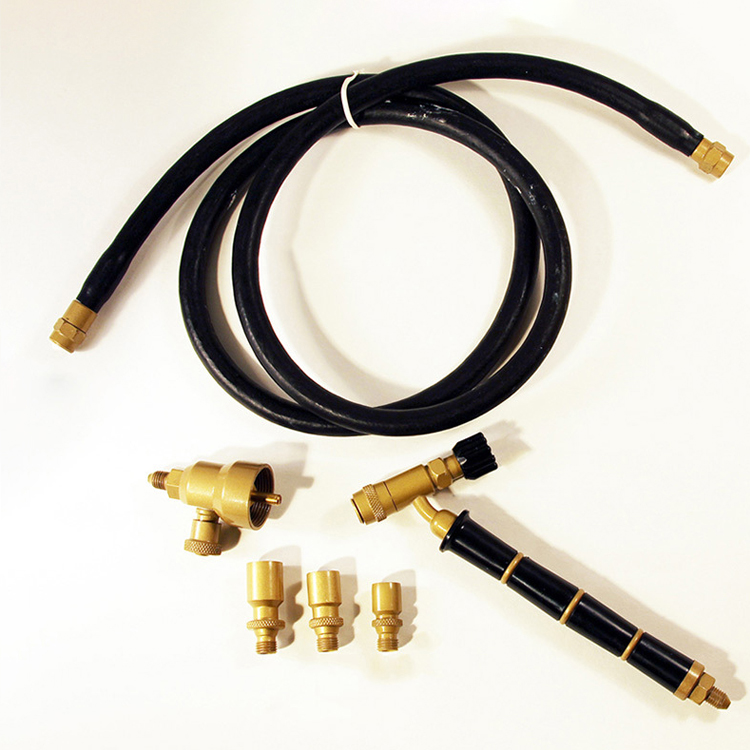

All components of the ORCA M75 CPR jewelry torch kit laid out, including the hose, regulator, and three nozzles

Excellent Quality

The gas injection system is highly precise, providing perfect regulation without flame oscillations. The complete equipment includes a special hose for LPG, sized for total safety and convenience. At its ends we have connection terminals, one of the ends is rotatable (even when tightened), providing total freedom of movement with the torch. It also comes with a valve for coupling to gas tanks, which is manufactured using the same manufacturing criteria as the torches and is available in several coupling systems. We took special care with the matte finish to avoid unwanted reflections and varnished to maintain its appearance.

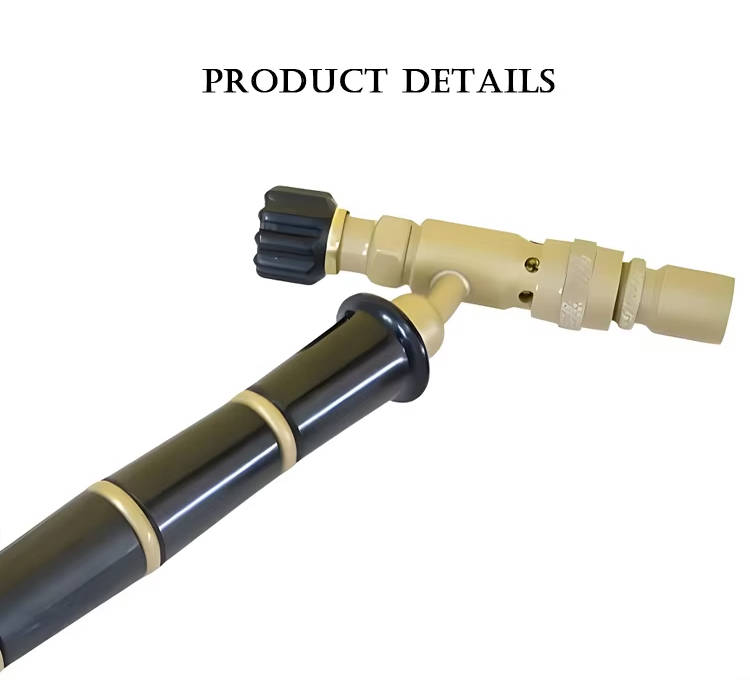

A close-up of the ORCA M75 CPR jewelry soldering torch, highlighting the black and gold handle's connection to the adjustable valve



Its body and moving parts are made of brass, which ensures excellent impact resistance. Its nozzles or burners, patented by us, provide a concentric flame with excellent thermal value. The handle is made of bakelite, offering great thermal insulation.

Close-up of the ORCA M75 CPR torch regulator, designed for use with disposable propane tanks

The Orca Torch Tank Regulator

Disposable propane regulator – fits small disposable tanks

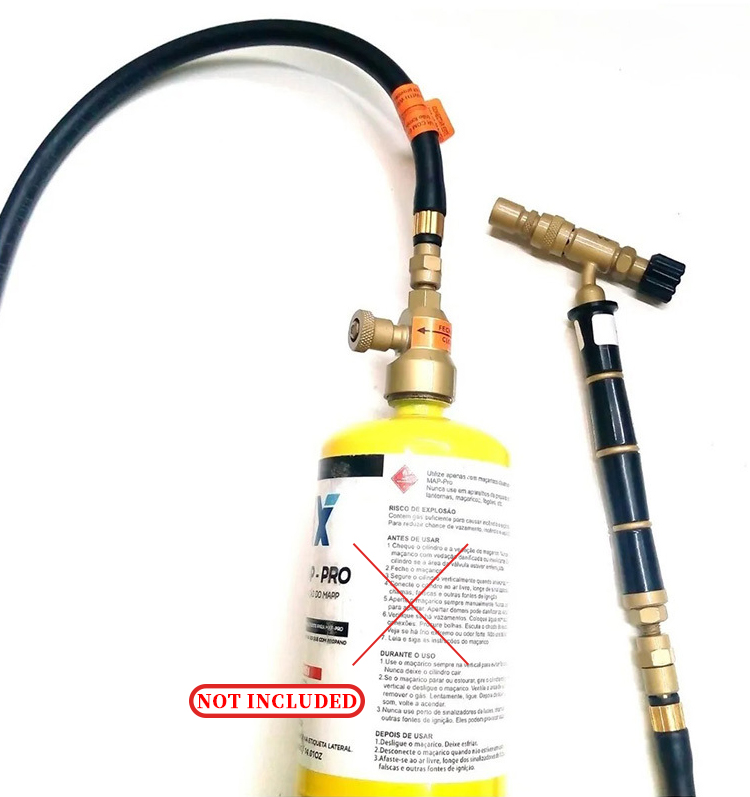

The ORCA M75 CPR torch connected to a propane canister, with a clear note that the canister is "NOT INCLUDED."

The ORCA M75 CPR soldering torch kit, with the hose and propane regulator connected, showing the full assembly

ORCA M75 CPR torch details, showing the pure copper barrel, air inlets, and valve for adjusting flame size

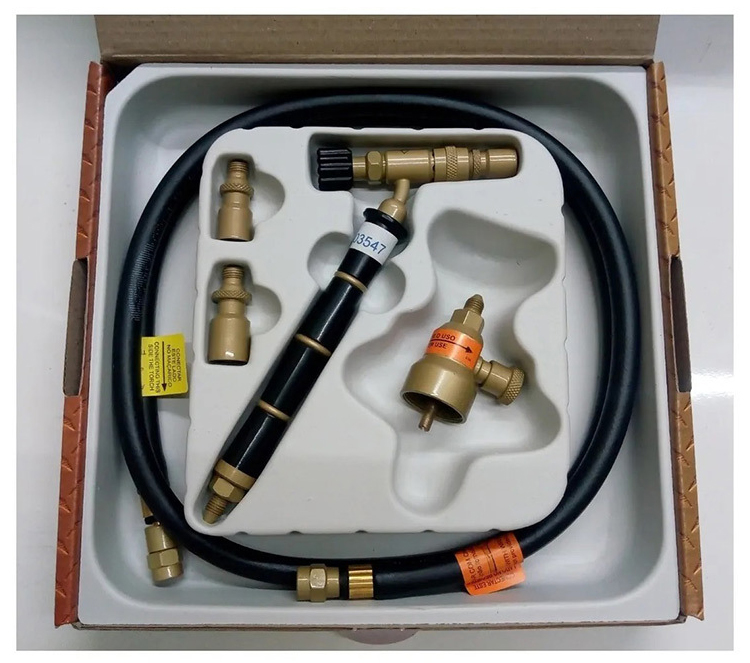

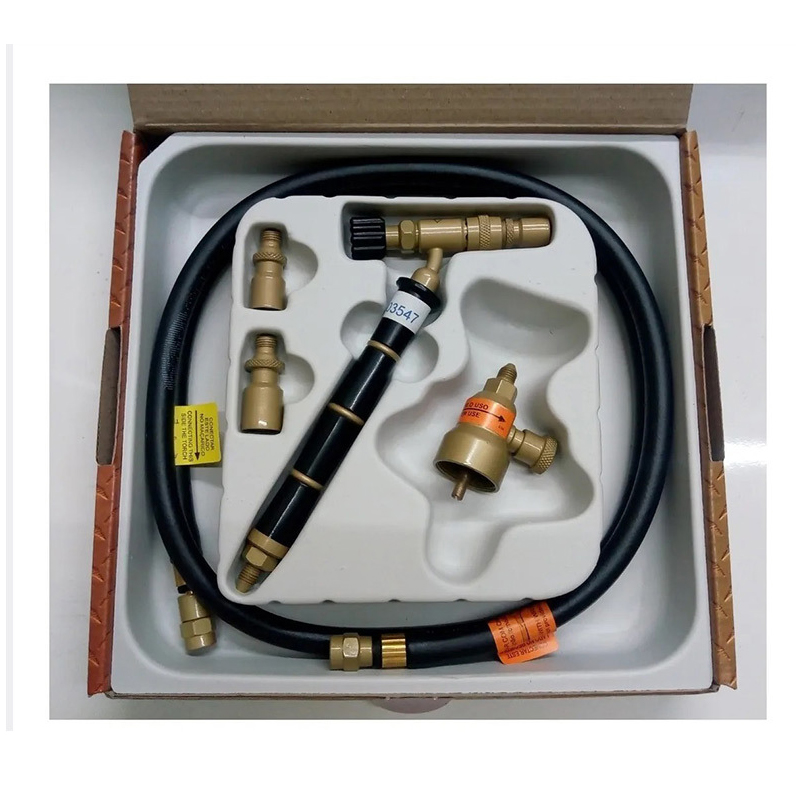

The ORCA M75 CPR soldering torch kit in its packaging, with all components neatly placed in a fitted tray
