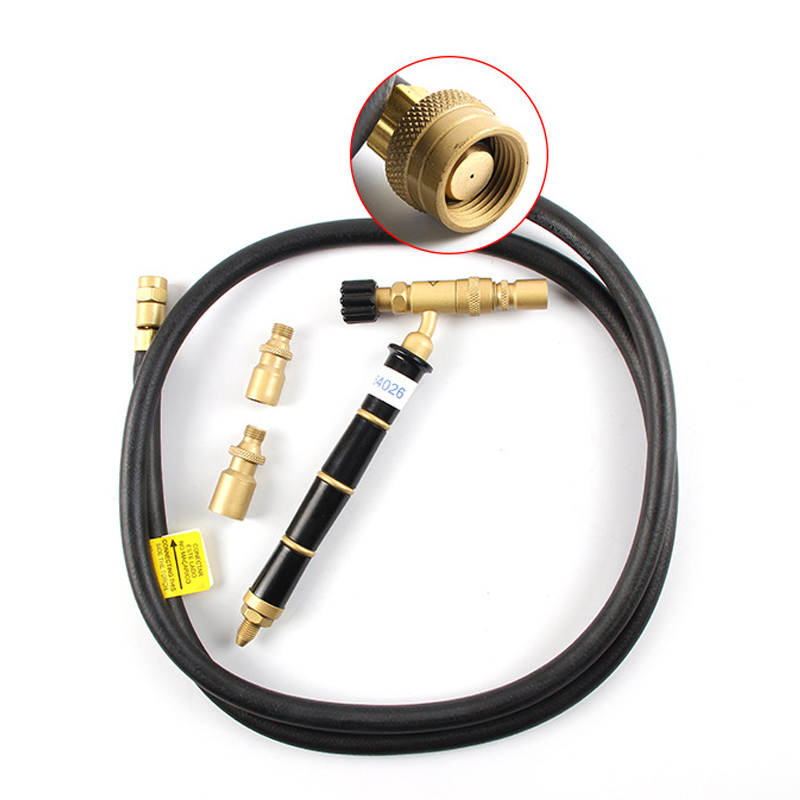

A complete ORCA M75 torch kit with the torch, hose, and two spare tips laid out on a white background
A coiled black rubber hose with a brass connection fitting on each end likely for a soldering torch

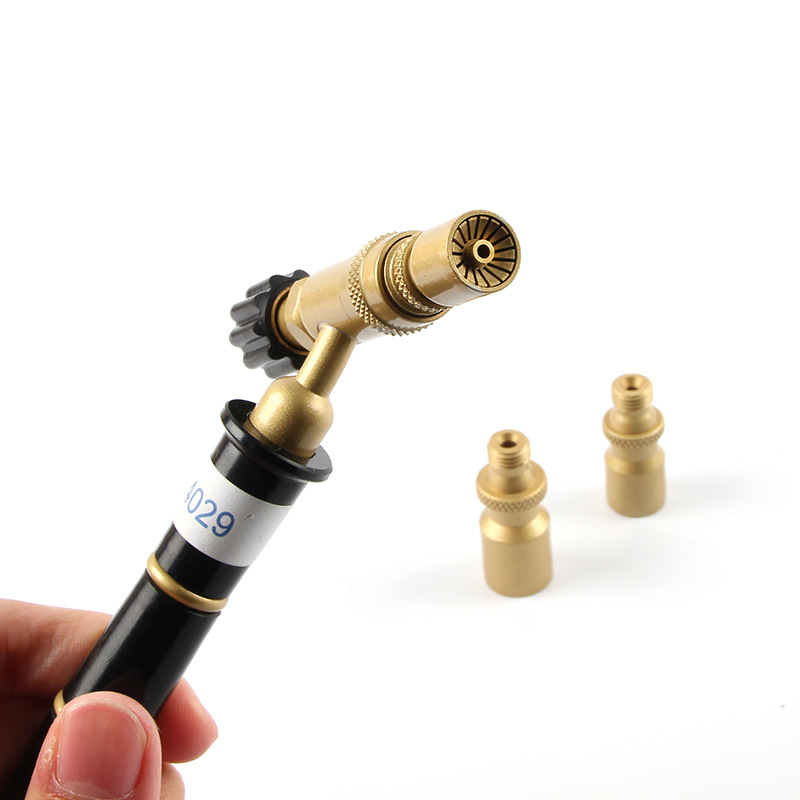

A person holding the ORCA M75 torch showing the brass tip and a black control knob with two spare tips in the background

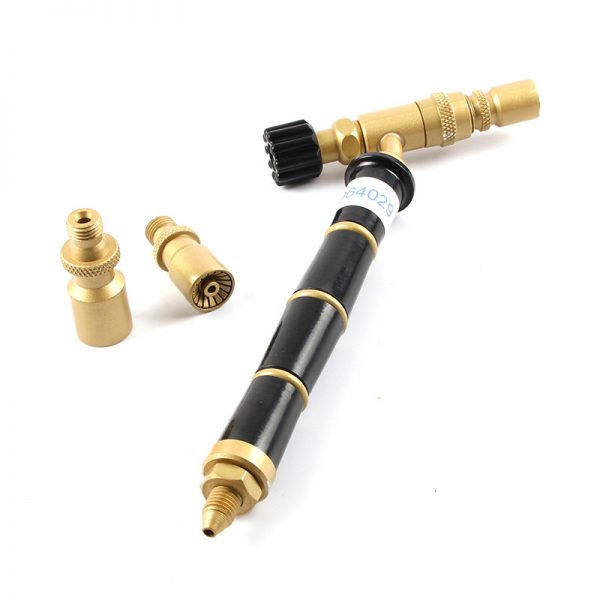

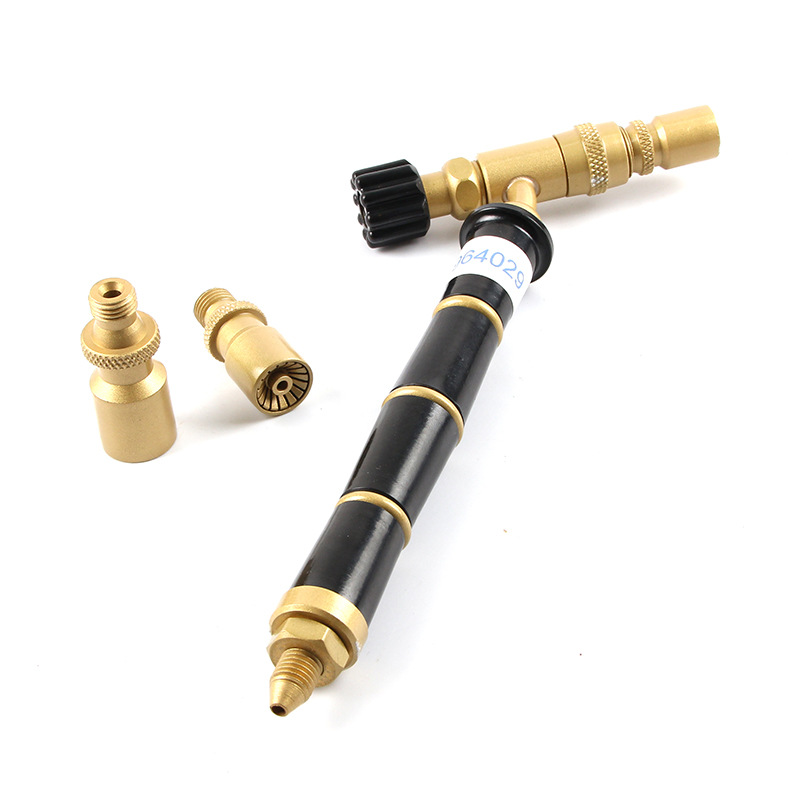

A brass and black ORCA M75 torch with a control knob and two different sized brass tips lying next to it

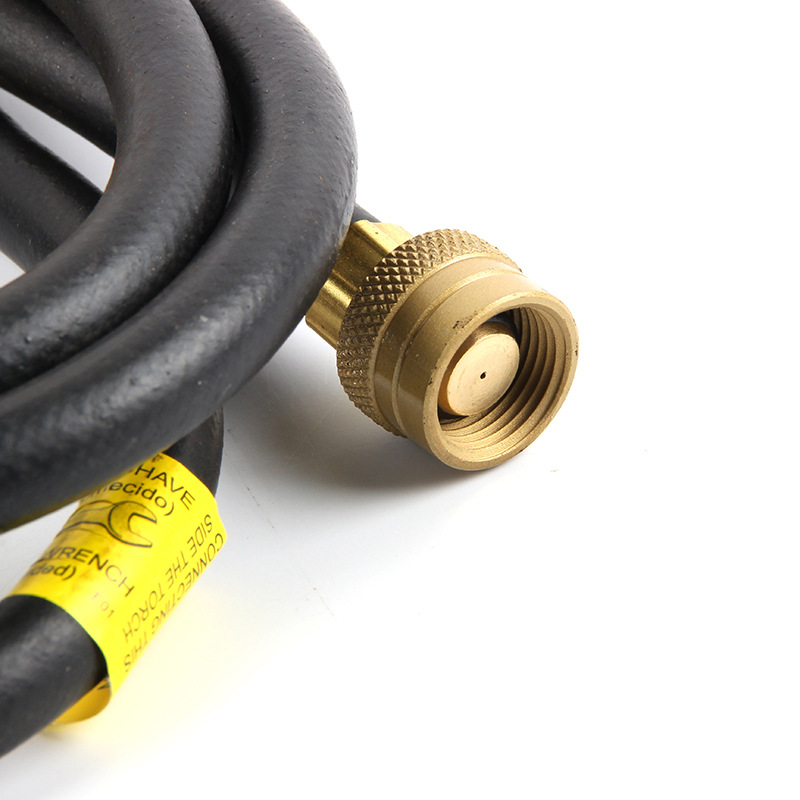

A close up of a brass female quick connect fitting on the end of a black rubber hose showing the internal valve
The retail box for the ORCA M75 mini torch featuring product photos and descriptions in Portuguese

ORCA® M75 CMK Jewelry Welding Soldering Torch

Brand Name: ORCA

Place of Origin: Brazil

Material: Copper

Weight: 600g

Application: Jewelry Welding

$220.83

Get Wholesale Price
Category
Product name
ORCA® MAÇARICO ORCA M75 M75CMK KIT
Includes
M75 TORCH WITH 3 NOZZLES AND 1.25MT Australian Standard HOSE
Item code
HWAC00288
Model
M75 CMK
Brand
ORCA
Place of origin
Brazil
Material
Brass + Bakelite
Nozzle diameter
2 mm /2.6 mm /3.8 mm
Maximum temperature
1200 – 1300 ºC

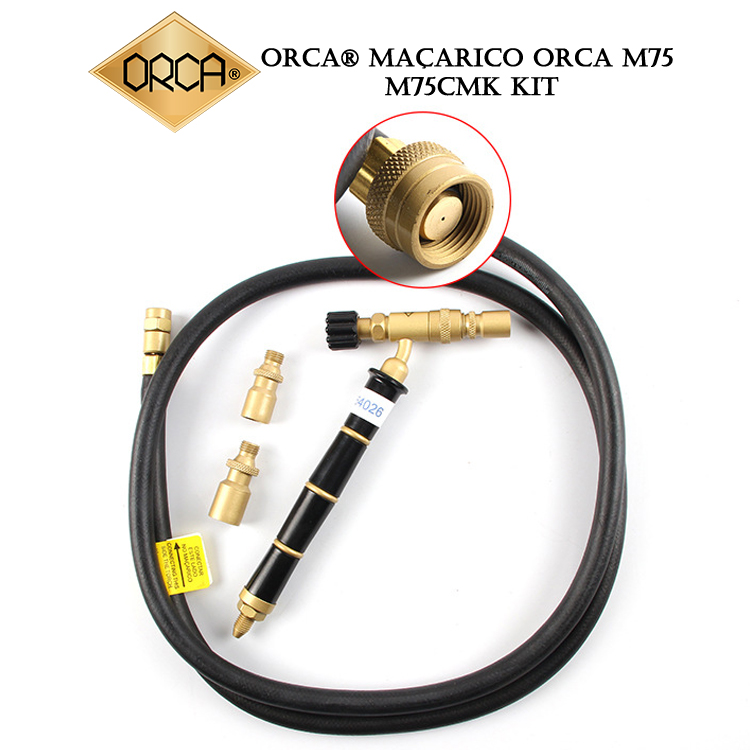

A full view of the ORCA M75CMK kit, including the torch, gas hose, and interchangeable nozzles

Description

The ORCA MOD-75 torch is compact, easy to handle and completely safe to use. Since it does not require compressed air, it is ideal for work that requires continuous transport of the equipment, ease of handling and easy storage. Its basic configuration consists of a body, three nozzles (small, medium and large), hose and a valve for coupling to gas tanks. The MOD-75 torch works with direct pressure, not requiring any pressure regulator, which makes it simple and without any additional installation costs.

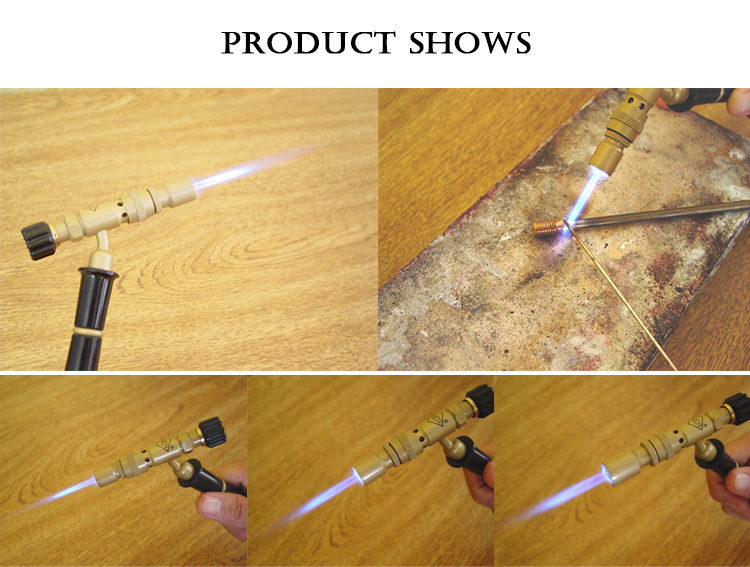

A collage showing the ORCA torch in use, demonstrating its flame for welding and soldering jewelry

High Efficiency

This torch is especially recommended for medium and low temperature welding work, small precious metal castings or non-precious metal castings for use in fine metallurgy, glassworks, general repairs, etc.

It makes significant use of the calorific potential of LPG (liquefied petroleum gas), thus making heating of the work material quick.

The MOD-75 torch works with direct pressure, requiring no pressure regulator, which makes it simple and without any additional installation costs.

The main feature of this torch, which makes it very suitable for precise work, is the exclusive needle-injector assembly. This system allows the gas flow to be regulated without losing its exit speed, thus making it possible to obtain a very small but intense flame or a powerful but also intense flame.

In conventional systems, the gas flow through the injector depends on the size of its orifice, and when a small flow is regulated through it, the gas speed is low, thus not providing an intense flame at the nozzle.

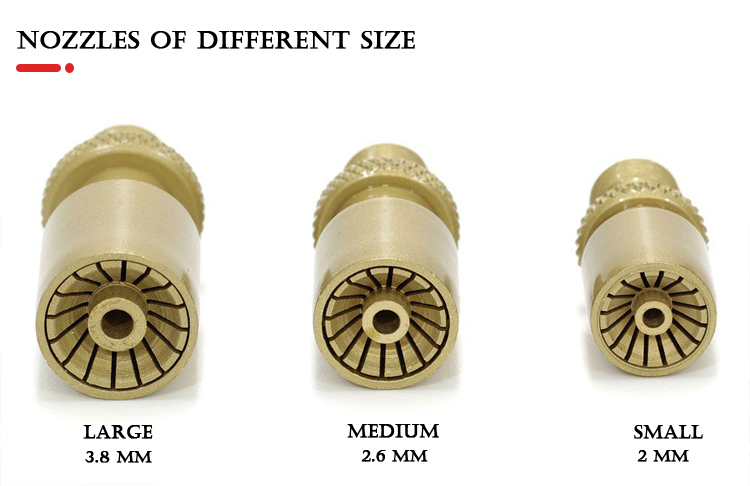

A comparison of three different sized nozzles for the ORCA torch: large (3.8 mm), medium (2.6 mm), and small (2 mm)

Sizes and properties of tips for a jewelry burner:
tip
flame diameter (mm)
flame length (mm)
max flame temperature °C
small
2.0
15 – 50
1200
medium
2.6
20 – 60
1250
big
3.8
25 – 70
130

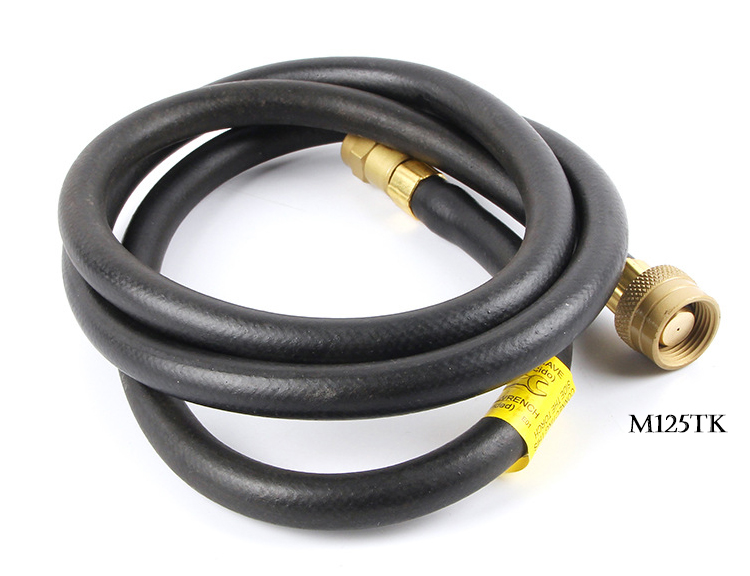

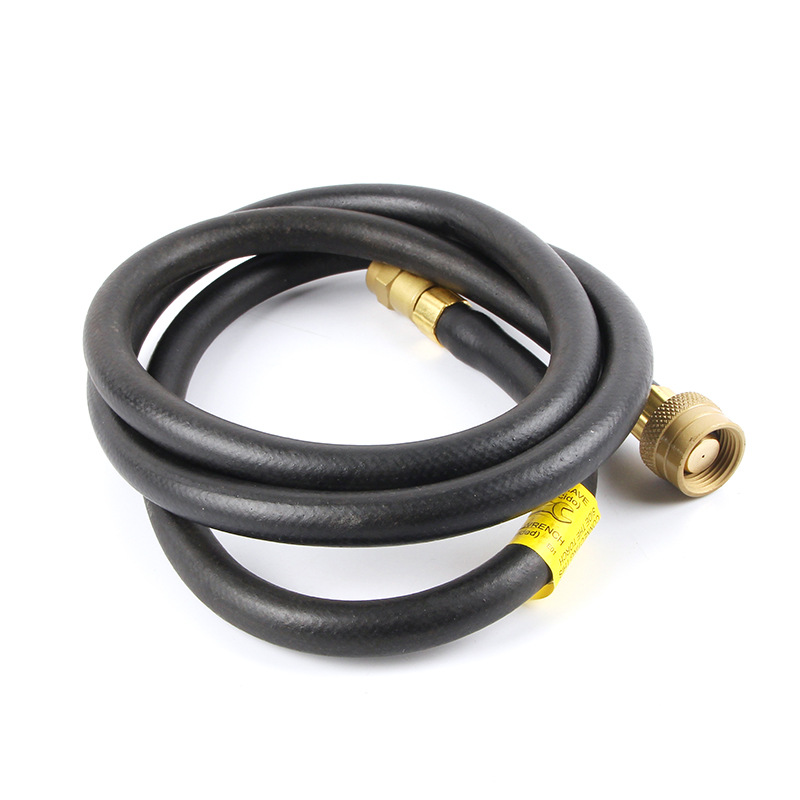

The coiled gas hose for the ORCA M75 CMK torch, with a brass fitting on one end, on a white background

Excellent Quality

The gas injection system is highly precise, providing perfect regulation without flame oscillations. The complete equipment includes a special hose for LPG, sized for total safety and convenience. At its ends we have connection terminals, one of the ends is rotatable (even when tightened), providing total freedom of movement with the torch. It also comes with a valve for coupling to gas tanks, which is manufactured using the same manufacturing criteria as the torches and is available in several coupling systems. We took special care with the matte finish to avoid unwanted reflections and varnished to maintain its appearance.

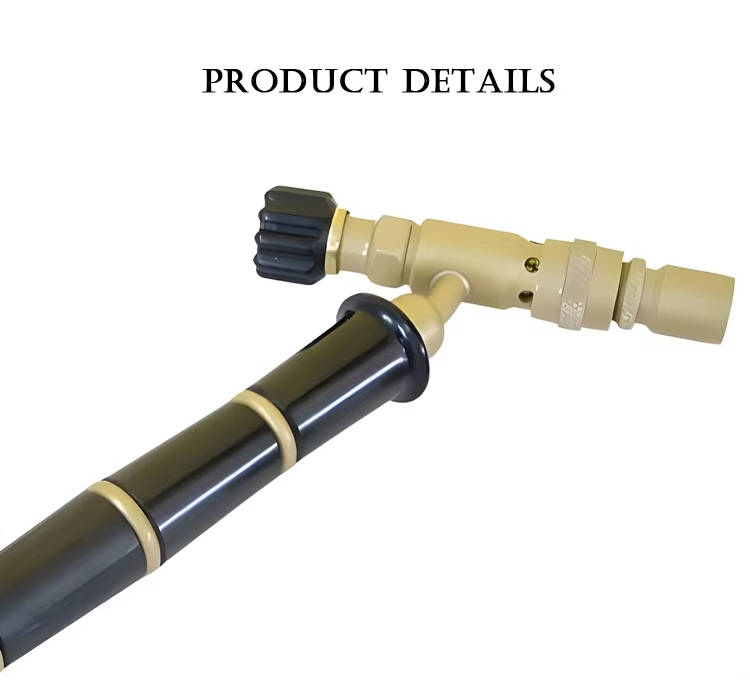

Detailed close up of the ORCA M75 CMK torch showing the black valve switch and the black and brass handle

Its body and moving parts are made of brass, which ensures excellent impact resistance. Its nozzles or burners, patented by us, provide a concentric flame with excellent thermal value. The handle is made of bakelite, offering great thermal insulation.

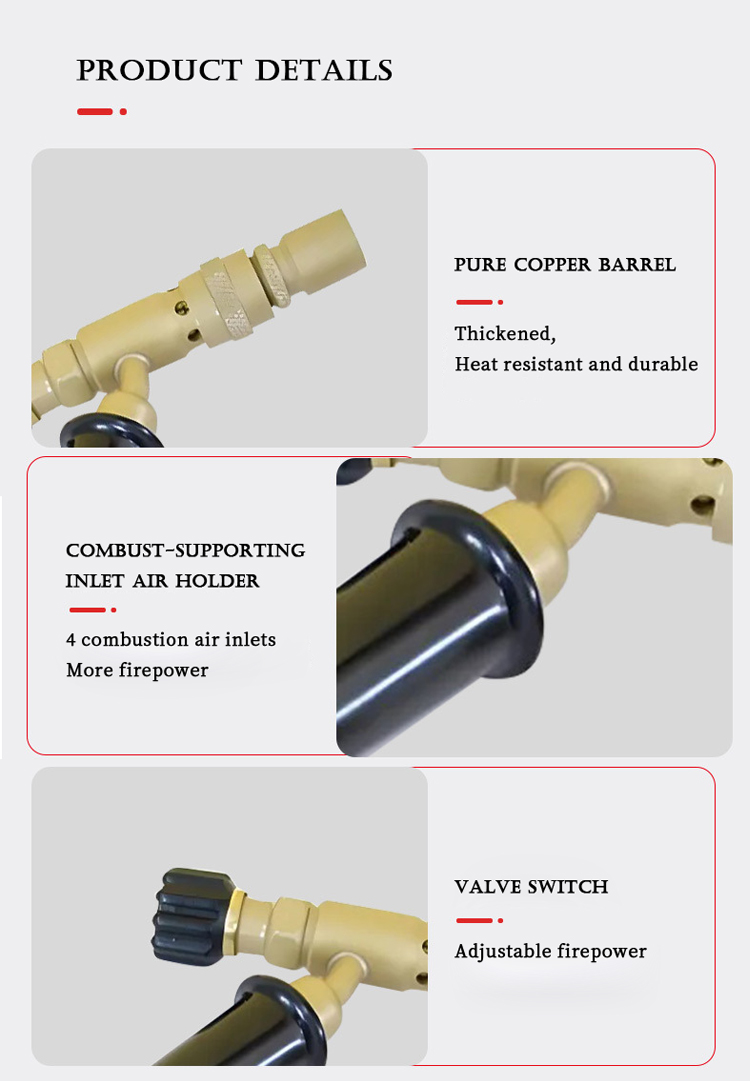

Detailed view of the ORCA torch features, highlighting its pure copper barrel, air inlets, and adjustable valve switch

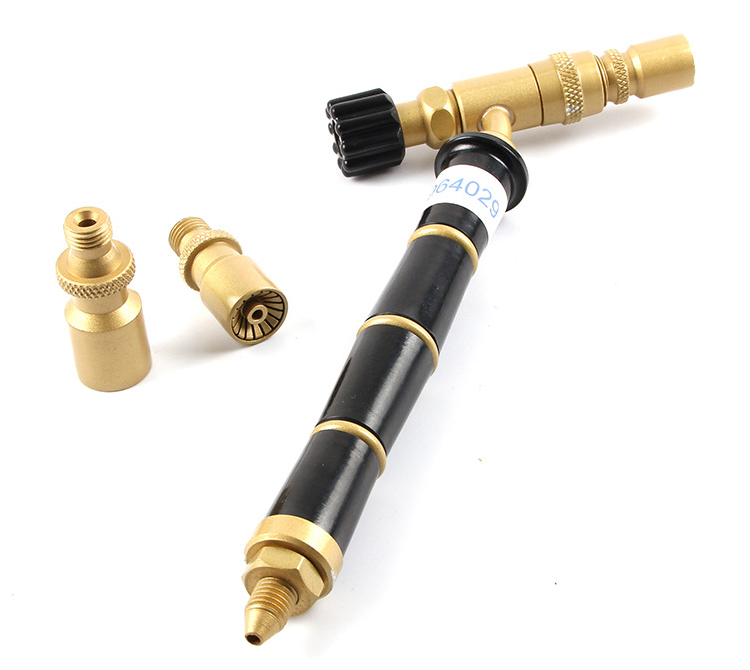

A disassembled view of the ORCA M75 CMK torch body with its various components and nozzle tips

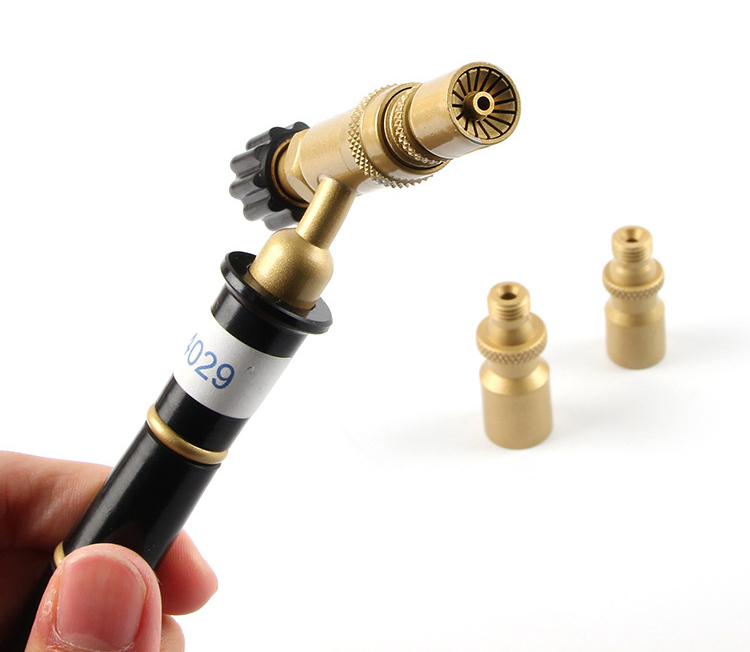

A hand holding the ORCA M75 CMK torch body with two small brass nozzle tips visible nearby on a white surface

Close-up of the ORCA torch's gas hose with a brass quick-connect fitting, ready for a gas tank

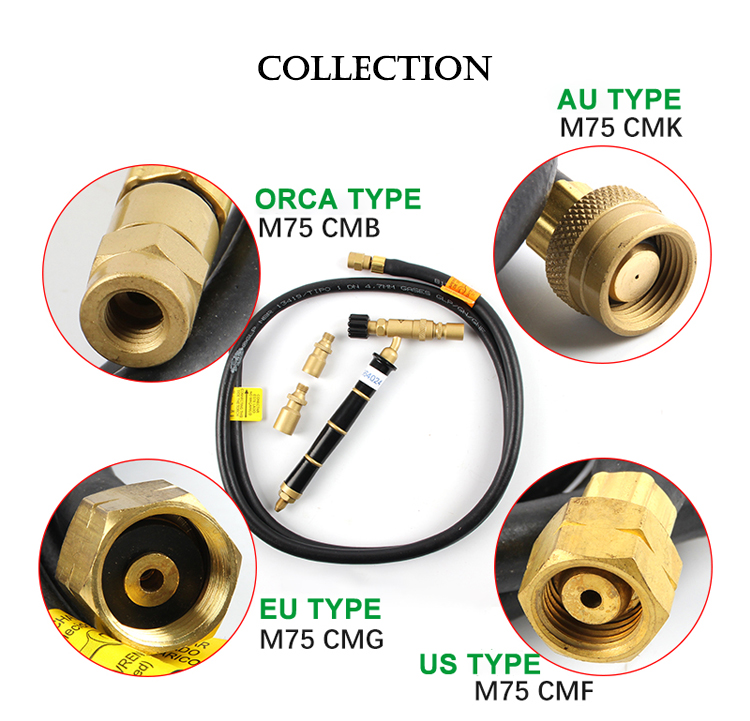

A collection of different gas hose fittings for the ORCA torch, showing AU, EU, and US types
