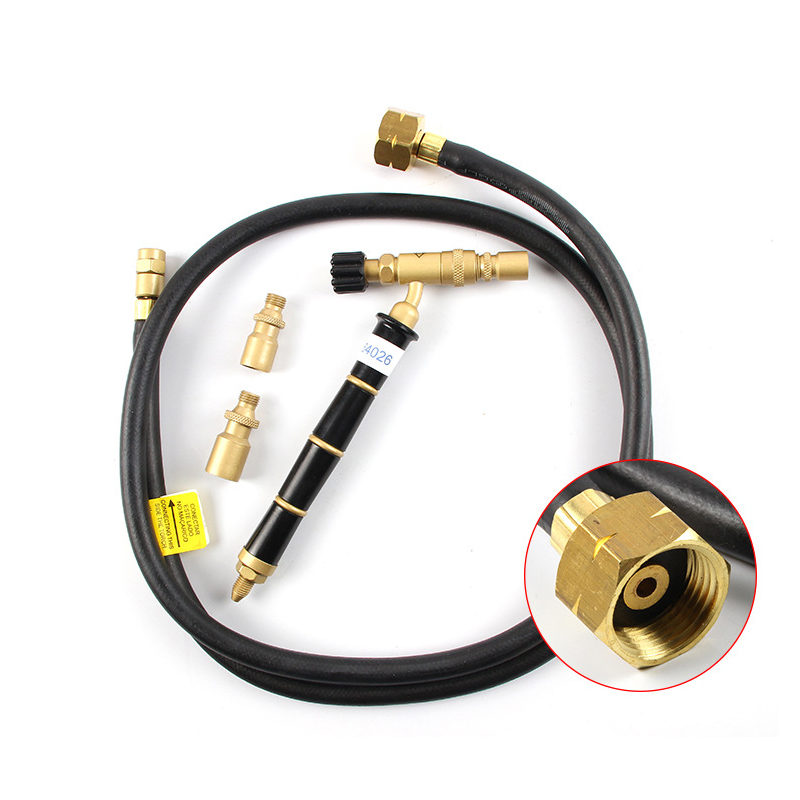

The complete ORCA® M75 CMG Jewelry Welding Torch KIT with hose, torch, and various nozzles

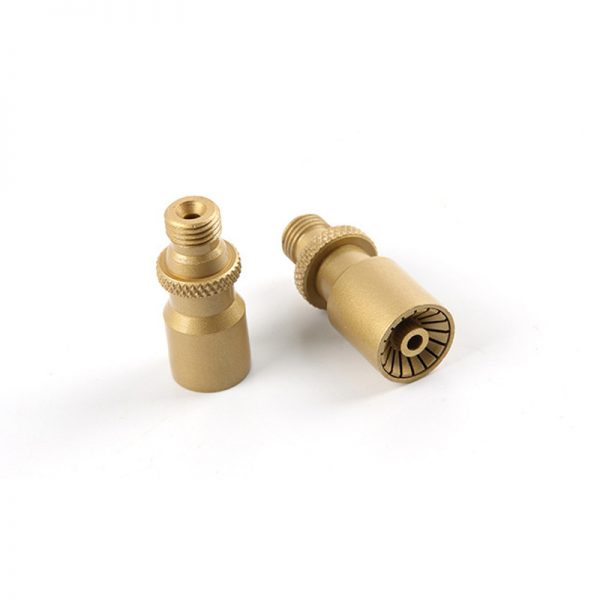

A close-up of two brass nozzles from the ORCA® Jewelry Welding Torch kit

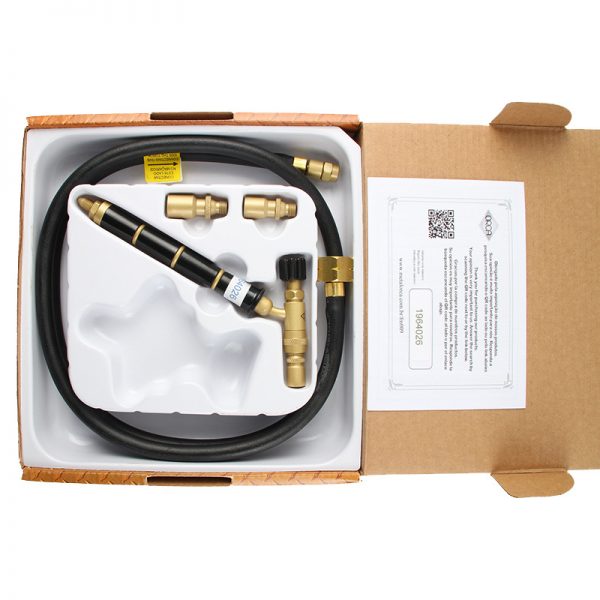

The ORCA® M75 CMG Jewelry Welding Torch and Nozzles KIT neatly packed in its box

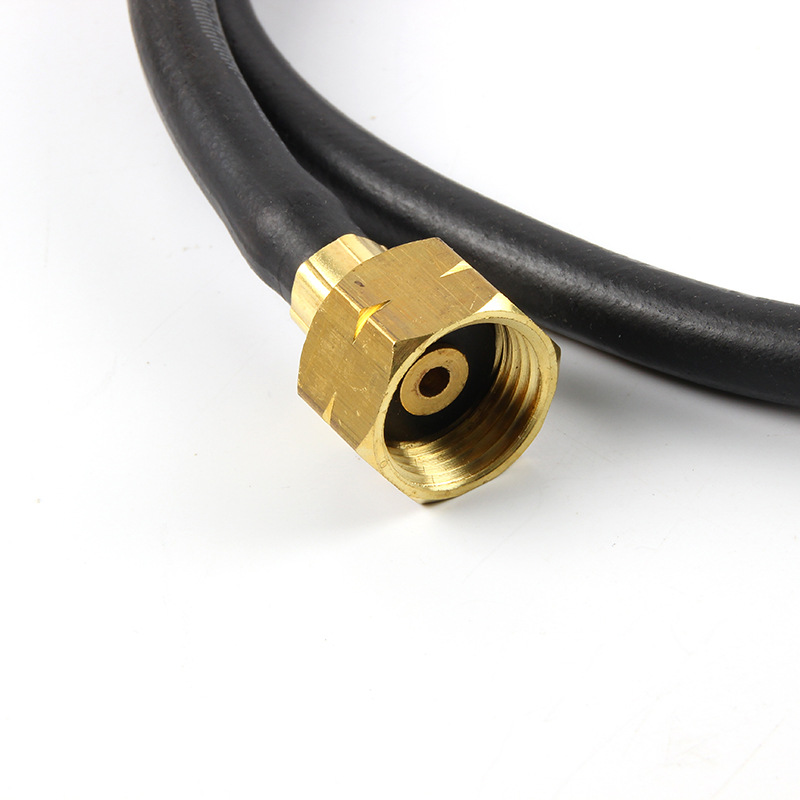

A detailed view of the brass connector and black hose of the Jewelry Welding Torch

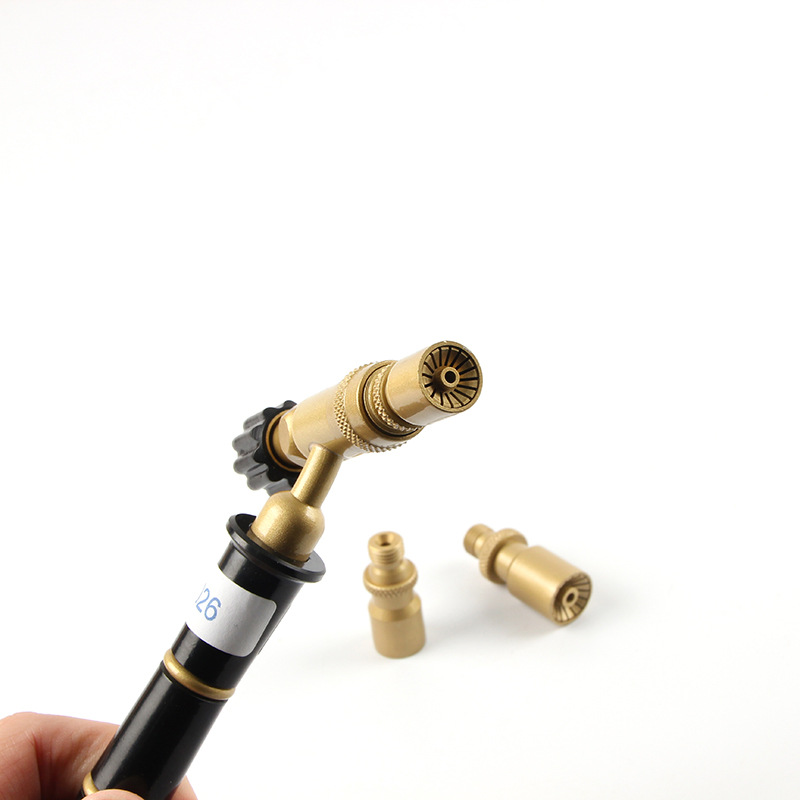

A hand holding the ORCA® Jewelry Welding Torch with two nozzles in the background

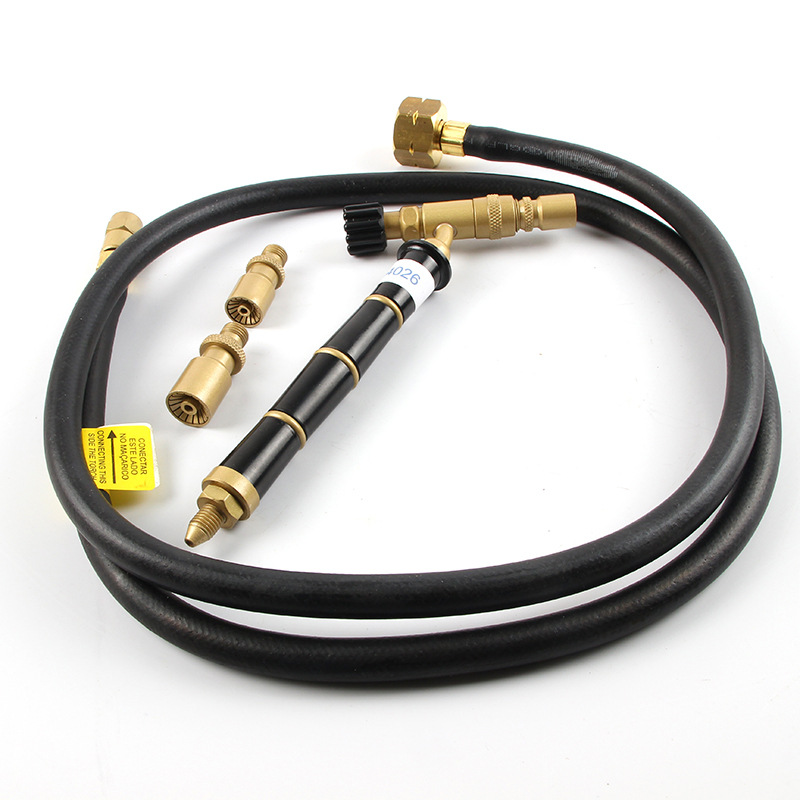

The ORCA® M75 CMG Jewelry Welding Torch and Nozzles KIT laid out on a white surface

ORCA® M75 CMG Jewelry Welding Torch and Nozzles KIT

Brand Name: ORCA

Place of Origin: Brazil

Material: Copper

Weight: 600g

Application: Jewelry Welding

$218.98

Get Wholesale Price
Category
Product name
ORCA® MAÇARICO ORCA M75 M75CMG KIT
Type
M75 TORCH WITH 3 NOZZLES AND M125TQ 1.25MT HOSE (European Standard)
Item code
HWAC00286
Model
M75 CMG
Brand
ORCA
Place of origin
Brazil
Material
Brass + Bakelite
Nozzle diameter
2 mm /2.6 mm /3.8 mm
Maximum temperature
1200 – 1300 ºC



Description

The ORCA MOD-75 torch is compact, easy to handle and completely safe to use. Since it does not require compressed air, it is ideal for work that requires continuous transport of the equipment, ease of handling and easy storage. Its basic configuration consists of a body, three nozzles (small, medium and large), hose and a valve for coupling to gas tanks. The MOD-75 torch works with direct pressure, not requiring any pressure regulator, which makes it simple and without any additional installation costs.

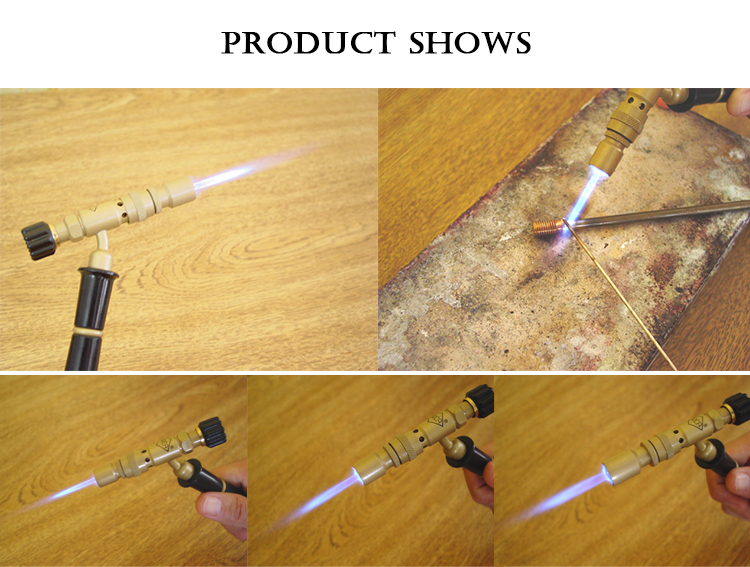

A collage showing the ORCA M75 CMG torch in action, demonstrating its adjustable flame for jewelry welding and soldering



High Efficiency

This torch is especially recommended for medium and low temperature welding work, small precious metal castings or non-precious metal castings for use in fine metallurgy, glassworks, general repairs, etc. It makes significant use of the calorific potential of LPG (liquefied petroleum gas), thus making heating of the work material quick.

The MOD-75 torch works with direct pressure, requiring no pressure regulator, which makes it simple and without any additional installation costs.

The main feature of this torch, which makes it very suitable for precise work, is the exclusive needle-injector assembly. This system allows the gas flow to be regulated without losing its exit speed, thus making it possible to obtain a very small but intense flame or a powerful but also intense flame.

In conventional systems, the gas flow through the injector depends on the size of its orifice, and when a small flow is regulated through it, the gas speed is low, thus not providing an intense flame at the nozzle.

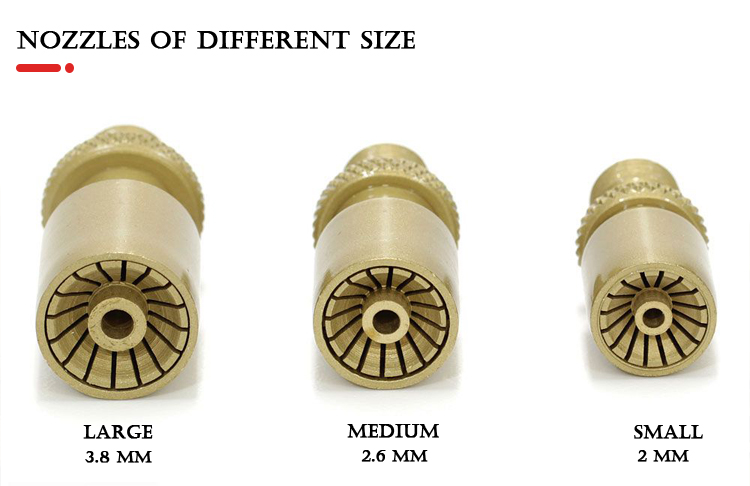

A comparison of the three different-sized nozzles included in the kit: large (3.8mm), medium (2.6mm), and small (2mm)

Sizes and properties of tips for a jewelry burner:
tip
flame diameter (mm)
flame length (mm)
max flame temperature °C
small
2.0
15 – 50
1200
medium
2.6
20 – 60
1250
big
3.8
25 – 70
1300

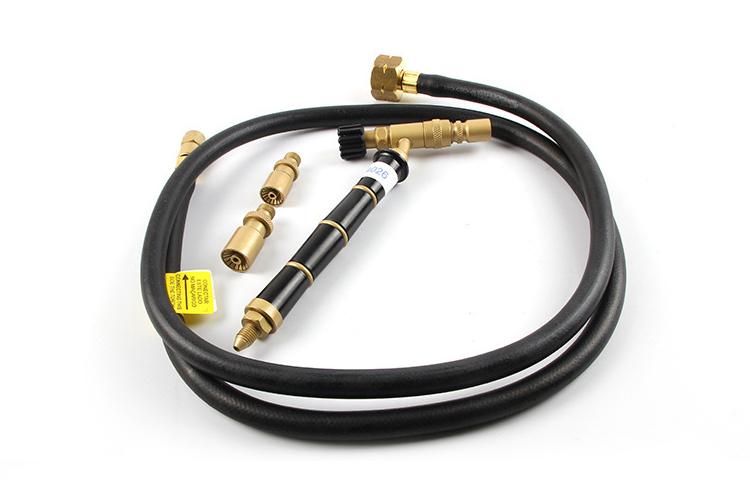

The entire ORCA M75CMG kit arranged together, including the torch handle, two spare nozzles, and the gas hose

Excellent Quality

The gas injection system is highly precise, providing perfect regulation without flame oscillations. The complete equipment includes a special hose for LPG, sized for total safety and convenience. At its ends we have connection terminals, one of the ends is rotatable (even when tightened), providing total freedom of movement with the torch. It also comes with a valve for coupling to gas tanks, which is manufactured using the same manufacturing criteria as the torches and is available in several coupling systems. We took special care with the matte finish to avoid unwanted reflections and varnished to maintain its appearance.

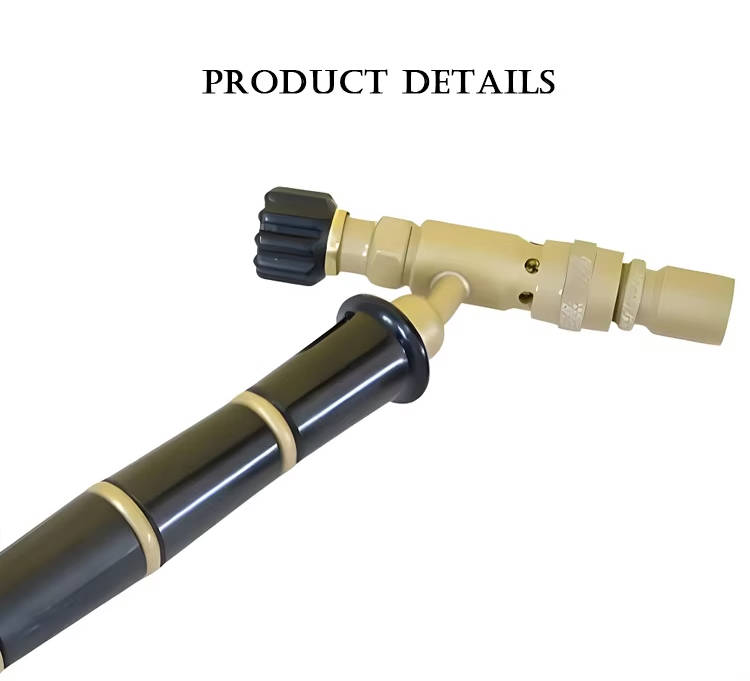

A close-up of the ORCA M75 CMG torch handle, highlighting the adjustable valve switch and the connection point

Its body and moving parts are made of brass, which ensures excellent impact resistance. Its nozzles or burners, patented by us, provide a concentric flame with excellent thermal value. The handle is made of bakelite, offering great thermal insulation.

The ORCA M75 CMG torch kit packaging box, highlighting its features and suitability for jewelry making with different nozzle sizes

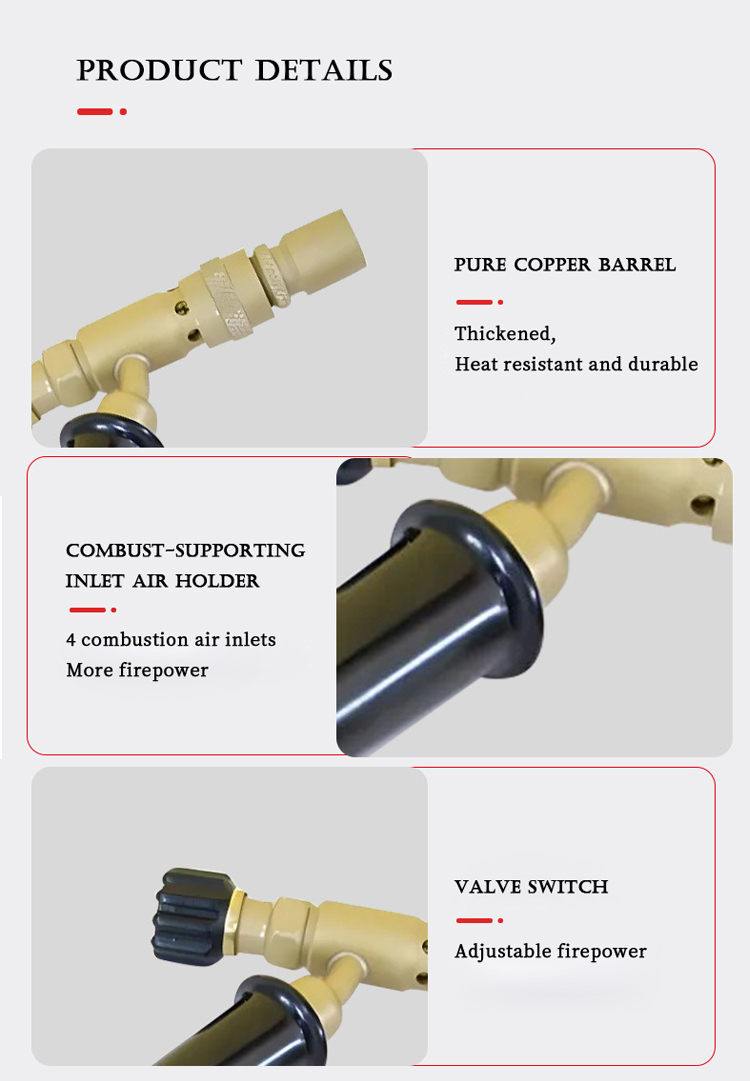

A product detail image highlighting the pure copper barrel, combust-supporting air holder, and adjustable valve switch of the torch

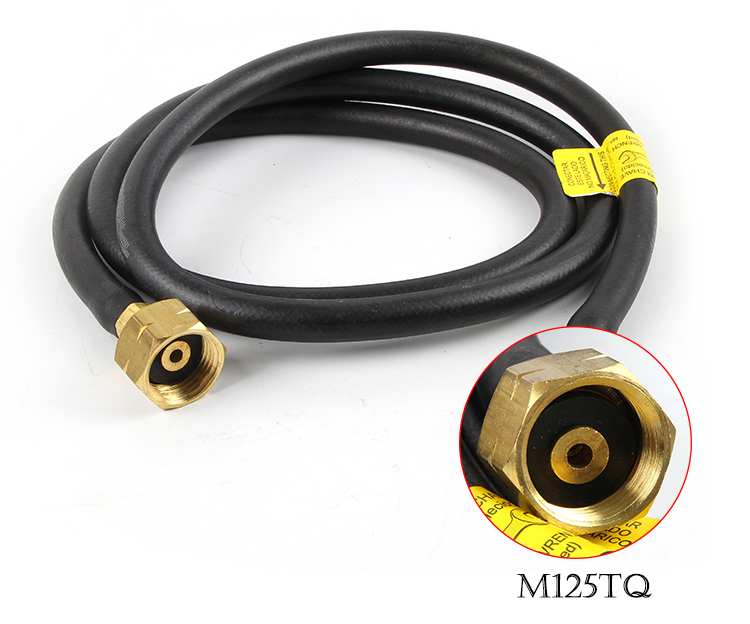

A detailed shot of the long, black gas hose with a brass fitting on the end, suitable for connecting the ORCA torch to a fuel source

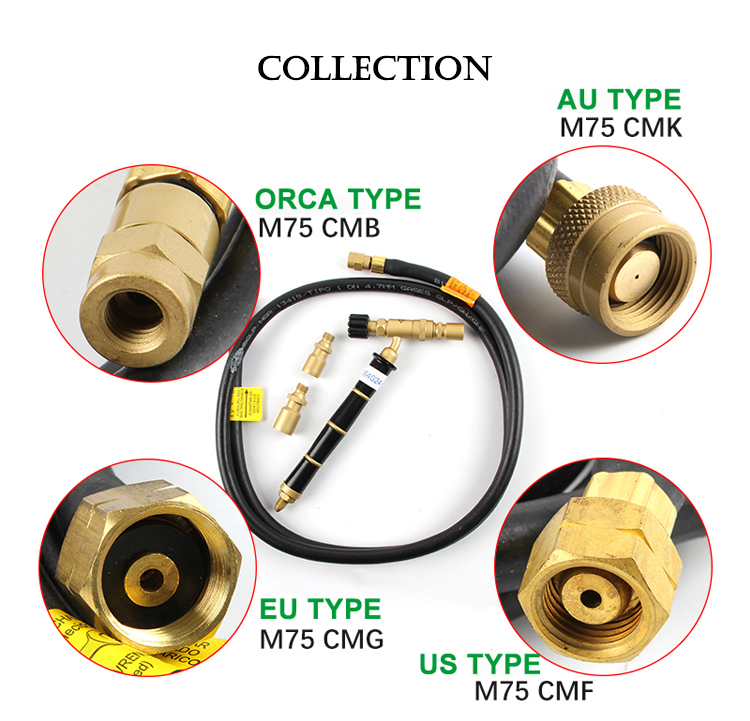

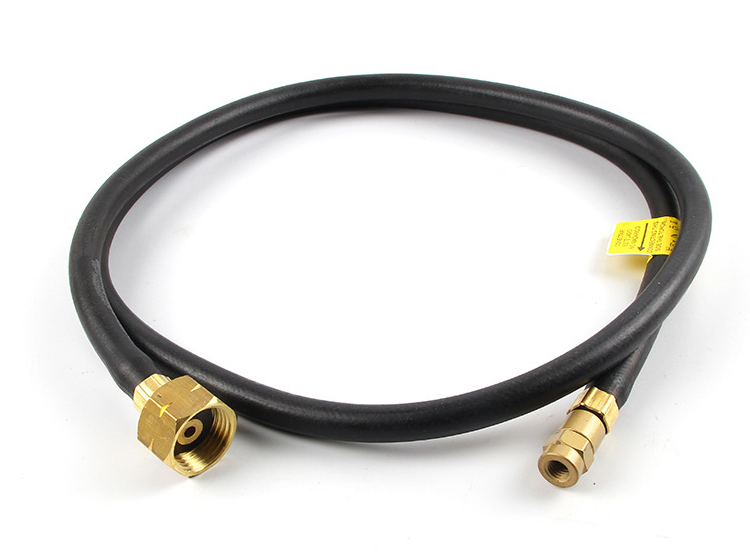

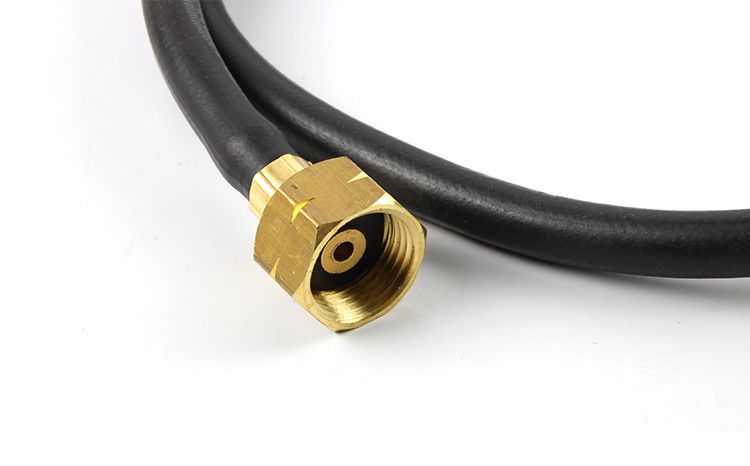

A full-length view of the black gas hose with a brass fitting at each end, ready for connecting the torch to a gas tankA close-up view of the brass fitting on the end of the gas hose, showing the threaded connection point and internal openingThe ORCA M75 CMG torch handle with two of the different-sized nozzles shown detached next to itORCA M75 torch with attached nozzle and two separate nozzles shown in two viewsORCA M75 CMG kit neatly packaged with torch, hose, and nozzles visible insideInternational ORCA torch connector types (AU, EU, US) displayed with the M75 CMG kit
