Technical Specifications
| Parameter | Technical Specification |
| Brand & Origin |
NIQUA SUPER Q® (Made in Germany / Swiss Precision Quality) |
| Product Model / Range | Series 1445 (Wax Bur Assortment) |
| Product Code | 03-269-000 |
| Bur Geometries Included |
Series 52 (Helix) & Series 171C (Double Taper Inverted Cone) |
| Material Construction | Hardened High-Quality Tool Steel |
| Shank Diameter | Standard 2.35 mm (3/32”) |
| Compatible Materials | Hard Carving Wax, Inlay Wax, Injection Wax, Prototyping Resins |
| Primary Applications | Lost-Wax Master Carving, Undercutting, Gallery Hollowing, Seat Profiling |
| Rotary Equipment Compatibility | Jewelry Micromotors, Flex Shaft Systems, Rotary Handpieces |

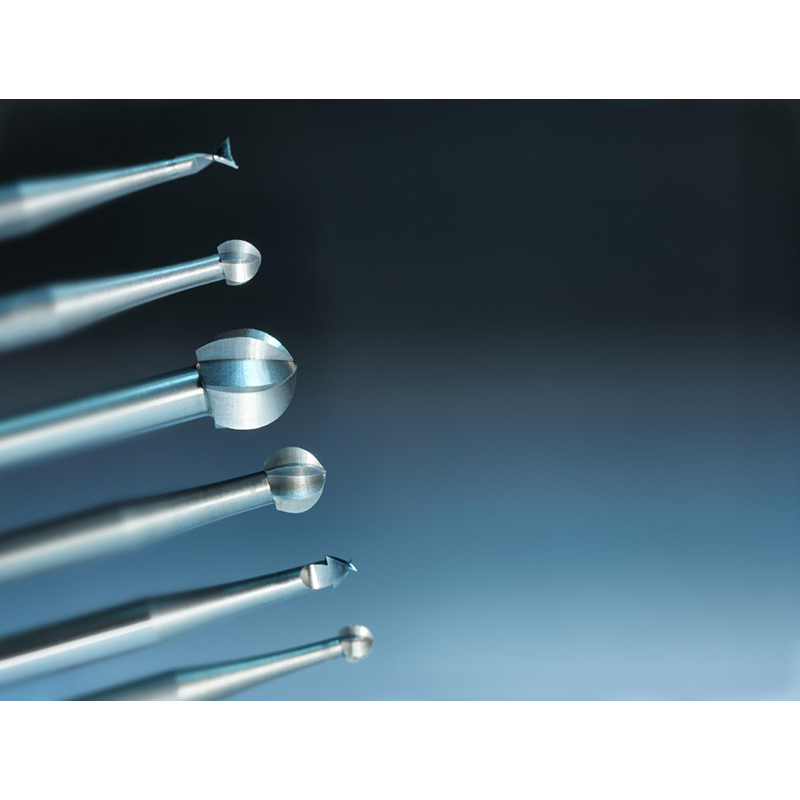

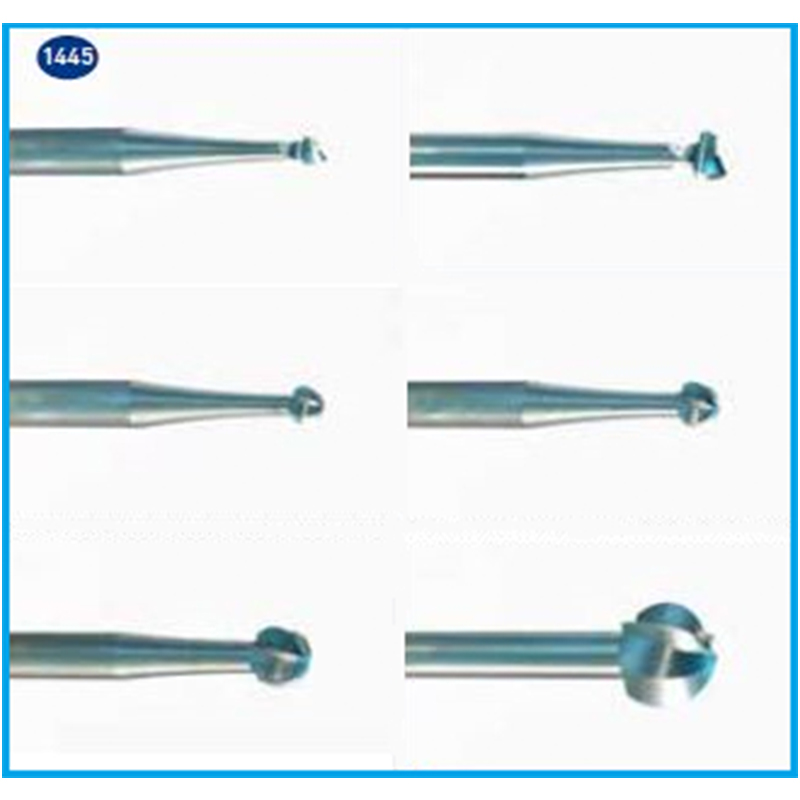

Included bur types:
-
“52” wax burs: 1.60 mm / 2.30 mm
-
“171C” wax burs: 1.80 mm / 2.30 mm / 3.10 mm / 5.00 mm
Achieve clean wax carving, rapid chip discharge, and tear-free surface detailing with the authentic NIQUA SUPER Q® Wax Bur Assortment “1445”. Engineered specifically to Swiss precision standards from high-grade tool steel, this curated workshop set provides goldsmiths, model makers, casting ateliers, and jewelry designers with a targeted rotary system developed specifically for the unique physical properties of modeling wax.

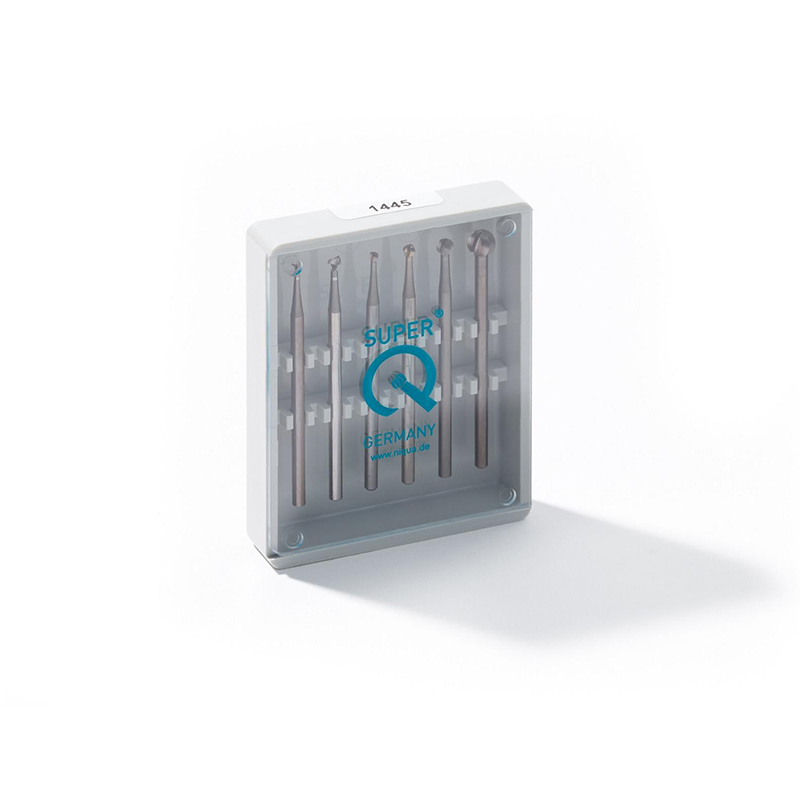

Combining two essential wax-cutting profiles—the single-spiral Helix Wax Bur “52” and the double-taper Inverted Cone Wax Bur “171C”—the Series “1445” handles both bulk hollow-clearing and delicate miniature relief work. Wide, highly polished flute gullets prevent friction-induced heat buildup, eliminating wax gumming, melting, or surface tearing on fragile pattern walls. Fitted with standardized 2.35 mm (3/32”) shanks, each bur mounts concentrically into jewelry micromotors, flexible shaft handpieces, and quick-change bench systems. The entire collection comes organized in a compact, translucent workshop storage case with dedicated shank slots for edge protection and immediate benchtop selection.
Key Features & Benefits
-
Dual-Profile Wax Geometry: Pairs single-flute helix burs (52) for aggressive channel clearing with double-taper burs (171C) for crisp undercutting and seat shaping.
-
Anti-Adhesion Chip Evacuation: Extra-wide chip gullets shave wax cleanly into curls without re-welding or sticking inside the cutting flutes.
-
Hardened High-Grade Tool Steel: Tough tool steel construction maintains sharp cutting edges and resists premature dulling throughout long modeling runs.
-
Smooth, Low-Vibration Operation: Concentric rotary balance prevents handpiece chatter, protecting ultra-thin wax prongs and fragile master patterns from snapping.
-
Protective Clear Benchtop Case: Supplied in an indexed translucent storage box that keeps bur heads separated and immediately accessible at the carving bench.
-
Standard 2.35 mm (3/32”) Shank: Precision ground for true-running concentricity across standard bench micromotors, rotary handpieces, and flexible shaft systems.
Primary Application Sectors
-
Custom Wax Master Carving & Prototype Modeling for Lost-Wax Casting
-
Undercutting & Relief Clearing in Ring Galleries, Bezels, and Mountings
-
Pre-Shaping Gemstone Seats and Prongs Directly on Wax Patterns
-
Model Making, Precision Prototyping & Sculptural Jewellery Design
Commercial Procurement & B2B Wholesale Supply
Whether supplying lost-wax casting ateliers, commercial model-making departments, or expanding your retail bench tooling inventory, we supply authentic NIQUA SUPER Q® 1445 wax bur sets with tiered volume wholesale pricing, consolidated export packaging, and reliable inventory fulfillment. Click Get a Quote to connect with our B2B commercial sales desk for customized wholesale quotes and supply terms.
