Technical Specifications
| Parameter | Technical Specification |
| Brand & Origin |
NIQUA SUPER Q® (Made in Germany) |
| Product Model / Range | Series 25 (Models 25-006 through 25-029) |
| Product Code | 03 202 006 through 03 202 029 |
| Bur Head Shape |
Wheel |
| Material Construction | Hardened Tool Steel |
| Shank Diameter | Standard 2.35 mm (3/32”) |
| Compatible Metals | Gold, Silver, Copper, Brass, Soft Precious Alloys |
| Primary Applications | Stone Seat Leveling, Surface Flattening, Edge Refining, Bearing Point Sizing |
| Rotary Equipment Compatibility | Jewelry Micromotors, Flex Shaft Systems, Rotary Handpieces |
Model & Size Dimension Matrix
| Bur Diameter (Ø mm) | Product Model | Product Code |
| Ø 0.60 mm | 25-006 | 03 202 006 |
| Ø 0.70 mm | 25-007 | 03 202 007 |
| Ø 0.80 mm | 25-008 | 03 202 008 |
| Ø 0.90 mm | 25-009 | 03 202 009 |
| Ø 1.10 mm | 25-010 | 03 202 010 |
| Ø 1.20 mm | 25-012 | 03 202 012 |
| Ø 1.30 mm | 25-013 | 03 202 013 |
| Ø 1.40 mm | 25-014 | 03 202 014 |
| Ø 1.50 mm | 25-015 | 03 202 015 |
| Ø 1.60 mm | 25-016 | 03 202 016 |
| Ø 1.70 mm | 25-017 | 03 202 017 |
| Ø 1.80 mm | 25-018 | 03 202 018 |
| Ø 2.10 mm | 25-021 | 03 202 021 |
| Ø 2.30 mm | 25-023 | 03 202 023 |
| Ø 2.50 mm | 25-025 | 03 202 025 |
| Ø 2.70 mm | 25-027 | 03 202 027 |
| Ø 2.90 mm | 25-029 | 03 202 029 |
Achieve true horizontal bearing planes, precise edge refining, and controlled surface leveling with authentic NIQUA SUPER Q® Wheel Burs Series “25”. Manufactured in Germany by NIQUA with over 125 years of specialized toolmaking heritage, this rotary wheel bur is engineered specifically for professional goldsmiths, diamond setters, and fine jewelry manufacturing workshops.

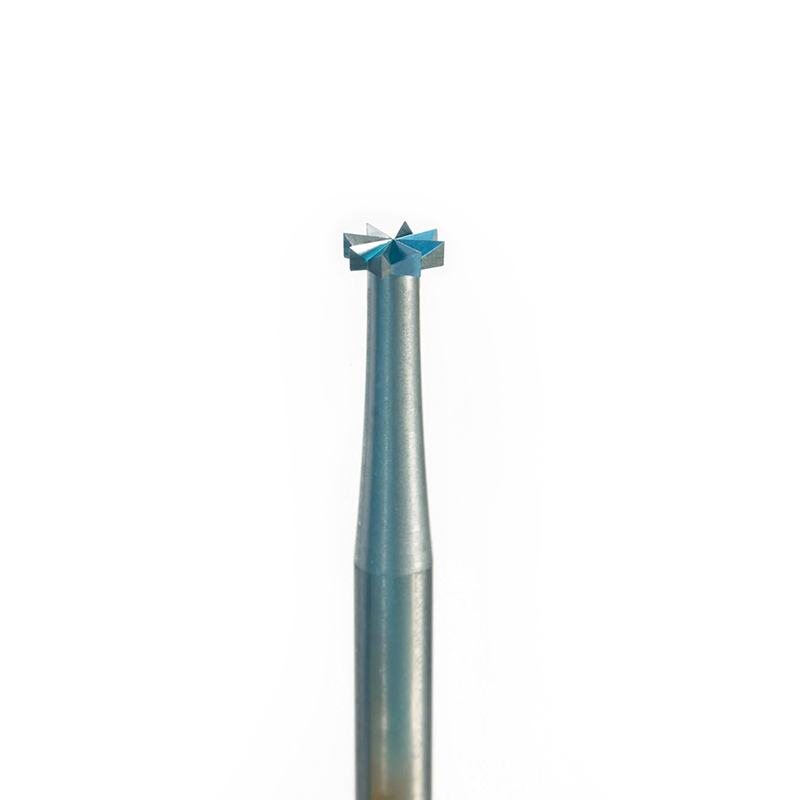

Featuring a distinct flat-topped wheel profile with radial cutting flutes, the Series “25” allows controlled material removal on planar areas, bearing shoulders, and channel walls across gold, silver, copper, and brass. The flat cutting face levels stone seats without altering surrounding collet geometry, preventing unwanted gouging. Fitted with a standard 2.35 mm (3/32”) shank, it integrates seamlessly into jewelry micromotors and flex shaft handpieces across diameters from 0.60 mm (25-006) up to 2.90 mm (25-029).
Key Features & Benefits
-
Dedicated Wheel Cutting Profile: Flat top with sharp circumferential cutting flutes creates uniform horizontal floors and crisp right-angle steps in setting seats.
-
Hardened Tool Steel Construction: Premium German tool steel delivers wear resistance, smooth rotary cutting, and long service life during daily bench use.
-
Smooth, Low-Vibration Operation: High concentric accuracy prevents tool runout and chatter marks, protecting thin bezel borders and prongs from distortion.
-
Clog-Resistant Rotary Action: Flute geometry evacuates metal chips cleanly, preventing clogging when milling softer precious metals like fine gold and silver.
-
Standard 2.35 mm (3/32”) Shank: Precision ground to fit all standard micromotor chucks, flexible shaft handpieces, and quick-change systems.
Primary Application Sectors
-
Preparing, Leveling & Sizing Stone Bearing Seats
-
Flattening Recessed Surfaces in Cast Settings & Goldsmithing
-
Defining Crisp Inner Steps in Channel & Bezel Settings
-
Precision Surface Milling on Gold, Silver, Brass & Copper
Commercial Procurement & B2B Wholesale Supply
Whether outfitting volume jewelry manufacturing benches, stone setting workshops, or expanding your retail bench tool catalog, we supply authentic German-made NIQUA SUPER Q® wheel burs with tiered wholesale pricing, consolidated export packing, and reliable inventory fulfillment across Series 25. Click Get a Quote to connect with our B2B commercial sales desk for institutional quotes and batch supply terms.
