Technical Specifications
| Parameter | Technical Specification |
| Brand & Manufacturer | Lindstrom® |
| Product Model / Number | Model #8248 (80 Series) |
| Product / Internal Code | PTBC03808 |
| Tool Type | Precision Side (Diagonal) Cutter |
| Head Shape |
Tapered and Relieved |
| Cut Style | Flush Cut |
| Overall Length | 4.61 inches / 117.1 mm |
| Cutting Capacity (Copper / Precious Wire) | Ø 0.20 mm – 0.80 mm (32 – 20 AWG) |
| Joint Construction |
Adjustable Precision Screw Joint |
| Handle Features |
ESD-Safe, Ergonomic Soft Grips |
| Return Mechanism |
Double Leaf Spring System |
Execute clean, planar micro-cuts in restricted clearances with authentic Lindstrom® 80 Series Diagonal Cutters #8248. Recognized globally as the industry benchmark for precision electronic assembly, medical device fabrication, and master goldsmithing, the 8248 model is engineered specifically for cutting ultra-fine ductile conductors and precious metal wires without leaving protruding wire pinches or distorting neighboring components.

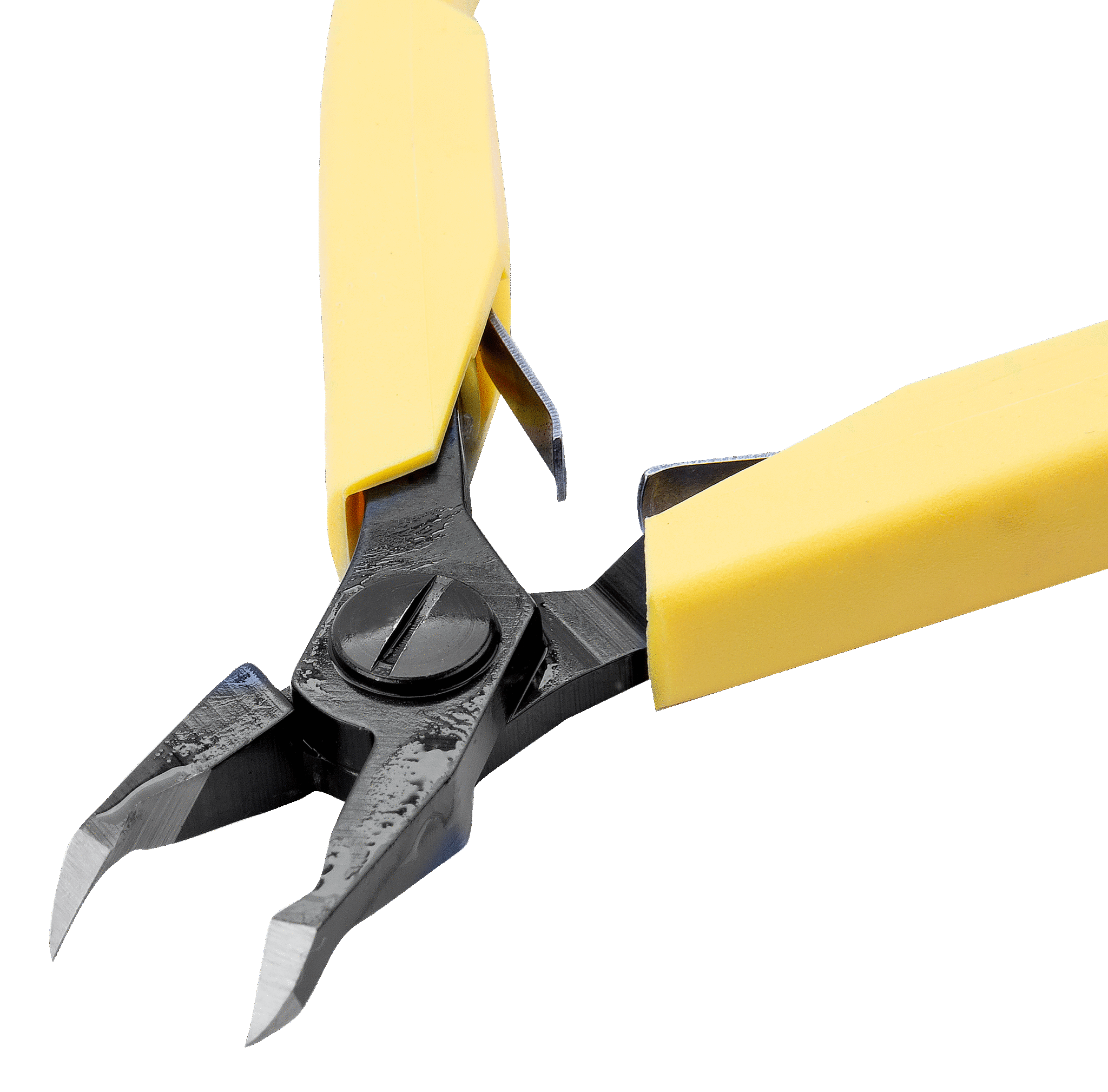

Featuring an ultra-slender tapered and relieved head profile with precision machine-ground flush cutting edges, this tool delivers direct line-of-sight access between dense PCB components, micro-electronic pins, and delicate jewelry prong bridges. Built with Lindstrom’s traditional precision screw joint, the cutting jaws maintain true axial alignment throughout millions of cycles, eliminating blade overlap, edge rubbing, and play. Equipped with ergonomic, ESD-safe dual-component dissipative handles and a smooth leaf spring return system, the #8248 ensures fatigue-free operation and sensitive tactile feedback across delicate micro-cutting ranges from Ø 0.20 mm to 0.80 mm (32 to 20 AWG).
Key Features & Benefits
-

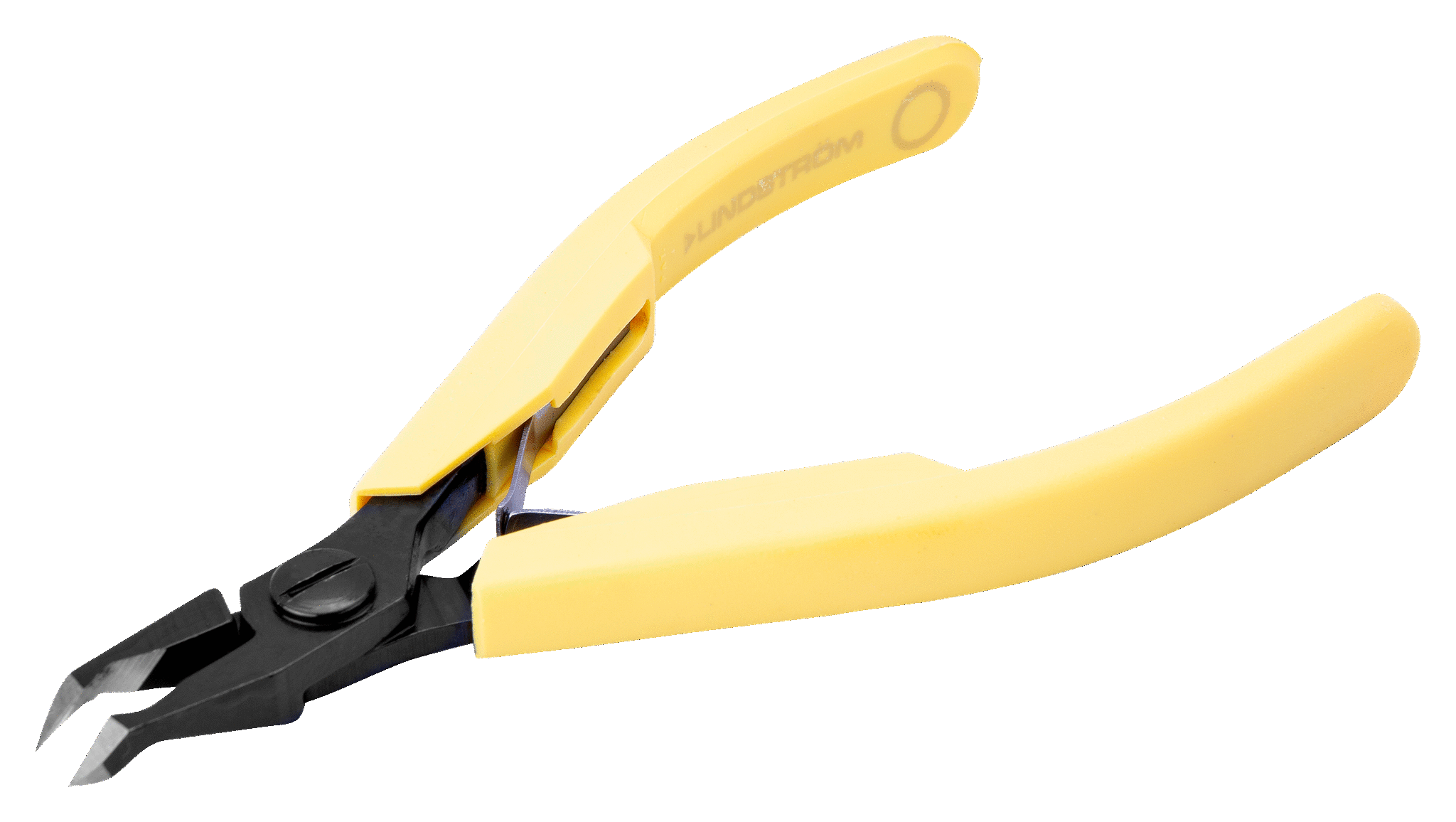

Tapered and Relieved Head Profile: Deep under-jaw reliefs and an angled profile provide maximum clearance and direct visibility in crowded work areas.
-

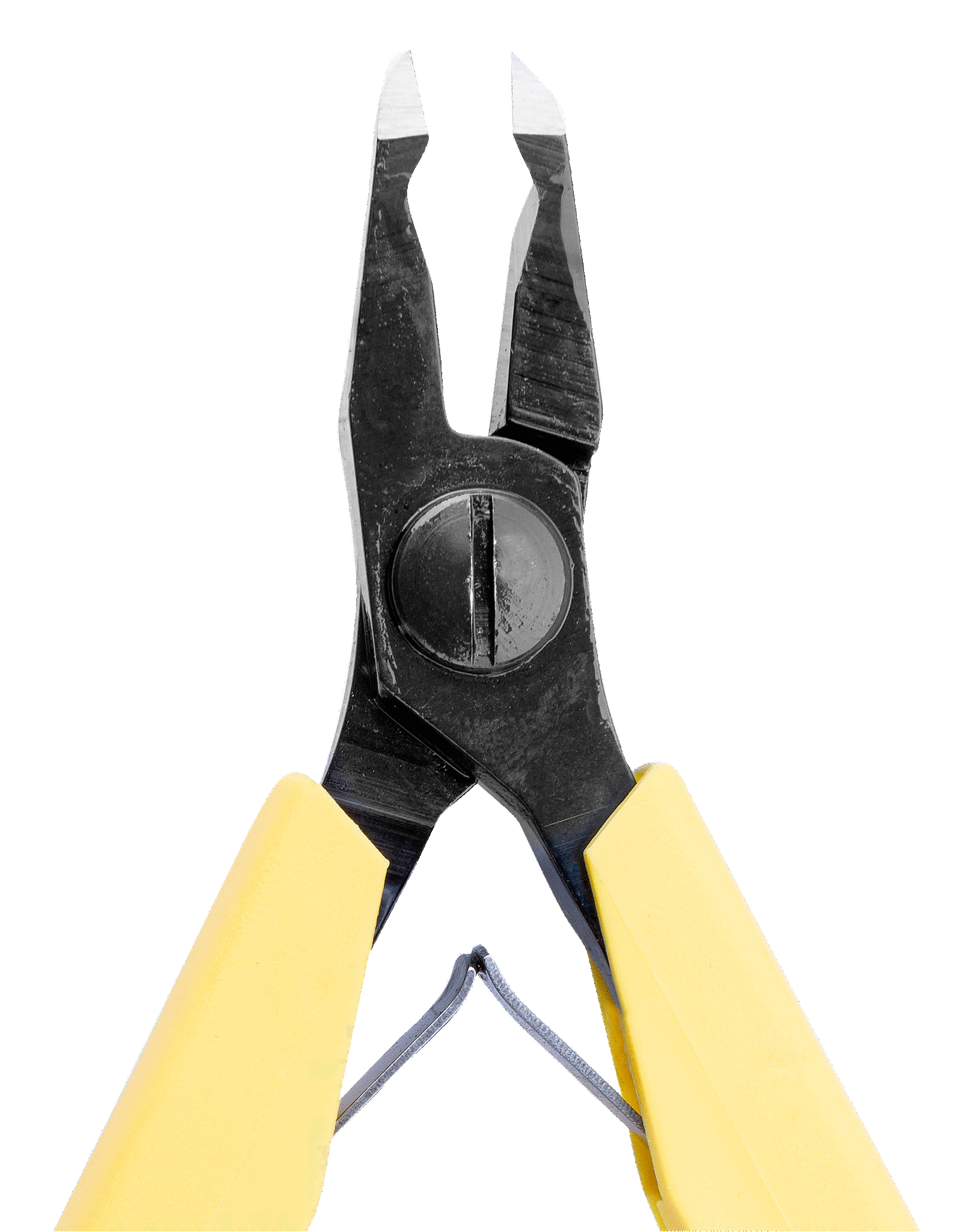

Precision Flush Cut Edges: Machine-ground cutting edges shear copper, gold, and silver cleanly, leaving a near-flat wire termination that requires no secondary filing.
-
Precision Screw Joint: Ensures smooth action and accurate jaw alignment, preventing blade crossover and preserving cutting edge sharpness.
-
ESD-Safe Dissipative Grips: Dual-component yellow handles safely dissipate static charges, protecting sensitive electronic micro-circuits and components.
-

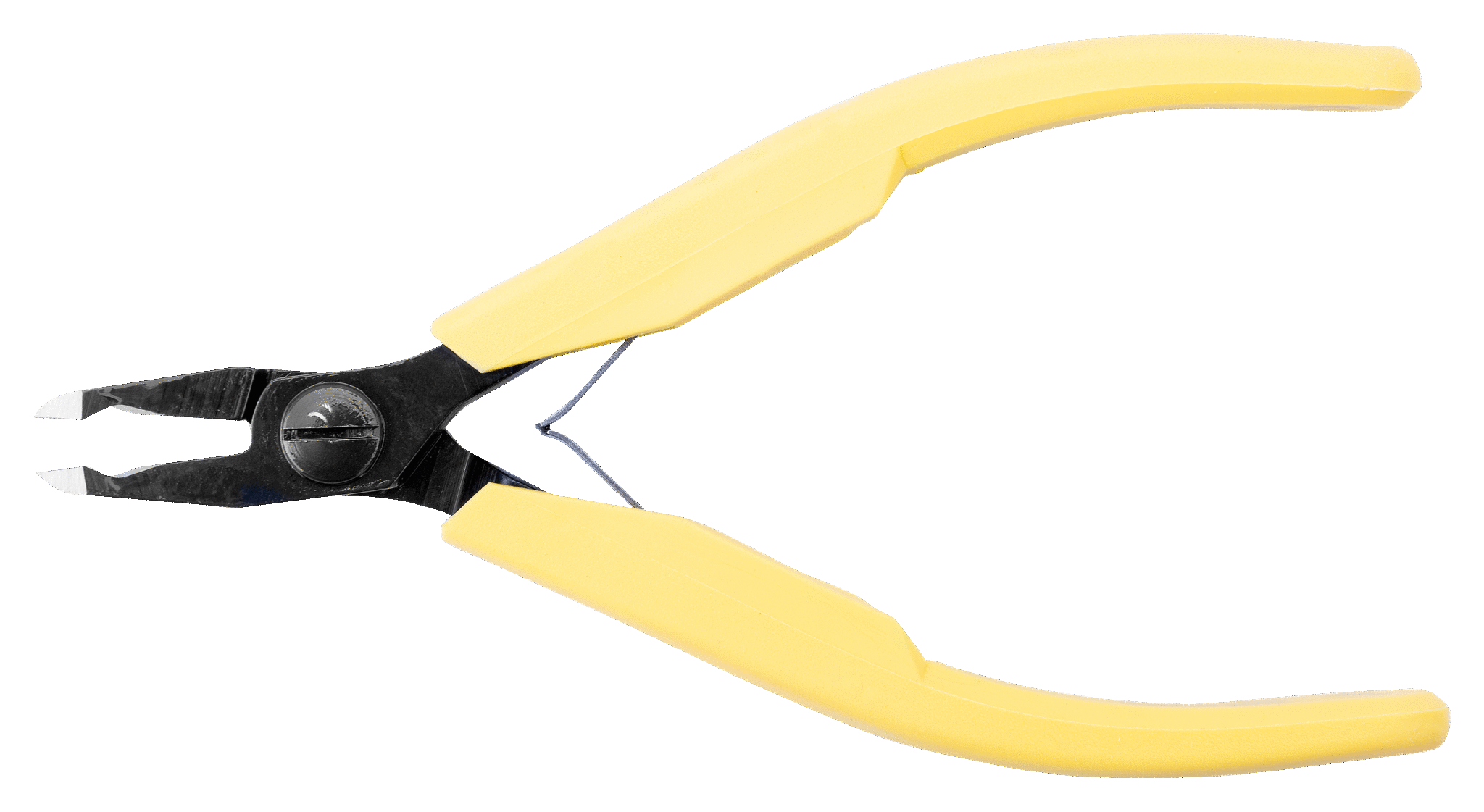

Controlled Return Spring System: Precision-tensioned leaf springs deliver smooth return action to reduce hand strain during repetitive assembly work.
-
Optimized for Micro Diameters: Calibrated specifically for fine wire diameters from 0.20 mm to 0.80 mm, preventing accidental jaw distortion on fine tasks.
Primary Application Sectors
-
High-Density Printed Circuit Board (PCB) Assembly & Surface Mount Technology (SMT)
-
Fine Jewelry Fabrication, Micro-Prong Wire Trimming & Pavé Claws
-
Medical Device Manufacturing, Catheter Assembly & Sensor Lead Termination
-
Precision Watchmaking, Micro-Mechanism Repair & Laboratory Instrumentation
Commercial Procurement & B2B Wholesale Supply
Whether equipping electronic cleanroom assembly lines, medical technology production facilities, or stocking professional goldsmithing catalog inventories, we supply authentic Lindstrom® 80 Series 8248 precision cutters with tiered B2B wholesale pricing, consolidated export packaging, and reliable replenishment schedules. Click Get a Quote to connect with our B2B commercial sales desk for bulk pricing and commercial terms.
