Technical Specifications
| Parameter | Specification Details |
| Brand / Series | JYBS |
| Product Category | Integrated Digital Video Microscope |
| Optical Zoom Scope | 15X to 194X Continuous Stepless Zoom |
| Rated Working Distance | 95 mm Physical Clearance |
| Integrated Display Hardware | 10-Inch LCD High-Resolution Screen (198mm x 144mm) |
| Screen Resolution Metrics | 1024 x 768 Pixels / 0.2535mm Lattice-Site Proportion |
| Camera Sensor Resolution | High-Sensitivity 720TVL CCD Camera |
| Base Tray Surface Area | 380mm x 260mm Heavy-Duty Platform |
| Data Transfer Interface | USB 2.0 PC Access Terminal |

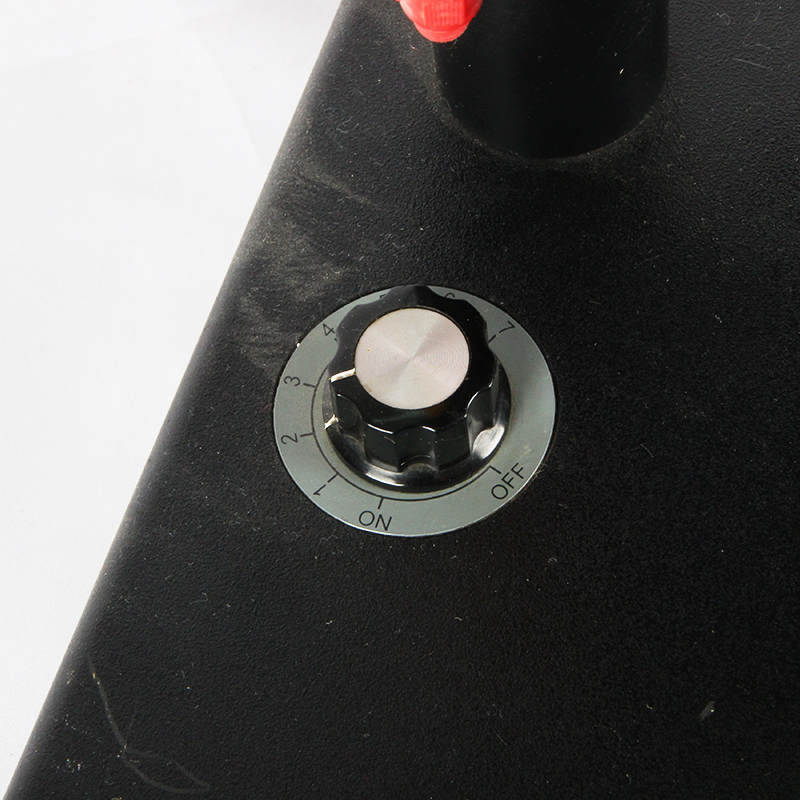

| Illumination Infrastructure | High-Intensity Adjustable Upper Spot Light |
| Total Hardware Mass | Approximately 6 kg |

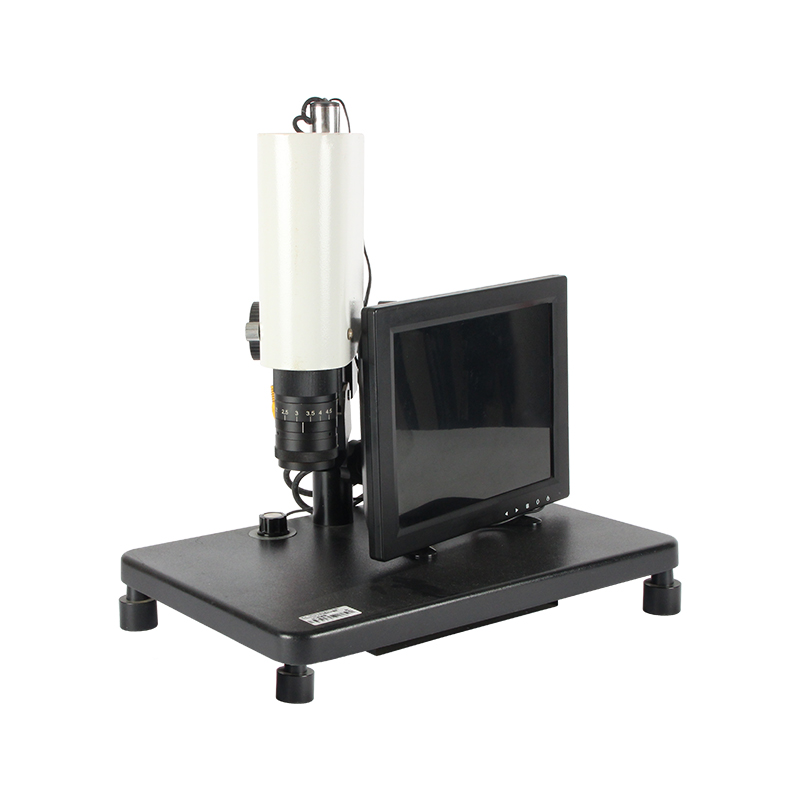

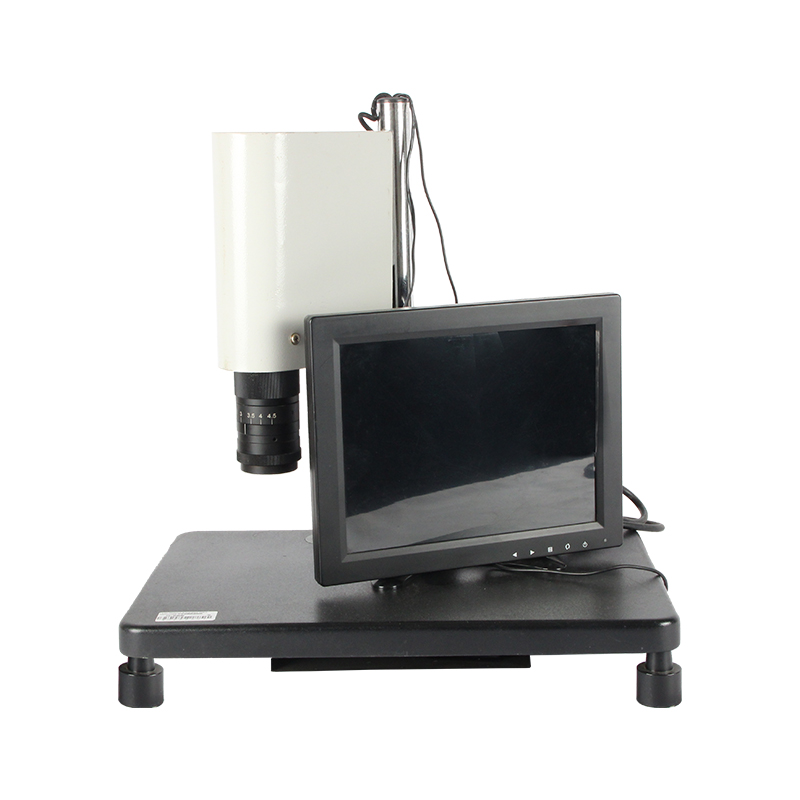

Optimize your component assembly precision, streamline high-frequency circuit repairs, and eliminate operator eye strain with the premium JYBS Large Platform Integrated Video Microscope. Designed specifically for the daily, detailed work of electronics technicians, custom jewelers, and precision instrument repair specialists, this all-in-one digital workstation replaces traditional optical eyepieces with a crisp, 10-inch high-resolution display. Combining an advanced CCD camera sensor with a continuous 15X–194X step-less zoom lens, this system captures microscopic features and instantly transforms them into a bright, true-color digital picture directly on the integrated screen, ensuring perfect visual tracking over long working hours.
Key Features & Benefits
-
Lowers Worker Fatigue via a 10-Inch HD Digital Screen: Peering into traditional dual eyepieces for hours causes neck strain, headaches, and physical fatigue. This integrated 1024×768 pixel display lets you sit back comfortably, delivering sharp, colorful real-time object tracking that drastically improves bench working conditions.
-

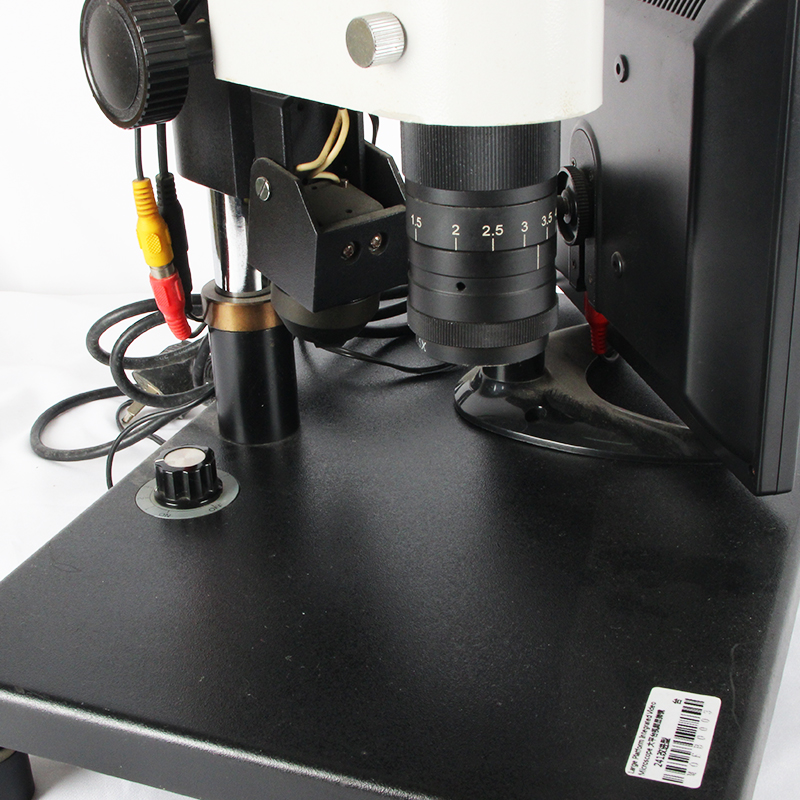

Provides Smooth 15X–194X Stepless Magnification: Jumping between low-magnification overviews and high-magnification close-ups on complex micro-assemblies can cause you to lose your orientation. The high-performance optical barrel supports an unbroken, step-less zoom range from 15X up to 194X, allowing you to smoothly dial in the exact target scale needed to inspect fine solder joints or hidden micro-cracks.
-
Supports Comprehensive Image Grabbing via USB Terminal: Documenting component errors or sharing specific defect pictures with customers typically requires bulky external camera attachments. This system features an integrated USB 2.0 interface, allowing you to connect directly to a computer to grab, save, print, or photograph high-resolution digital media effortlessly.
-
Features an Expanded 380×260mm Heavy-Duty Base Stage: Tiny inspection platforms cramp your workspace, leaving no room to manipulate tools or navigate wider substrates. This system is engineered with an expansive 380mm x 260mm base tray, providing a stable, spacious platform that is perfectly suited for hands-on soldering, assembly routing, or jewelry layout tracking.
Commercial Sourcing & Bulk Distribution
As an established wholesale supplier of professional benchtop microscopes and commercial inspection tools, we specialize in supporting electronic repair networks, independent jewelry design studios, technical trading firms, and vocational training schools. We are fully equipped to manage volume procurement, fulfill contract supply lines, and standardize workshop layouts seamlessly.
Our facility secures your technical integration through competitive factory-direct pricing architectures, flexible tier-discount structures, and dependable global freight logistics to ensure your equipment upgrades remain perfectly optimized. For detailed wholesale pricing sheets, volume distribution contracts, or custom multi-unit supply inquiries, please contact our corporate team directly.
