Technical Specifications
| Technical Specification | Parameter Details |
| Magnification Range | 10x–230x |
| Focal Distance | 0 mm to 50 mm |
| Camera Sensor Type | High-Quality CMOS |
| Video Resolution | 1080P (1920×1080), 720P (1280×720), VGA (640×480) |
| Video Compression Format | H.264 |
| Image Resolution | 12M, 8M, 5M, 3M |
| Image Output Format | JPG |
| Wireless Connectivity | Wi-Fi (802.11 b/g/n) |
| Wireless Transmission Range | Up to 20 m (Open Line of Sight) |
| Wireless Transmission Rate | 150 Mbps |
| Dual Power Supply |
1) Built-in Rechargeable Li-ion Battery 2) DC 5V/1A (Mini USB Interface) |
| Battery Runtime | Approx. 100 minutes |
| Battery Charging Time | Approx. 90 minutes |
| Measurement Function | Supported via PC (USB connection) |
| Operating Temperature | 0°C to 55°C |
| Illumination | 6 LEDs with Adjustable Brightness Control |
| OS Compatibility | iOS (5.1 or later), Android, Windows XP (SP2)/7/8/10 |
Optimize localized surface auditing, micro-welding analysis, and field research data logging with the premium JYBS Hand-Held Digital Microscope with WiFi. Engineered to fulfill strict quality control parameters across electronics assembly tracks, material diagnostic labs, and dynamic field sorting stations, this high-performance inspection system bridges the gap between microscopic details and mobile data networks. Combining a crisp 1080P H.264 video engine, an independent 20-meter WiFi transmission module, and an integrated rechargeable lithium core, the device delivers fluid, live-streamed microscopic analytics directly to iOS, Android, and PC screens.
Key Features & Benefits
-

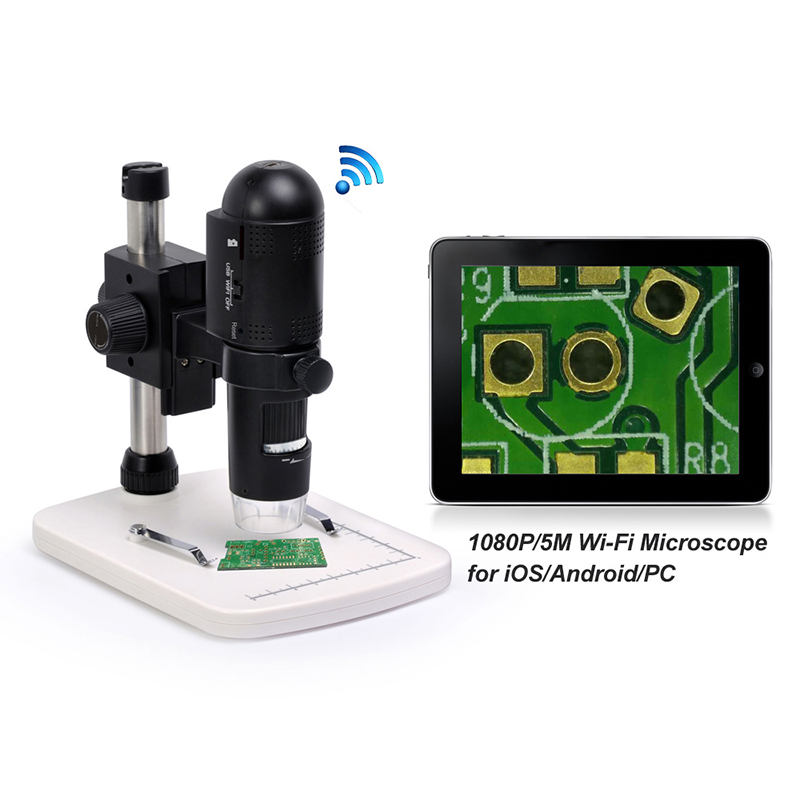

Renders 1080P Wireless Live Streaming via H.264 Coding: Standard corded digital inspection equipment forces operators to stay anchored to fixed computer towers, restricting sorting agility. This smart system streams high-definition 1920×1080 video over a wireless 150Mbps WiFi link, letting quality control teams audit materials collaboratively on mobile devices from up to 20 meters away.
-
Features Multi-Platform Integration with PC Measurement Software: Field validation teams handle diverse operational pipelines requiring different documentation workflows. While supporting standalone mobile scanning on smart tablets, this unit connects to Windows PCs via USB to open specialized measurement software, mapping out critical object structures accurately.
-
Isolates Fine Surface Textures via 10X-230X Continuous Focus: Tracking flaws across variable specimen shapes like circuit traces, currencies, or textile weaves requires versatile focal paths. The adjustable manual focus block dials from 0mm out to a 50mm clearance depth, providing continuous magnification tiers scaled up to 230X power.
-
Powering Independent Field Sourcing with a Lithium Battery: Relying on raw AC wall power restricts inspection capabilities during mobile sourcing trips or off-grid field operations. This portable 1080P microscope is built with an integrated rechargeable lithium core providing 100 minutes of continuous standalone runtime, refreshing completely via a standard DC 5V mini-USB terminal.
