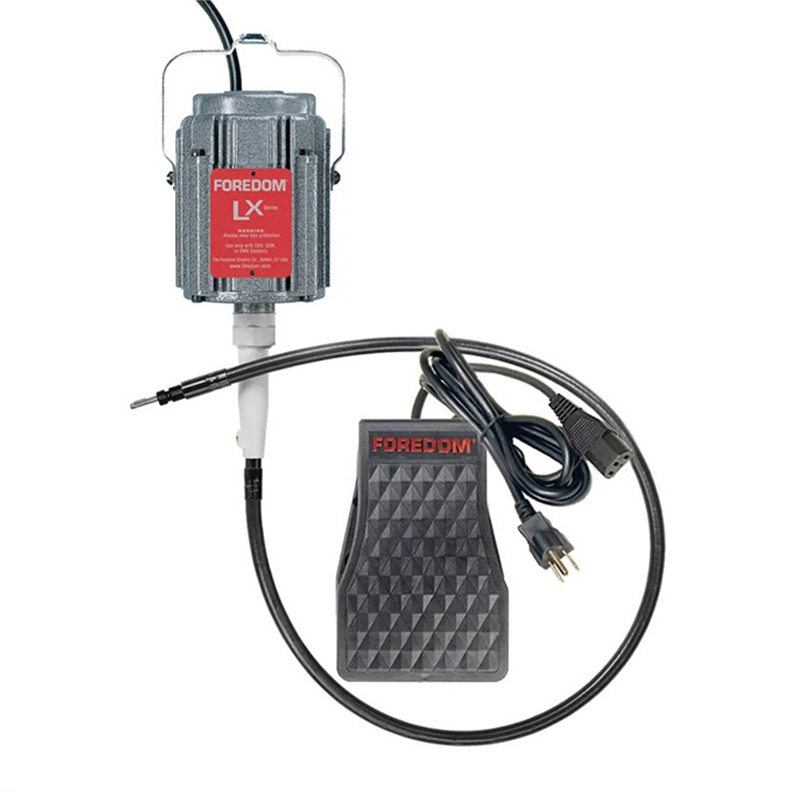

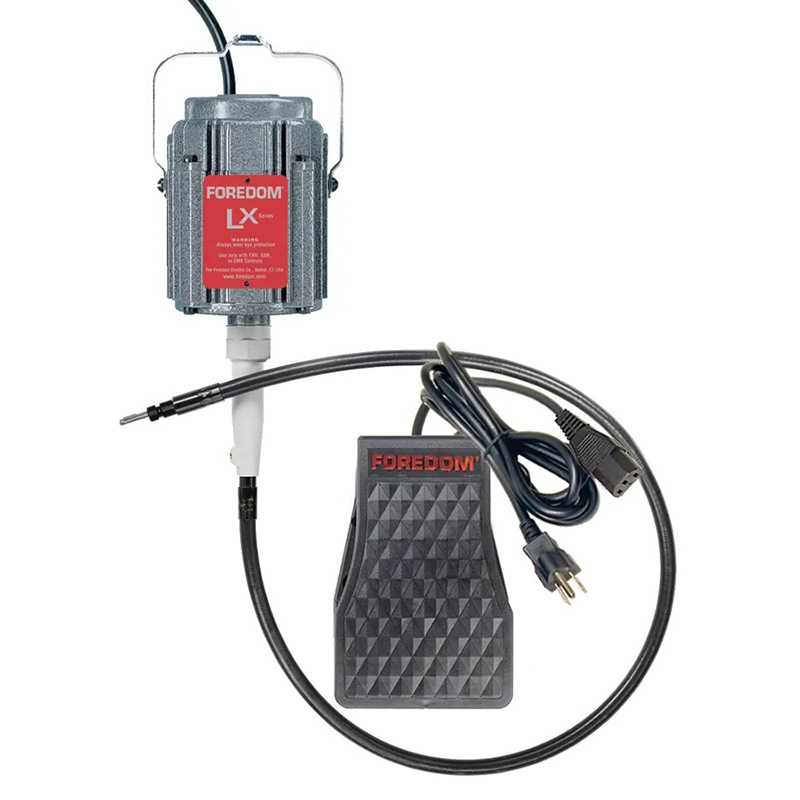

M.LX-TXR Hang-Up Motor with Foot Control – key tip shafting. Handpiece sold separately.
M.LX Motor: These permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling.
Specification
|
Model
|
M.LX-TXR-22
|
|
Brand
|
Foredom®
|
|
Country of Manufacture
|
United States of America
|
|
Voltage
|
230V
|
|
Power Plug
|
Continental Europe Plug
|
|
Dimensions
|
19 × 12.25 × 4.5 in
|
|
Weight
|
8.5 lbs
|
Foredom’s permanent magnet motors require the use of a TXR-1, SXR-1, or EMX-1 speed control. These controls have the same housing as other Foredom speed controls but they convert AC current from an electrical outlet to DC current required by Series LX motors. These controls have a different style plug that is made to fit the motor’s shielded-type plug. Damage will result if the motor is connected to any other speed control.
M.LX-TXR has: C.TXR-1 Speed Control foot operated variable speed control is made of heavy duty plastic with durable electronics. The ergonomics allow precise and reliable speed control with your foot. For use with 115 Volt M.TX, M.TXB, M.TXH, M.LX, M.LXB, M.LXH and M.LXBH motors. 7″ long, 4-12″ wide, 2-38″ high, ship wt 2 lbs./1 kg.
