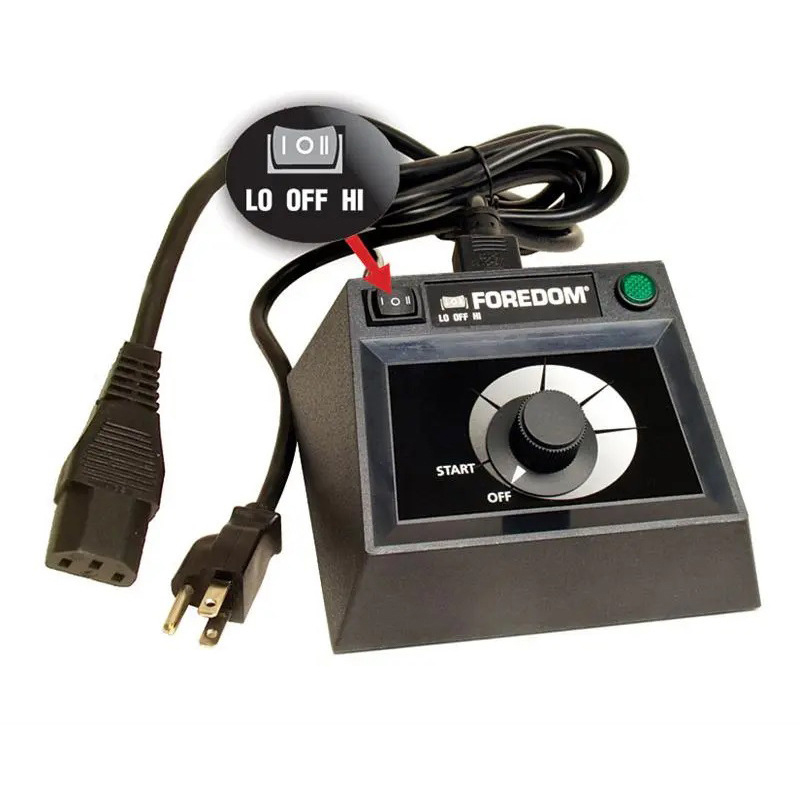

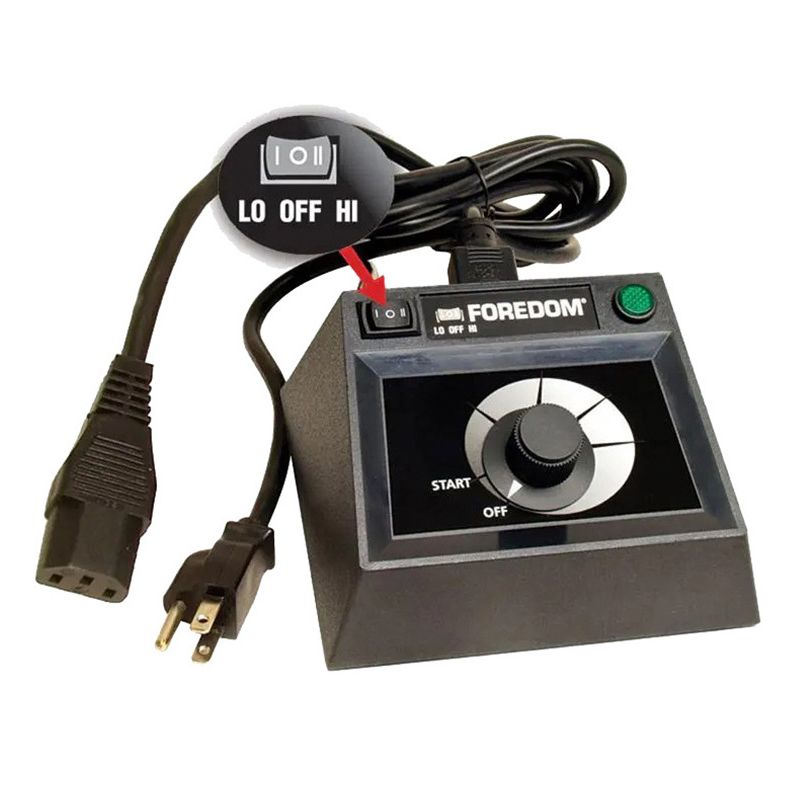

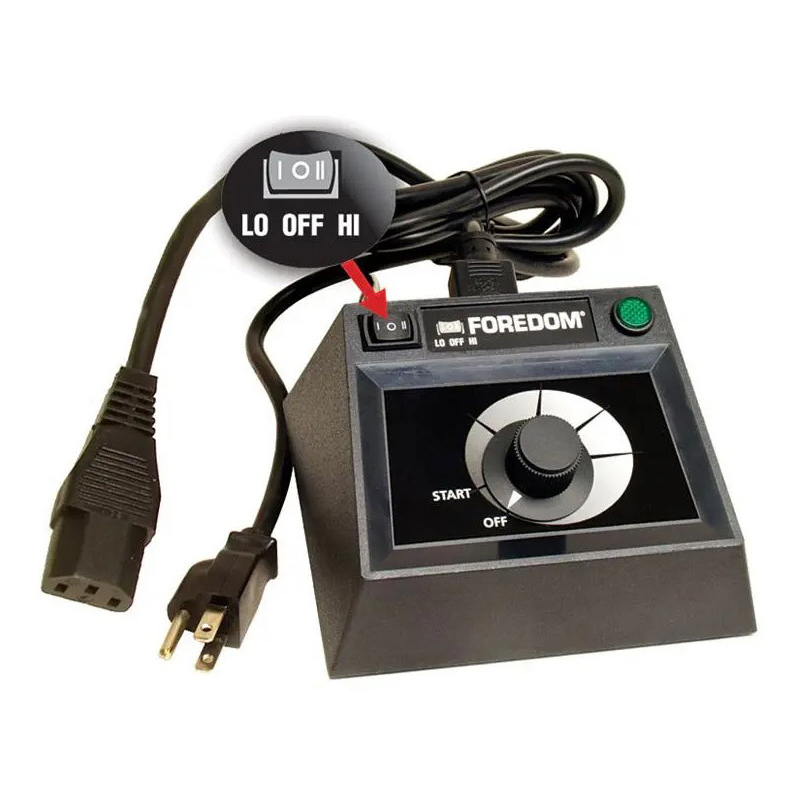

C.EMHF-2 Table Top Control, Dual Speed Range for 230 Volt International Series SR Motors
Dual speed range table top dial control for 230V Series SR motors. Has ‘LO’ and ‘HI’ settings that either restrict speed or permit complete range of motor speed.
New Dual Speed Range table top speed control was designed for use with the reciprocating (not rotary) Foredom Filer. Set to ‘LO’, motor speed is restricted to between 1,000 – 10,000 RPM or 400 – 4,000 SPM – the Filer’s allowable speed range. Flipping the toggle switch to ‘HI’ permits use with rotary handpieces at regular motor speeds.
This control is also ideal for use with the reciprocating H.50 and H.50C Chisel Handpieces that have low recommended operating speeds of 1,000 – 8,000 RPM.
For use with 230 Volt M.SR, M.SRB, M.SRH and M.SRBH motors.
Can also be used with these 230 Volt Discontinued Motors: Series CC and DD, Series L and LB, Series F, Series PG and 1/8 Horsepower Series S, SB, SR and SRB motors.
Specification
|
Model
|
C.EMHF-22
|
|
Brand
|
Foredom®
|
|
Country of Manufacture
|
United States of America
|
|
Size
|
5″ long, 5-7/8″ wide, 2-3/4″ high
|
|
Weight
|
3.5 lb/1.6 kg
|
|
Voltage
|
230V, Continental Europe plug
|
