* Main Parameter: Roller width: 110 mm (4.33 inch),Roller diameter: 55 mm (2.17 inch),Maximum opening: 0-5 mm (0-0.2 inch),Flat area (+/- 0.01mm): 57 mm (2.24 inch),Square wire(+/- 0.01mm): 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0,Ring shank – half round ellipse(mm): 2.5×1, 3×1.25, 4×1.5,Produce metal foil as thin as .001 inch.
* Efficient Design: Reduction gear ratio of 4:1 allows the rollers to make one complete turn for every four turns of the rolling mill handle. This relieves the amount of force needed to operate the rolling mill.
* Easy to Use: With forged handle, simple and convenient to use. Easily mounts the rolling mill to your workbench using the mounting holes.
* Build to Last: The rolling mill has a reasonable structure, long life span, perfect workmanship and the simplicity of operation.Rolls made from stainless alloy that offers good wear resistance.
* Application: The combination rolling mills are ideal for jewelers and crafts-people. Rolling Mills are designed for cold rolling metal to produce thinner gauges of sheet metal and wire, transferring textures to your metal and to make the thickness uniform.
|

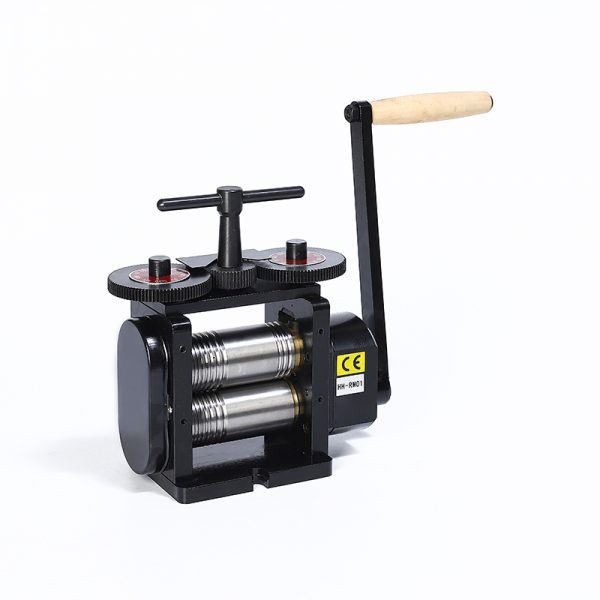

Product name
|
Rolling mill 110MM Combination
|
|||
|
Gear Ratio
|
4:1
|
|||
|
Roller Width
|
110MM
|
|||
|
Roller Diameter
|
55MM
|
|||
|
Maximum Opening
|
4MM
|
|||
|
Flat Area
|
53MM
|
|||
|
Square Wire(+/-0.01mm)
|
1.0,2.0,2.5,3.0,4.0,4.5,5.0
|
|||
|
Ring shank-half round ellipsis
|
2.5*1,3*1.25,4*1.5MM
|
|||
|
Dimension
|
23*13.5*28CM
|
|||
|
Shipping Dimension
|
33*33*20CM
|
|||
|
Shipping Weight
|
18.5KG
|
|||
