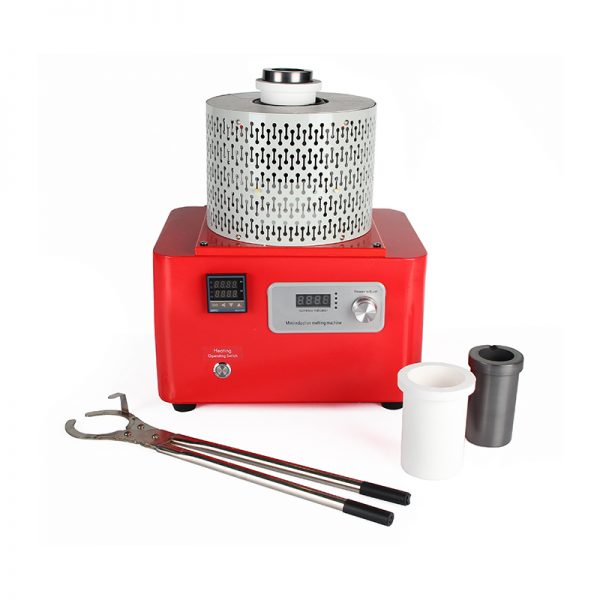

220V desktop jewelry induction melting furnace with crucible and tongs for quick melting of gold and other metals

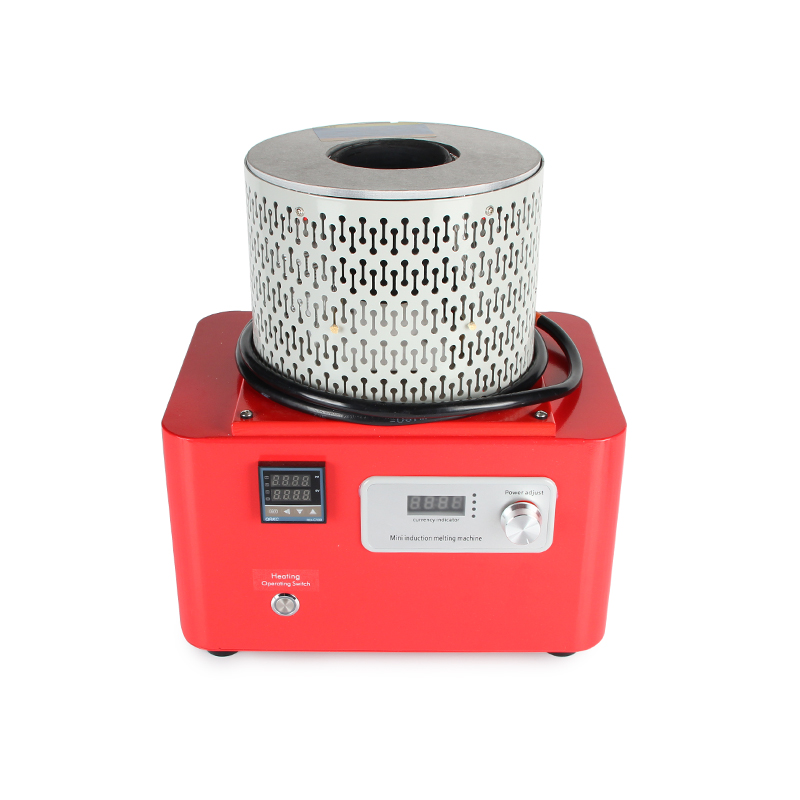

Front view of a mini induction melting machine, showing the digital control panel and power knob

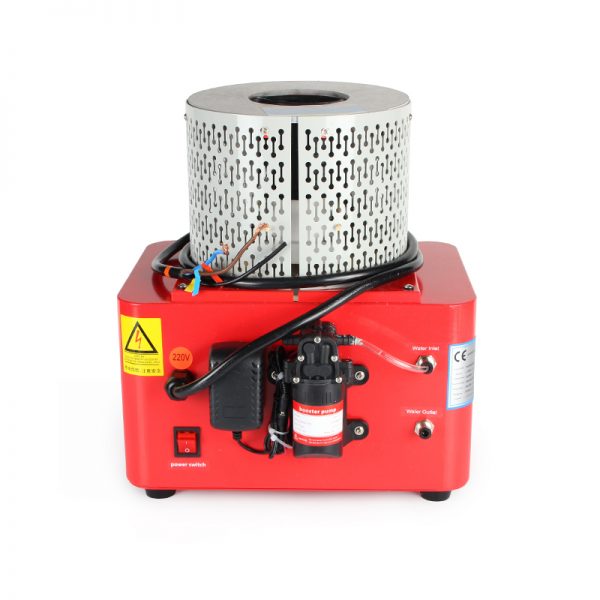

Rear view of the melting furnace, showing the water pump, water pipe connections, 220V socket, and power switch

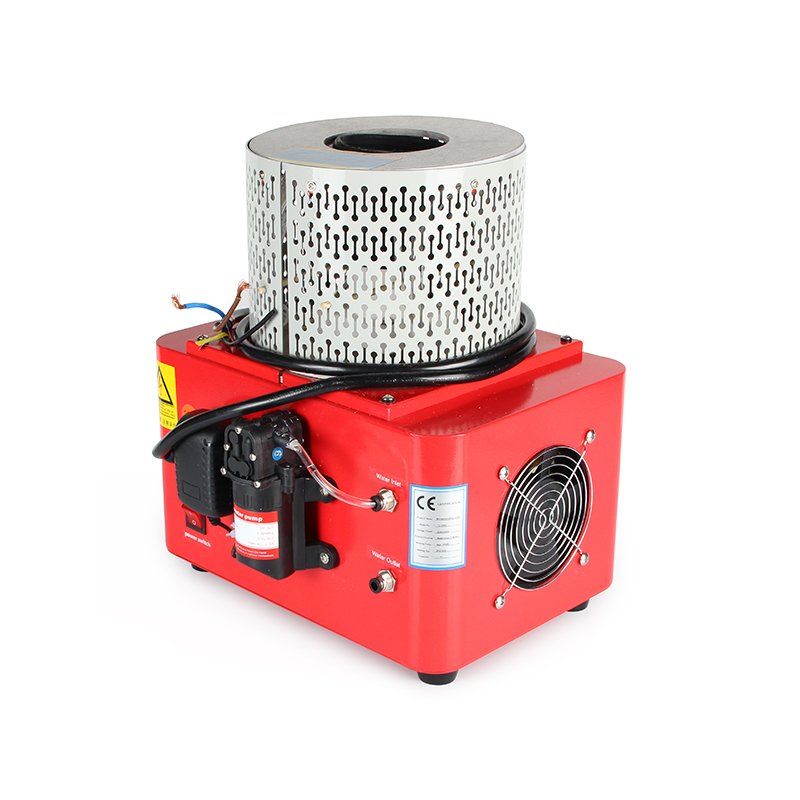

Rear-side view of the jewelry induction melting furnace, with a built-in cooling fan, water pump, and water connections

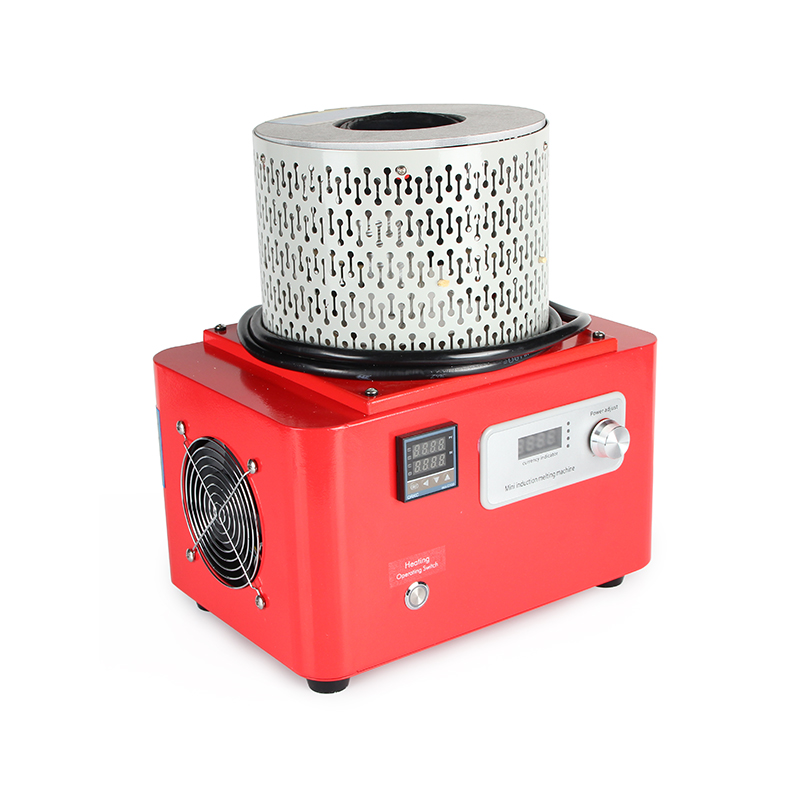

Side view of the mini induction melting machine, clearly showing the control panel, cooling fan, and power switch

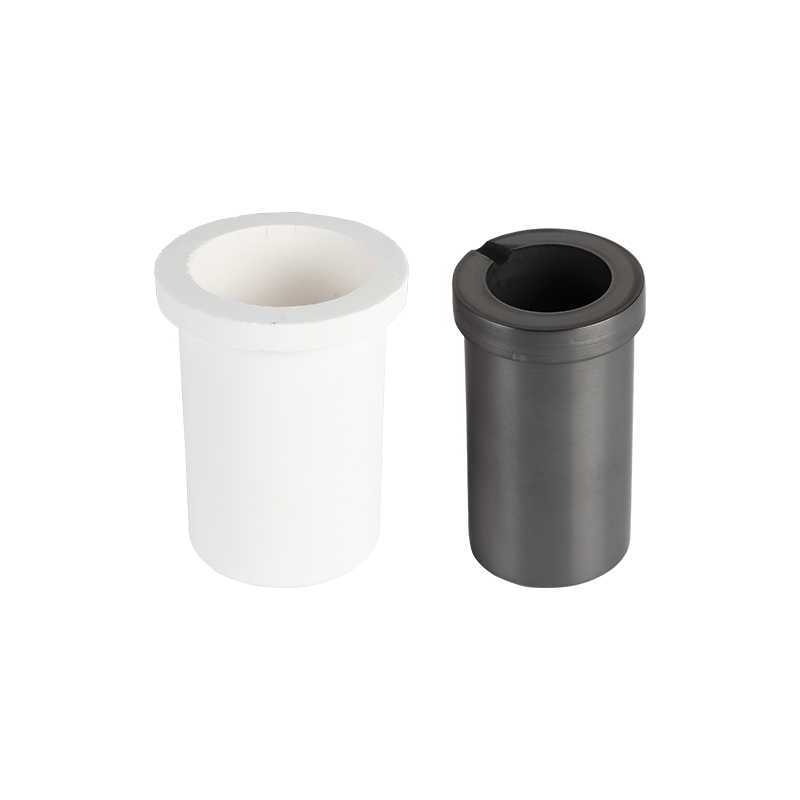

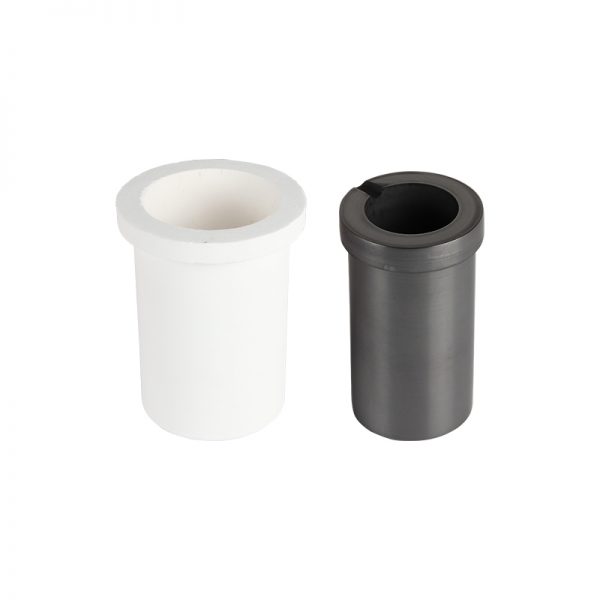

A close-up of two crucibles: a white ceramic and a black graphite one, used for melting different metals

220V Desktop Jewelry Melting & Casting Furnace – JYBS

Brand Name: MNF

Place of Origin: China

Model Number: CTHH00823 – CTHH00825

Material: Stainless Steel

Application: Jewelry Casting

Use: For Necklace Making, For Bracelet Making, For Earring Making, For Ring Making

$1,363.63

Get Wholesale Price
Category
Product name
MINI Induction Melting Furnace IGBT technology
Heating Type
Induction (Medium Frequency)
Model
1kg 58*84mm
2kg 68*110mm
3kg 85*103mm
Voltage
220V
Metal Suitable
Gold, Sliver, Copper, etc
Frequency
50Hz-60Hz
Working Time
Continuous 24 Hours
Leakage circuit breaker
Over 25A
Melting Speed
5Mins for 1kg gold. sliver, copper
Cross-sectional area of wire minimum
2.5mm²
Application
Refining Precious Metal
Power
5000W
Cooling type
Water cooling
Capacity
1KG/2KG/3Kg
Accessories
Water Pump/Chiller
Dimension(L*W*H)
315*295*350(mm)
Water Cycle
0.7L/Minute
Net Weight
9Kg
Maximum Temp
1200℃ (2200F)
Warranty
Machine warranty for 1 Year
Core Component
IGBT

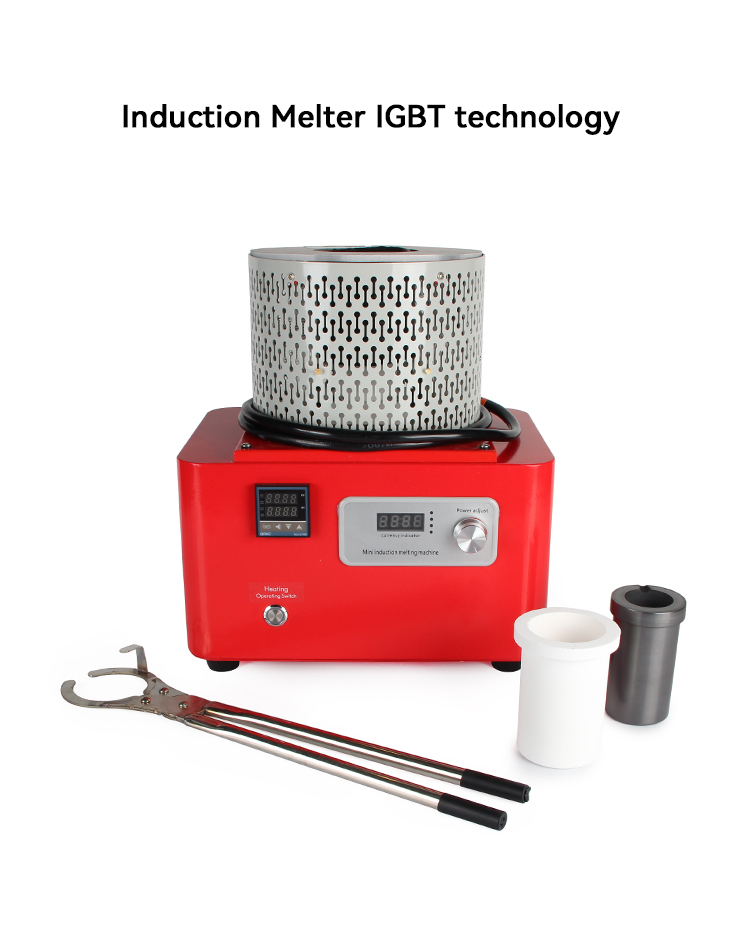

A 220V desktop jewelry induction melting furnace with IGBT technology, a crucible, and tongs

Mini Induction Melting Furnace

The machine adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach the max temperature 1200℃ Used for refining precious metals (gold, silver, copper, aluminum or iron or stainless steel etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.

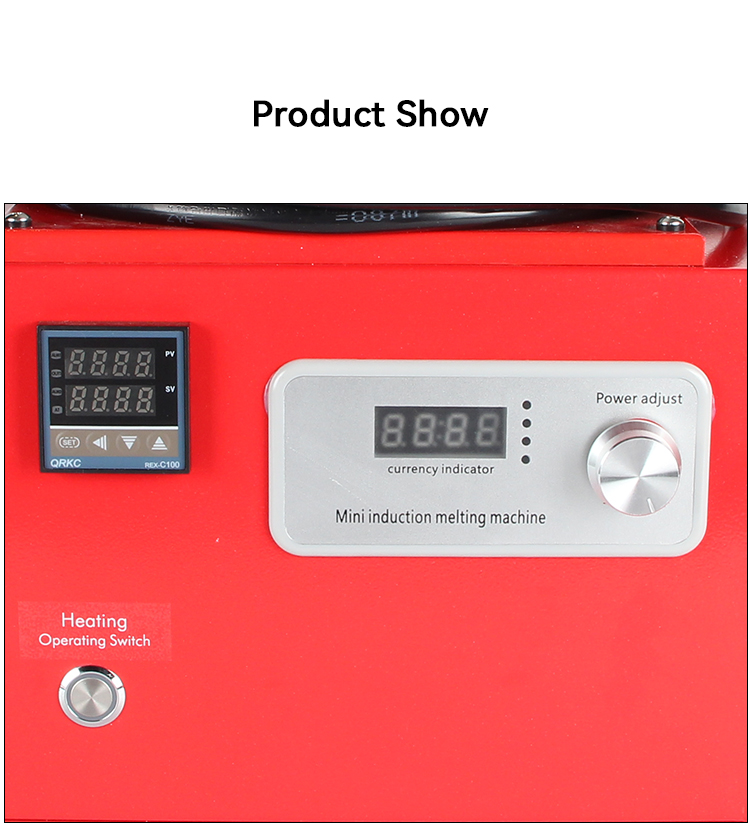

A close-up of the mini induction melting machine's control panel, showing the digital displays and power knob

A detailed view of the furnace's back, featuring the booster pump, water inlet, outlet, and power switch

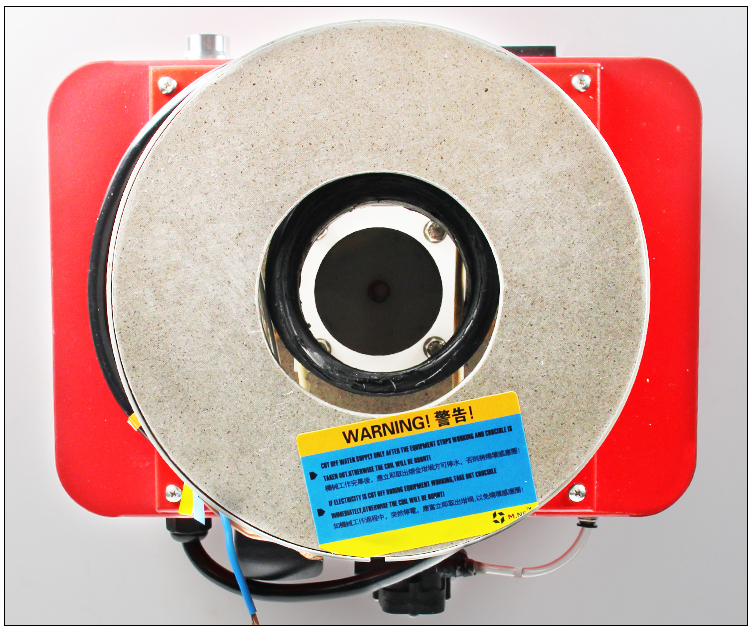

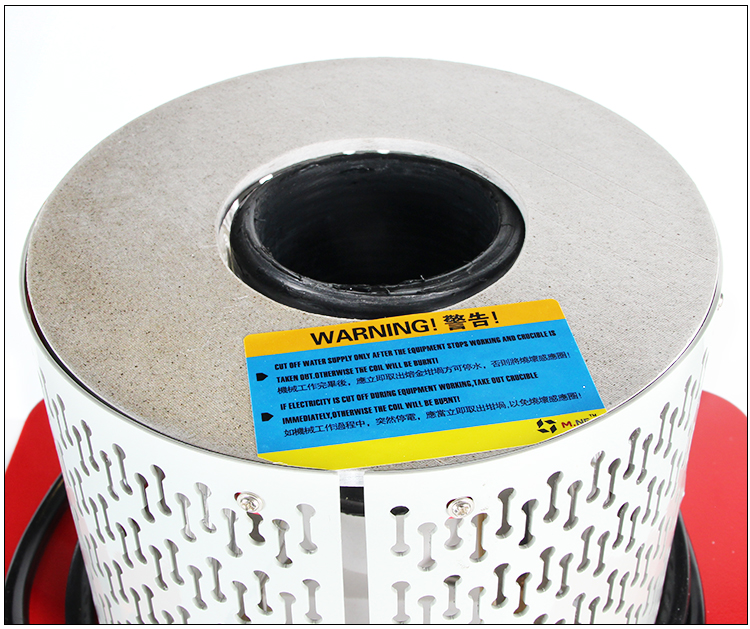

A close-up shot of the induction heating coil and crucible area with a prominent safety warning label A top-down view of the induction melting furnace, highlighting the heating area and a warning label
